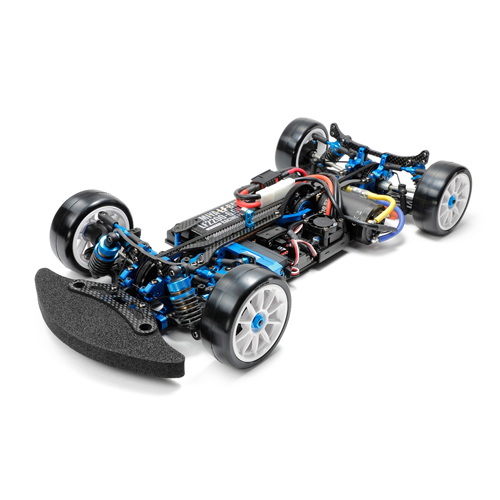

TRF420X Chassis Kit

More Images Click

Car Kits > 1/10 Onroad

Maker:

Tamiya

Part Number:

42382

Our Price:

~~$1,414.00~~ 30% off (Save $424.20)
$989.80

Quantity:

Coming Soon !!
Free Shipping !!

Description

Tamiya's R/C designers never rest. They are constantly looking to bring our most hardcore racing fans the very best features that are able to be squeezed into a touring car chassis! Say hello to the TRF420X. The highest end touring car chassis we make, just got better!

- 1/10 scale R/C chassis assembly kit.

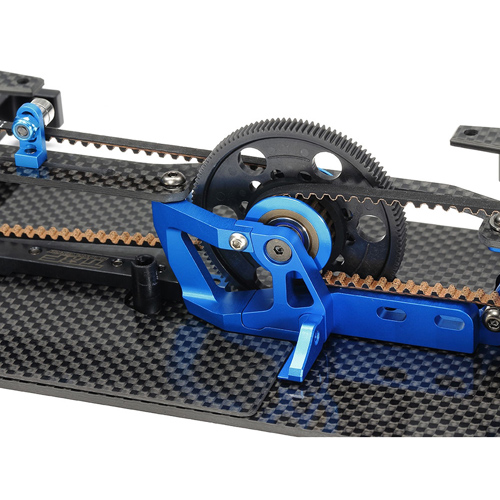

- The drivetrain features the spur gear positioned toward the chassis center for stable drivability. (The motor position is not changed from the TRF420.) Front and rear drive belts are based on the TA08 PRO chassis kit (Item 58693).

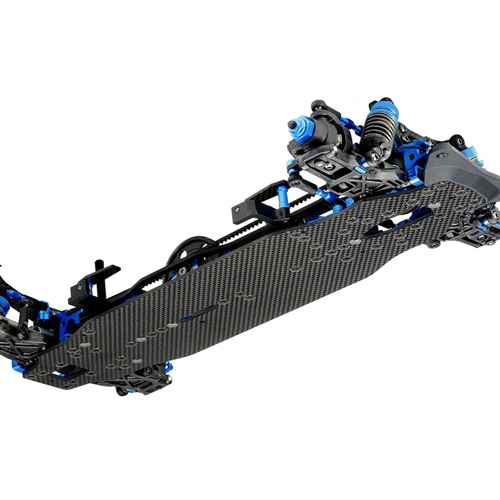

- Choose from two types of lower deck (carbon fiber and aluminum).

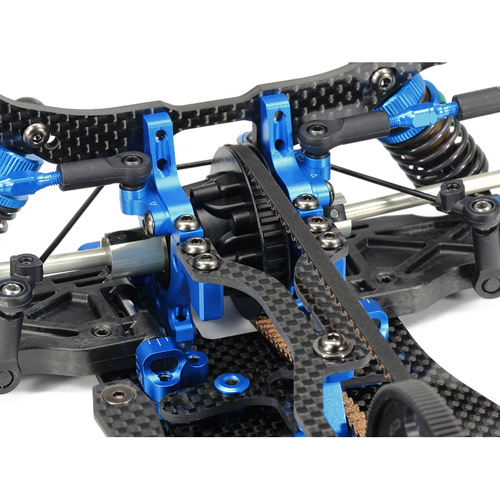

- Changing screw positions fixing the upper deck allows adjustment of chassis rigidity (at least 6 different setups).

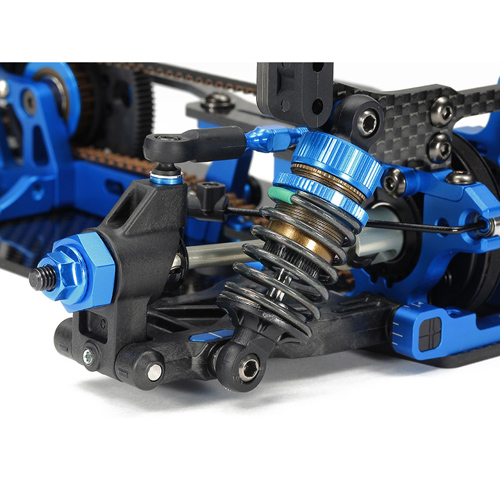

- Features the trustworthy 4-wheel independent double wishbone suspension from the TRF420, and high- precision, durable sealed ball bearings of the TRF series as kit-standard.

- Includes new-size 43mm rear drive shafts for different setups in conjunction with suspension mount, new front and rear bulkheads for precise assembly and various kinds of setup, and urethane bumpers.

- Damper stays are designed to allow some flex, for high traction and a boost to drivability.

- The floating R/C deck helps facilitate chassis flex, and ensures efficient maintenance.

- The quick-plate type battery pack does not require tape for attachment. Depending on the battery pack equipped, change positions of spacers and posts.

- Comes with a carrying case dedicated for the TRF420X chassis.

- Requires: 2-channel radio, low profile servo, ESC, 7.2-7.4volt racing battery pack, motor, 190mm touring car body, and tires.

More Images

Click image to Enlarge(+)

Parts List

Sort By Category New Items Maker

In-Stock Items Only


	$7.25		Tamiya ( 42143 ) 4mm Alum Serrated Wheel Nut - 4pcs Blue

	~~$25.00~~ $20.00		Tamiya ( 53570 ) Clamp Type Alum Wheel Hub (4mm)

	$10.00		Tamiya ( 42229 ) 04 Module Pinion Gear (30T) - Hard Coated Aluminum

	$8.50		Tamiya ( 51557 ) TRF418 Spur Gear (116T)

	$4.60		Tamiya ( 51648 ) Gear Diff Unit Gasket TRF420/TRF419/TA07 (4Pcs)

	~~$37.00~~ $29.60		Tamiya ( 51649 ) TRF420 Gear Diff Unit Set

	$6.75		Tamiya ( 54657 ) Silicone Oil #3000

	$6.00		Tamiya ( 9804243 ) 630 Ball Bearing: 49378 2pcs - ABC Grid Steering Bearing 3x6mm

	$22.99		Tamiya ( 9808022 ) 730 Ball Bearing 3x7

	$10.00		Tamiya ( 42365 ) 1510 Sealed Ball Bearings - 2pcs

	$9.25		Tamiya ( 42366 ) 1050 Sealed Ball Bearings - 2pcs (5x10x4)

	$10.00		Tamiya ( 42367 ) 950 Sealed Ball Bearings - 2pcs Flanged

	$8.75		Tamiya ( 42368 ) 850 Sealed Ball Bearings - 2pcs

	$9.99		Tamiya ( 94392 ) 850 Ball Bearing

	~~$129.00~~ $90.30		Tamiya ( 3404132 ) Lower Deck: 42382 Carbon TRF420X

	~~$41.00~~ $32.80		Tamiya ( 3404133 ) Upper Deck: 42382 TRF420X

	$15.99		Tamiya ( 3404134 ) Front Damper Stay: 42382 TRF420X

	~~$21.00~~ $16.80		Tamiya ( 3404135 ) Rear Damper Stay: 42382 TRF420X

	$3.99		Tamiya ( 3450752 ) Steering Post: 42326 - Black

	~~$28.00~~ $22.40		Tamiya ( 3451241 ) Center Drive Pulley: 42345 20T Blue

	$7.75		Tamiya ( 3451355 ) Center Shaft: 58693

	$11.00		Tamiya ( 3451402 ) Upper Arm Mount A: 42382

	$11.00		Tamiya ( 3451403 ) Upper Arm Mount B: 42382

	$7.00		Tamiya ( 3451406 ) Upper Deck Holder: 42382 Blue

	$5.50		Tamiya ( 6274028 ) Urethane Bumper: 42345

	~~$126.00~~ $88.20		Tamiya ( 9406274 ) Lower Deck: 42382 Aluminum TRF420X

	$7.50		Tamiya ( 9803159 ) Battery Post: 42326 Blue TA07MS

	$18.99		Tamiya ( 9803230 ) Front Direct Cup: 42345

	$6.50		Tamiya ( 9803336 ) 1.6x9mm Shaft: 58693

	$3.00		Tamiya ( 9804382 ) Flanged Tube: 42106 - 4.5x3.5mm TA05/V2, TRF416/417

	$9.59		Tamiya ( 9804852 ) Cross Shaft: 42285 TRF419

	$4.50		Tamiya ( 9804947 ) 13mm O-Ring: 42301 TRF419X

	$3.80		Tamiya ( 9805776 ) 2x9.8mm Shaft: 49175

	$18.00		Tamiya ( 22054 ) 37mm Drive Shafts 2pcs For Double Cardan Joint Shafts

	~~$23.50~~ $18.80		Tamiya ( 22078 ) Alum Diff Holders 0.8mm Offset, 2pcs

	~~$23.50~~ $18.80		Tamiya ( 22079 ) Alum Diff Holders 0.5mm Offset, 2pcs

	$11.00		Tamiya ( 42221 ) Cross Joint (2pcs) - For Double Cardan Joint Shaft

	~~$30.00~~ $24.00		Tamiya ( 42281 ) TRF418 Stabilizer Set - Front/Rear

	$8.00		Tamiya ( 42307 ) TRF419X Upper Arm Spacers - 0.5, 0.8mm

	$6.00		Tamiya ( 42319 ) Lightweight Cross Joints For Double Cardan Joint Shafts

	$15.00		Tamiya ( 42320 ) Lightweight Joint Casings For Double Cardan Joint Shafts

	$13.00		Tamiya ( 42346 ) TRF420 Wheel Axles 2Pcs

	~~$24.50~~ $19.60		Tamiya ( 42347 ) TRF420 Carbon Upper Deck

	~~$93.00~~ $74.40		Tamiya ( 42348 ) TRF420 Carbon Lower Deck

	~~$24.00~~ $19.20		Tamiya ( 42349 ) TRF420 Carbon Upper Deck 1.75mm Thick

	~~$103.00~~ $82.40		Tamiya ( 42350 ) TRF420 Aluminum Lower Deck

	~~$22.00~~ $17.60		Tamiya ( 42351 ) TRF420 Center Pulley

	$4.20		Tamiya ( 42357 ) Cross Joints Low Friction Assem Univ Shafts

	$8.75		Tamiya ( 42359 ) VG O-Rings For Oil Dampers 30 Degrees

	~~$22.00~~ $17.60		Tamiya ( 42360 ) 42mm Drive Shafts 2pcs For Lf Dbl Cardan Joint Shafts

	~~$22.00~~ $17.60		Tamiya ( 42361 ) 43mm Drive Shafts 2pcs For Lf Dbl Cardan Joint Shafts

	~~$22.00~~ $17.60		Tamiya ( 42362 ) 44mm Drive Shafts 2pcs For Lf Dbl Cardan Joint Shafts

	$19.00		Tamiya ( 42363 ) Axle Shafts 2pcs For TRF D Cardan Joint Shafts

	$19.00		Tamiya ( 42373 ) 39mm Drive Shafts for Double Cardan Joint Shafts (2pcs.)

	$6.75		Tamiya ( 42374 ) VG O-Rings For Gear Differentials

	~~$32.00~~ $25.60		Tamiya ( 47440 ) TRF420 Long Damper Stays Front/Rear

	$18.50		Tamiya ( 51565 ) TRF419 Gear Diff Unit - Aluminum Diff Joint 2pcs

	$6.25		Tamiya ( 51567 ) TRF419 Gear Diff Unit - Bevel Gear Set

	$3.40		Tamiya ( 51636 ) TRF420 3x43mm Sus Shafts 4pcs

	$3.40		Tamiya ( 51637 ) TRF420 SUS Shafts 3x25mm / 3x22mm 2pcs Each

	$5.25		Tamiya ( 51638 ) TRF420 C Parts Front Uprights

	$8.25		Tamiya ( 51639 ) TRF420 D Parts Suspension Arms

	$6.25		Tamiya ( 51640 ) TRF420 E Parts Rear Uprights

	$6.75		Tamiya ( 51641 ) TRF420 F Parts 4 Degree Hub Carriers

	$11.00		Tamiya ( 51642 ) TRF420 Front Direct Pulley 37T

	$6.50		Tamiya ( 51643 ) TRF420 Diff/Pulley Case 37T

	$8.25		Tamiya ( 51644 ) TRF420 B Parts Bumper

	$8.00		Tamiya ( 51645 ) TRF420 K Parts Bearing Holders

	$6.75		Tamiya ( 51646 ) TRF420 Rear Belt 62T

	$16.00		Tamiya ( 51647 ) TRF420 Alum Fnt Direct Cups 2pcs

	$2.70		Tamiya ( 51650 ) TRF420 Urethane Bumper

	$10.00		Tamiya ( 51670 ) TA08 Front Belt 132T

	$7.75		Tamiya ( 51671 ) TA08 Rear Belt 101T

	$7.50		Tamiya ( 54648 ) Stabilizer Ball Connector - Fluorine Coated

	~~$24.50~~ $19.60		Tamiya ( 54704 ) TA07 Alum Steering Arm Set

	$15.00		Tamiya ( 54880 ) Alum Adjustable Sus Mount (XB)

	$15.00		Tamiya ( 54881 ) Alum Adjustable Sus Mount (A)

	$15.00		Tamiya ( 54882 ) Alum Adjustable Sus Mount (E)

	~~$21.00~~ $16.80		Tamiya ( 54883 ) Separate Sus Mounts (XB) Aluminum Adjustable

	~~$21.00~~ $16.80		Tamiya ( 54884 ) Separate Sus Mounts (A) Aluminum Adjustable

	~~$21.00~~ $16.80		Tamiya ( 54885 ) Separate Sus Mounts (E) Aluminum Adjustable

	~~$76.00~~ $60.80		Tamiya ( 54886 ) TRF419 Suspension Upgrade

	$3.90		Tamiya ( 54921 ) Reinforced Swing Shaft Caps Front/Rear (2Pcs Ea)

	$3.90		Tamiya ( 54922 ) Bushing For Adjustable Sus Mounts

	$17.50		Tamiya ( 54942 ) TRF420 SUS Arm Bushing B

	$17.50		Tamiya ( 54943 ) TRF420 SUS Arm Bushing A-C

	$11.00		Tamiya ( 54976 ) TRF420 Brass Bumper Posts

	~~$29.00~~ $23.20		Tamiya ( 54979 ) Soft Stabilizer Set - TA07/TB-05

	$1.45		Tamiya ( 84189 ) Antenna Cap Set

	$10.50		Tamiya ( 42306 ) Lg Dia Short Spring Set - Touring Car

	~~$104.00~~ $83.20		Tamiya ( 42353 ) TRF Big Bore Dampers - Super Short / 4Pcs

	$7.25		Tamiya ( 53574 ) TRF Damper Rod Guide & O-Ring Set (4 Sets)

	$3.90		Tamiya ( 54727 ) Oil Seal (4pcs) - For TRF SS Big Bore Dampers

	$6.00		Tamiya ( 54728 ) Piston (4pcs) - For TRF SS Big Bore Dampers

	$6.75		Tamiya ( 54871 ) Reinforced V Parts For TRF Dampers

	$4.90		Tamiya ( 9804381 ) Ball Connector: 42106 - 5x9mm Hex Head 2pcs

	$14.00		Tamiya ( 42344 ) 5.8mm Ball Connector Nuts - TRF Dampers 8Pcs

	$12.50		Tamiya ( 53598 ) 5mm Alum Ball Connector - Fluorine Coated 10pcs

	$9.50		Tamiya ( 53640 ) 5mm Aluminum Ball Nut - Blue 10pcs

	$11.00		Tamiya ( 53968 ) Hex Head Ball Connector - 5x5mm

	$11.00		Tamiya ( 53969 ) Hex Head Ball Connector - 5x8mm

	$5.75		Tamiya ( 54247 ) Aluminum Turnbuckle Shaft - 3x18mm (2pcs)

	$5.75		Tamiya ( 54249 ) Aluminum Turnbuckle Shaft - 3x32mm (2pcs)

	$6.50		Tamiya ( 54250 ) Aluminum Turnbuckle Shaft - 3x42mm (2pcs)

	$4.60		Tamiya ( 54869 ) 5mm Reinforced Adjusters Open Face (Long/8pcs)

	$4.60		Tamiya ( 54870 ) Stabilizer End 5mm Adjuster 4pcs

	$5.25		Tamiya ( 9803403 ) 5x15.2x0.2mm Shim: 42382

	$2.70		Tamiya ( 9804194 ) 3x10mm Set Screw: 44042 - 2 pcs

	$4.70		Tamiya ( 9804246 ) 5x0.5mm Spacer: 49381 (5pcs)

	$14.00		Tamiya ( 9804372 ) 5x1.5mm Spacer: 42106 TRF416 / 417 - 10pcs

	$4.49		Tamiya ( 9804392 ) 3x10mm Tapping Screw: 58447 - 10pcs

	$3.99		Tamiya ( 9805645 ) 3x0.7mm Spacer: 49132 - 10pcs

	$6.25		Tamiya ( 9805777 ) 3x2.5mm Grub Screw: 49175 (10pcs)

	$3.60		Tamiya ( 9805888 ) 2.6x10mm Cap Screw: 58299 10pcs

	$5.50		Tamiya ( 9805893 ) 1.6x4mm Cap Screw: 49278 Wheel Hub Screw - 10pcs

	$2.20		Tamiya ( 50575 ) 2.6x10mm Tap Screw: 44002

	$3.60		Tamiya ( 50576 ) 3x3 Grub Screw: 44002

	$2.00		Tamiya ( 50586 ) 3mm Washer: 44002

	$2.20		Tamiya ( 50588 ) 2mm E-Ring: 44002

	$11.00		Tamiya ( 53539 ) 5.5 Aluminum Spacer Set

	$7.25		Tamiya ( 53585 ) 3mm Shim Set - 3 Types / 10pcs each

	$7.25		Tamiya ( 53587 ) 5mm Shim Set - 3 Types

	$6.50		Tamiya ( 54155 ) 3mm Thin Aluminum Lock Nut - 5pcs Blue

	$8.75		Tamiya ( 54156 ) 3mm Countersunk Washer - 8pcs Blue

	$8.25		Tamiya ( 54862 ) Aluminum Servo Step Screws

	$3.00		Tamiya ( 51537 ) 6mm Snap Pin (15pcs)

	$5.25		Tamiya ( 50171 ) Heat Resis Double Sided Tape - SP1171

	$12.00		Tamiya ( 51000 ) Hi-Torque Servo Saver - Black

	$4.50		Tamiya ( 54863 ) HI-Torque Servo Saver Cap Aluminum
