| This part is a new concept in Tamiya suspension mount design. It uses different bushing inserts to allow adjustment of the following parameters: toe angle, tread, roll center and skid (caster) angle! There are three different types of mount, each with different dimensions. The bushings sprue contains 7 pairs of different bushing types, each type with a different hole for the suspension shafts, giving a total of 25 potential shaft offset positions.

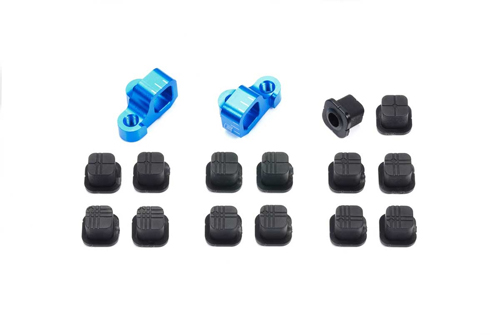

- Aluminum Adjustable Suspension Mount (A-a & A-b) x1 each
- Bushings Sprue x1
- These mounts allow settings between XA and C (toe angles depend upon separate suspension mount and bushings used).
- Blue anodized finish.
- Compatible with TRF 419, TA07 and TB-05 chassis cars. |
