1/10 BBX 2WD BB-01 Kit

More Images Click

Car Kits > 2WD/4WD Offroad

Maker:

Tamiya

Part Number:

58719

Our Price:

~~$365.00~~ 30% off (Save $109.50)
$255.50

Quantity:

Only one left !!
Free Shipping !!

We have live inventory system.
This item is in stock and ready to ship.

Description

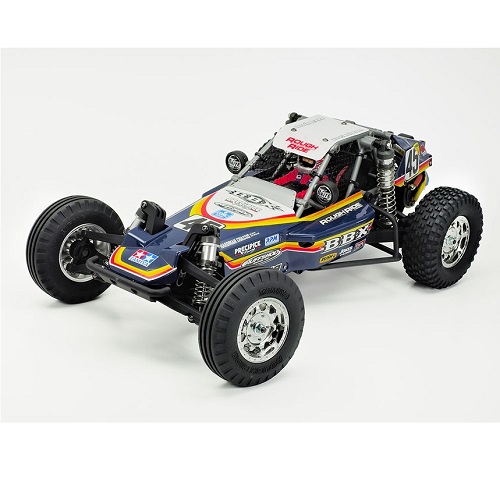

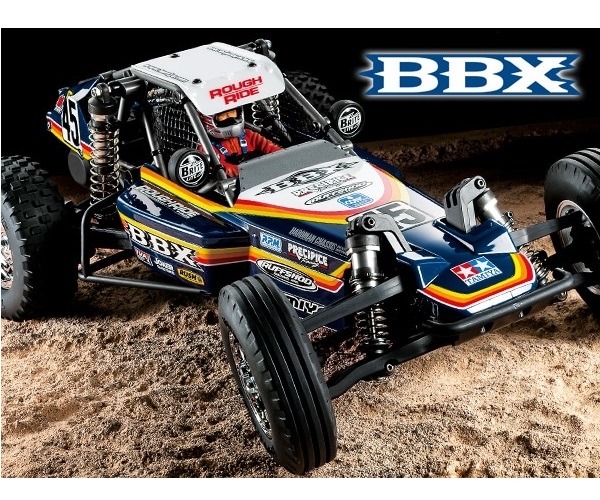

Tamiya's designers have taken inspiration from its back catalog of iconic 2WD off-road buggies to bring fans of radio control the ALL-NEW BBX! This 1/10 R/C 2WD off-road buggy model features a combination of classic design and modern performance. Its brand-new chassis, reminiscent of 1980’s sand rail dune buggies, is a hybrid monocoque-roll cage and employs rear trailing arm suspension inspired by full-size UTV’s. The new body is designed by famed Japanese artist Atsushi Arino and utilizes a classic 1980’s inspired livery with retro wheels and tires to match!

Key Features:

- 1/10 R/C assembly kit. Length: 414mm, height: 136mm, width: 233mm. Wheelbase: 283mm.

- The classically designed 0.7mm thick polycarbonate body is split into three sections to recreate the tapered lower shape of the actual dune buggy.

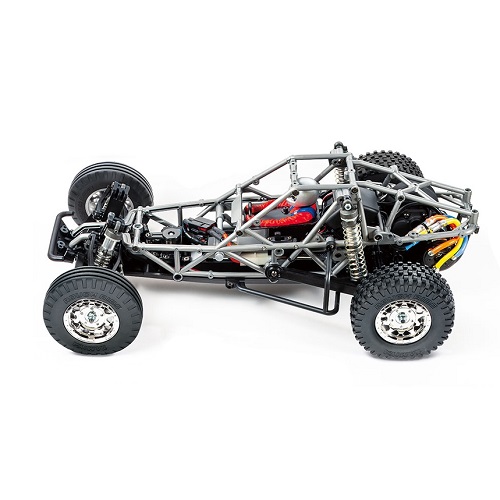

- NEW: Newly designed 2WD chassis is based on the one-piece monocoque frame and roll cage to allow use of realistic bodies.

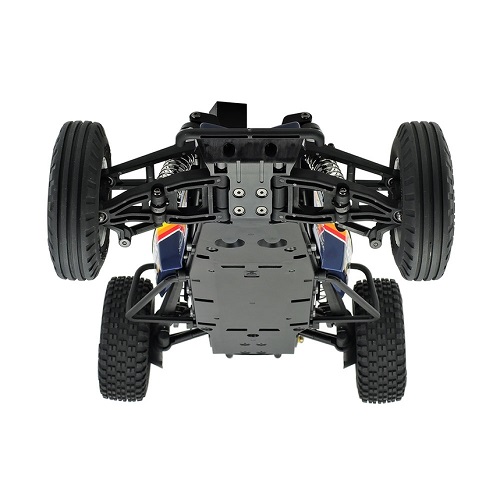

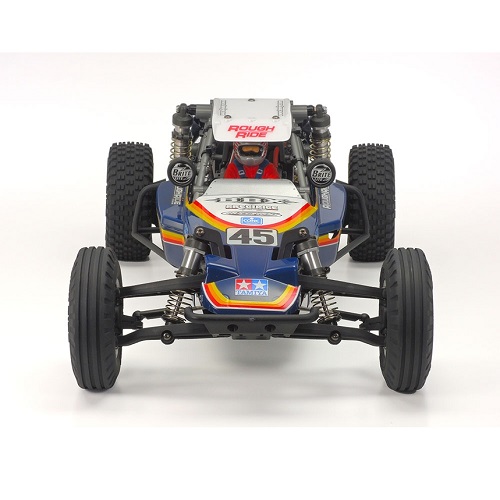

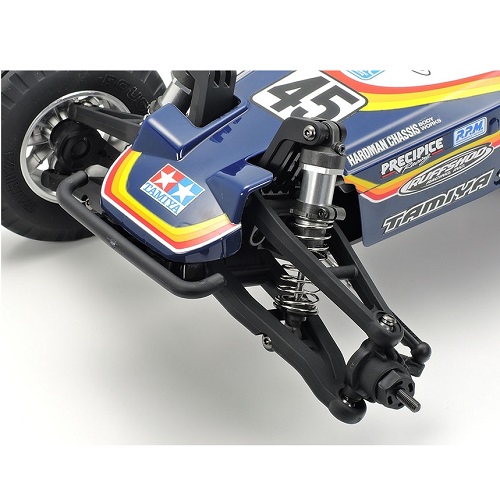

- The BB-01 chassis employs new front double wishbone suspension with A-shaped arms and rear trailing arm suspension with long trailing arms which are inspired by UTVs and give impressive prformance.

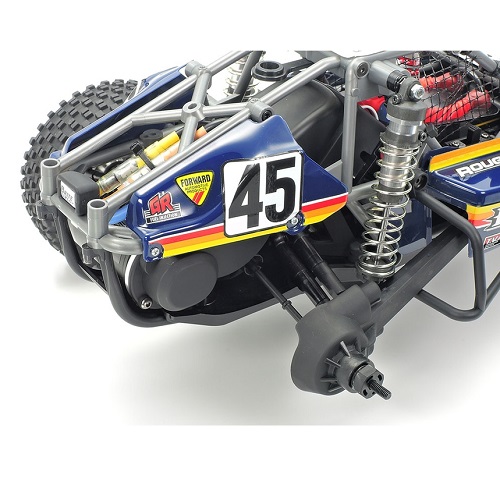

- The 2WD chassis with rear motor features rear-position, inspired by the same layout of the actual vehicles of the era and allows great rear traction.

- The four-wheel double wishbone suspension system uses CVA oil front/rear aluminum aeration dampers for impressive performance and classic look.

- Transmission uses the TA06 rear ball differential for consistent traction and may be outfitted with the separately sold TA-06 oil-filled gear differential which allows the use of many existing Grade-Up parts.

- Features full ball bearings and universal drive shafts.

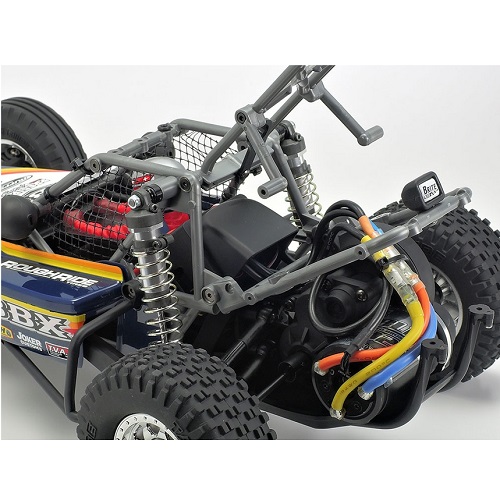

- Rear roll cage can be removed by detaching screws, which ensures ease of maintenance around motor.

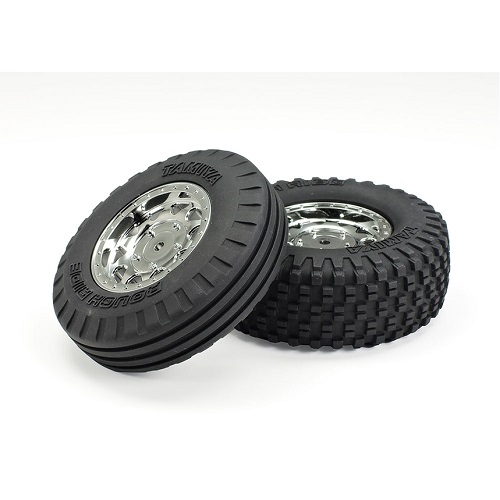

- NEW: New metal-plated bead lock type wheels are paired with NEW large-diameter tires.

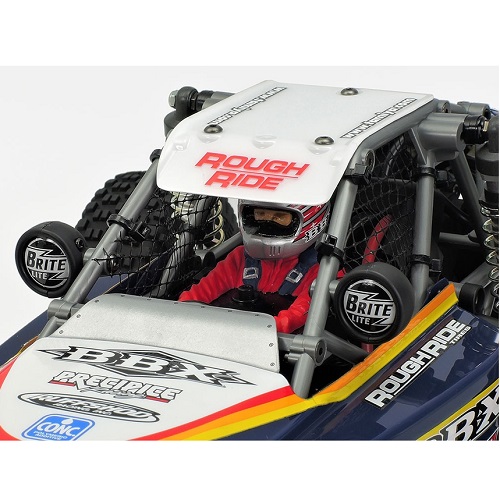

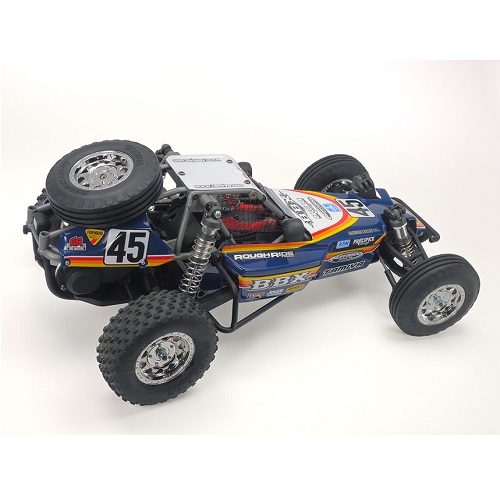

- Includes driver figure and light cases for extra realism, and 5th spare tire mount adapter. (Spare tire may be purchased separately for added realism)

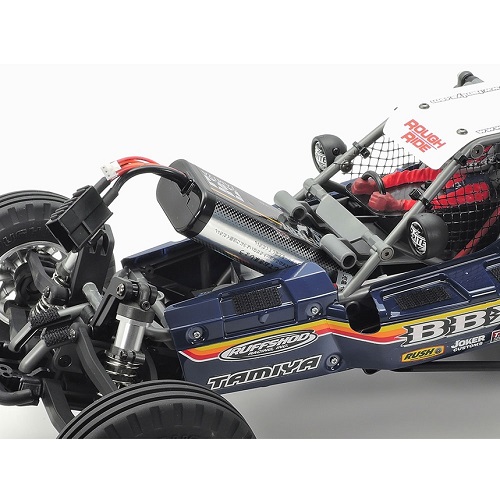

- Requires 2-channel radio, steering servo, 540 motor, ESC, 7.2-7.4volt battery with compatible charger and Tamiya PS paint to complete.

More Images

Click image to Enlarge(+)

Parts List

Sort By Category New Items Maker


	$12.00		Tamiya ( 51716 ) Buggy Front Tires (2 Pcs.)

	$16.00		Tamiya ( 51717 ) Buggy Rear Tires (2 Pcs.)

	$3.40		Tamiya ( 19805557 ) 4mm Flange Lock Nut: 57602 4pcs

	$7.00		Tamiya ( 51715 ) Buggy Wheels (Plated) (4 Pcs.)

	~~$27.00~~ $21.60		Tamiya ( 53823 ) Clamp Type Alu Wheel Hub - 5mm

	$7.25		Tamiya ( 54080 ) 4mm Aluminum Lock Nut

	$5.75		Tamiya ( 51417 ) TRF201 6026 Thrust Bearing - TRF417

	$3.50		Tamiya ( 51714 ) 48 Pitch Spur Gear (86T)

	$11.69		Tamiya ( 54226 ) FF03 3/32 Tungsten Ball - 12pcs FF03 / TC3 / TC4 / TC5 / TC6

	$5.00		Tamiya ( 54390 ) Large Ball Diff Alloy Plate 54194 (M05 Ball Diff)

	~~$33.00~~ $26.40		Tamiya ( 54471 ) TA06 Steel Gear Diff Unit - Rear TA06/FF03/M07/M08

	$15.99		Tamiya ( 19805672 ) 840 Ball Bearing: 58261 2pcs 4x8mm

	$22.99		Tamiya ( 19808022 ) 730 Ball Bearing 3x7

	$9.50		Tamiya ( 51239 ) 1050 Ball Bearing Set 5x10mm - 4pcs F104 Front Axle Bearing

	$24.99		Tamiya ( 53030 ) 850 Sealed Ball Bearing (4) - U53030 For F103 Front Axle Bearing

	$9.99		Tamiya ( 94392 ) 850 Ball Bearing

	$6.75		Tamiya ( 19803275 ) Suspension Ball: 58681 Black

	$6.75		Tamiya ( 19803279 ) King Pin: 58681 Black

	$9.50		Tamiya ( 19804409 ) Diff Screw/Diff Nut: 42167 TRF201/502X

	$3.80		Tamiya ( 19805776 ) 2x9.8mm Shaft: 49175

	$2.70		Tamiya ( 19805823 ) 2x8mm Shaft: 58284

	$2.30		Tamiya ( 19808021 ) Flanged Tube: 58345 - 4.5x3.5mm 2pcs TA05/V2, TRF416/417

	$14.00		Tamiya ( 22068 ) BB-01 Dogbone Shafts (2 Pcs.)

	~~$40.00~~ $32.00		Tamiya ( 22069 ) BB-01 Aluminum Front Uprights

	$17.50		Tamiya ( 22070 ) BB-01 Aluminum Servo Stays

	~~$42.00~~ $33.60		Tamiya ( 22071 ) BB-01 Aluminum Slipper Clutch Set

	$8.00		Tamiya ( 22087 ) 33T Steel Idler Gear

	~~$38.00~~ $30.40		Tamiya ( 22088 ) BB-01 Alum Damper Stays Front

	~~$23.00~~ $18.40		Tamiya ( 22089 ) BB-01 Alum Damper Mount Bar Rear

	~~$23.00~~ $18.40		Tamiya ( 22090 ) BB-01 Alum Steering Arms L/R

	$12.00		Tamiya ( 22091 ) BB-01 Alum Steering Bridge L/R

	$3.50		Tamiya ( 49299 ) Diff Spring: TA05

	$2.60		Tamiya ( 50797 ) 5mm Short Adjuster - (8pcs)

	$3.60		Tamiya ( 51093 ) TB Evo IV 46mm Sus Shaft - 4pcs

	$1.99		Tamiya ( 51418 ) TRF201 3x35mm Shaft (2pcs) - Stainless Steel

	$3.50		Tamiya ( 51444 ) TRF417 Cross Joint Set

	$3.70		Tamiya ( 51506 ) XV-01 Chassis G Parts - (Gear)

	$10.50		Tamiya ( 51711 ) BB-01 A-Parts (Front Bumper Stay) (2 Pcs.)

	$5.25		Tamiya ( 51712 ) BB-01 C-Parts (Front Uprights) (2 Pcs.)

	$9.25		Tamiya ( 51713 ) BB-01 D-Parts (Suspension Arms) (2 Pcs.)

	$11.00		Tamiya ( 53851 ) Titan Coated 46mm Shaft - 2pcs Stainless

	$8.25		Tamiya ( 54027 ) DB01 Slipper Pad

	$16.00		Tamiya ( 54042 ) TRF501X 40.7mm Titanium Coated - Piston Rod (2 pcs) TRF501X/511/502X

	$16.00		Tamiya ( 54043 ) TRF501X 49.6mm Titanium Coated - Piston Rod (2 pcs) TRF501X/511/502X

	$8.75		Tamiya ( 54183 ) Reinforced Freewheel Axle Set - M-Chassis / FF03

	$12.50		Tamiya ( 54221 ) TRF201 Front Spring Set

	$3.60		Tamiya ( 54262 ) Rein 52T Ball Diff Gear Set - TRF201 / FF03

	$2.30		Tamiya ( 54384 ) 5mm Body Adjustment O-Ring - 10pcs

	$16.99		Tamiya ( 54401 ) Balance Weight - TA06 / TRF201

	$16.50		Tamiya ( 54428 ) Steel Bevel Gears - For TA06 / M07 Gear Diff Unit

	$17.50		Tamiya ( 54602 ) Alum Gear Diff Unit Cover - TA06/XV-01/FF-03R/M-07

	$1.19		Tamiya ( 84195 ) 3mm O-Ring (10pcs) - Black

	$2.59		Tamiya ( 19804291 ) 11.5mm/7.5mm O-Ring: 49401 - 4pcs each

	$2.70		Tamiya ( 19804292 ) 36.5mm Piston Rod: 49401 TRF501X

	$2.49		Tamiya ( 19804293 ) 45.4mm Piston Rod: 49401 TRF501X

	$2.70		Tamiya ( 19805779 ) 2x5mm Cap Screw: 44032

	$10.00		Tamiya ( 42214 ) Damper X-Rings - 50 Durometer / 8pcs

	$10.00		Tamiya ( 42215 ) Damper X-Rings - 70 Durometer / 8pcs

	$6.75		Tamiya ( 51282 ) TRF501X X Parts - Damper Retainer

	$13.00		Tamiya ( 53974 ) Front Spring Set TRF501X/XV-01/XV-02

	$14.50		Tamiya ( 53975 ) Rear Spring Set - TRF501X

	$12.50		Tamiya ( 54506 ) Big Bore Damper Spring Set Aeration Type (Front) (4WD)

	$12.50		Tamiya ( 54507 ) Big Bore Damper Spring Set Aeration Type (Front) (2WD)

	$12.50		Tamiya ( 54508 ) Big Bore Damper Spring Set - Aeration Type

	$6.00		Tamiya ( 54710 ) Silicone Oil #400

	~~$79.00~~ $63.20		Tamiya ( 54993 ) Aluminum Damper Set TT-02B/DF-03/XV-02/BB-01

	$3.40		Tamiya ( 19804205 ) 5mm Ball Connector: 43514 - 4pcs.

	$3.70		Tamiya ( 19804206 ) 5mm Ball Connector Nut: 43514 - 4pcs.

	$4.70		Tamiya ( 51283 ) 5mm Heavy Duty Adjuster - 8pcs TRF501X

	$12.00		Tamiya ( 53599 ) 5mm Alum Ball Nut - Fluorine Coated 10pcs

	$9.50		Tamiya ( 53640 ) 5mm Aluminum Ball Nut - Blue 10pcs

	$11.00		Tamiya ( 53968 ) Hex Head Ball Connector - 5x5mm

	$11.00		Tamiya ( 53969 ) Hex Head Ball Connector - 5x8mm

	$4.20		Tamiya ( 54257 ) 5mm Reinforced Adjuster - Gray (8pcs)

	$4.70		Tamiya ( 19804246 ) 5x0.5mm Spacer: 49381 (5pcs)

	$1.59		Tamiya ( 19804310 ) 2.6x5mm Screw: 49401 5pcs

	$3.30		Tamiya ( 19804334 ) GP Cap Screw: 43532 2.6X8mm

	$2.99		Tamiya ( 19804412 ) RH Socket Screw: 58331 3X23mm

	$3.99		Tamiya ( 19805645 ) 3x0.7mm Spacer: 49132 - 10pcs

	$3.00		Tamiya ( 19805724 ) 3x15mm Screw: 58267

	$3.39		Tamiya ( 19805764 ) 3x20mm Screw: 49175

	$1.99		Tamiya ( 19805831 ) 2x8mm Cap Screw: 58288 2pcs

	$2.30		Tamiya ( 19805868 ) 2x10mm Screw: 57719

	$3.60		Tamiya ( 19805888 ) 2.6x10mm Cap Screw: 58299 10pcs

	$3.30		Tamiya ( 19805991 ) 3mm Lock Nut: 58345

	$2.20		Tamiya ( 50573 ) 2x8mm Tapping Screw: 44002 (Tamiya Mini Gear Diff Screws)

	$2.00		Tamiya ( 50586 ) 3mm Washer: 44002

	$2.20		Tamiya ( 50588 ) 2mm E-Ring: 44002

	$2.20		Tamiya ( 51624 ) 3x6mm Hex Head Screws Steel

	$2.20		Tamiya ( 51625 ) 3x6mm CS Hex Head Screws Countersunk Steel

	$2.20		Tamiya ( 51626 ) 3x8mm Hex Head Screws Steel

	$2.20		Tamiya ( 51627 ) 3x8mm CS Hex Head Screws Countersunk Steel

	$2.20		Tamiya ( 51628 ) 3x10mm Hex Head Screws Steel

	$2.20		Tamiya ( 51629 ) 3x10mm CS Hex Head Screws Countersunk Steel

	$2.20		Tamiya ( 51630 ) 3x12mm Hex Head Screws Steel

	$2.20		Tamiya ( 51631 ) 3x12mm CS Hex Head Screws Countersunk Steel

	$2.20		Tamiya ( 51632 ) 3x16mm Hex Head Screws Steel

	$11.00		Tamiya ( 53539 ) 5.5 Aluminum Spacer Set

	$9.50		Tamiya ( 53588 ) 10mm Shim Set - 3 Types (0.1mm,0.2mm,0.3mm Thickness 10pcs each)

	$8.75		Tamiya ( 53646 ) 53646 Wheel Spacer - Blue

	$6.50		Tamiya ( 54155 ) 3mm Thin Aluminum Lock Nut - 5pcs Blue

	$6.75		Tamiya ( 54573 ) 0.75mm Wheel Spacer - Blue / 8pcs

	$6.75		Tamiya ( 54589 ) Gear Differential Shim Set - 10 pcs.

	$8.25		Tamiya ( 54862 ) Aluminum Servo Step Screws

	$3.00		Tamiya ( 51537 ) 6mm Snap Pin (15pcs)

	~~$26.00~~ $20.80		Tamiya ( 54591 ) Ballast Weight (Half Size) - 25g x 2

	$12.00		Tamiya ( 51000 ) Hi-Torque Servo Saver - Black

	$4.50		Tamiya ( 54863 ) HI-Torque Servo Saver Cap Aluminum

	~~$37.00~~ $29.60		Tamiya ( 54893 ) Alum Adjustable Servo Horn

	~~$109.99~~ $88.99		Savox ( SB2263MG-BE ) Black Edition Low Profile Brushless Digital Servo
