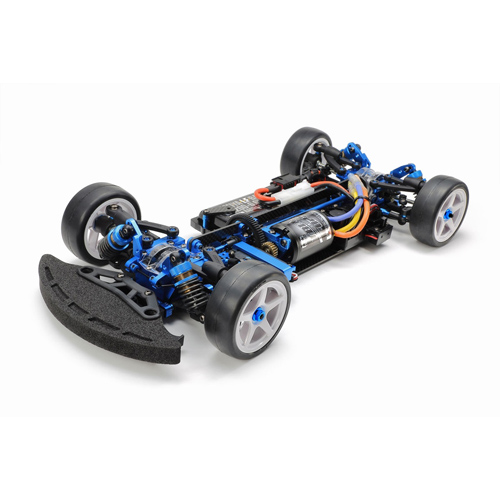

TB EVO.8 Chassis Kit
More Images Click


Car Kits > 1/10 Onroad
Maker:
Tamiya View more
Part Number: 42383
Our Price: $907.00 30% off (Save $272.10)
$634.90
Quantity: Coming Soon !!
Free Shipping !!


Description

 Tamiya welcomes a new variant to the TB Evo. series - the fastest shaft-driven chassis produced by Tamiya - which started in the year 2000. With an updated chassis layout from the TB Evo. 7, its suspension features popular A-shaped suspension arms which was used for the Tamiya TA08 PRO Chassis kit. Additionally, the motor can be positioned in two locations. Do not miss this chance to get this chassis featuring efficient drive and superior controllability!

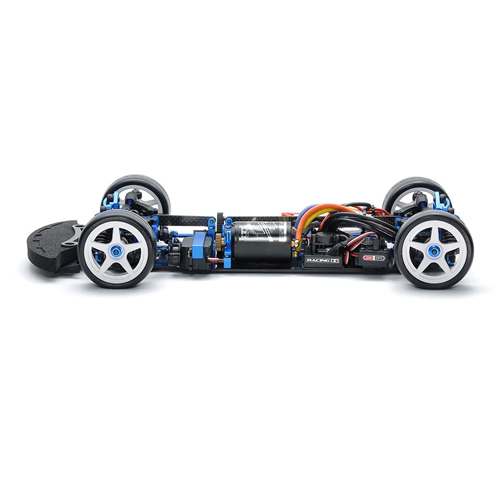

- 1/10 scale R/C shaft driven 4WD chassis assembly kit.

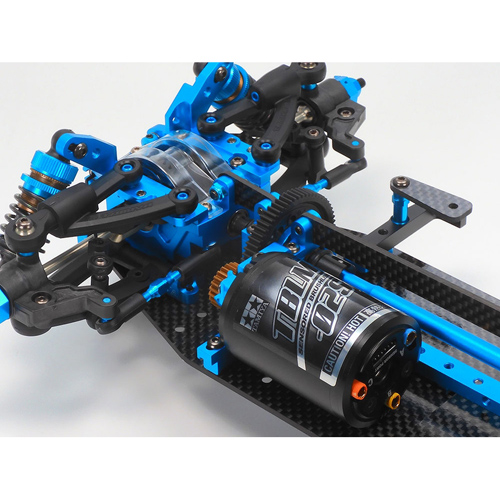

- Choose from two types of motor layout - front mid motor layout or rear mid motor layout.
- Lower deck and vertical upper decks are crafted in carbon fiber, and ensure pitch rigidity.

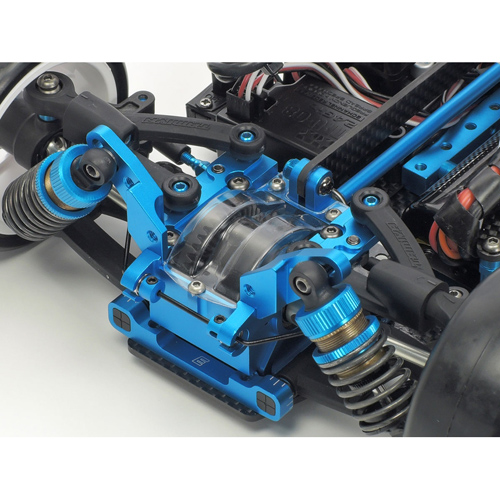

- Aluminum bulkhead and damper stay are one-piece component.

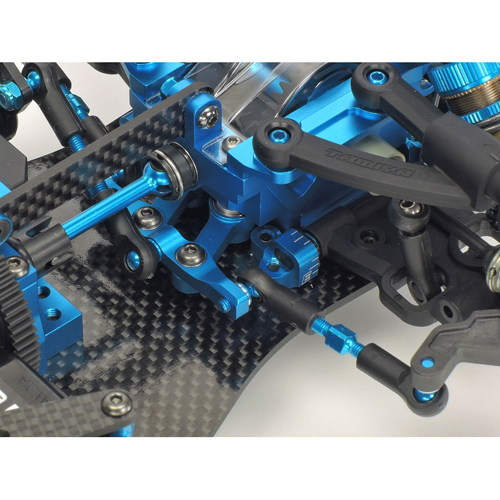

- 7mm suspension balls and king-pins are combined for smooth motion. (Item 22016)

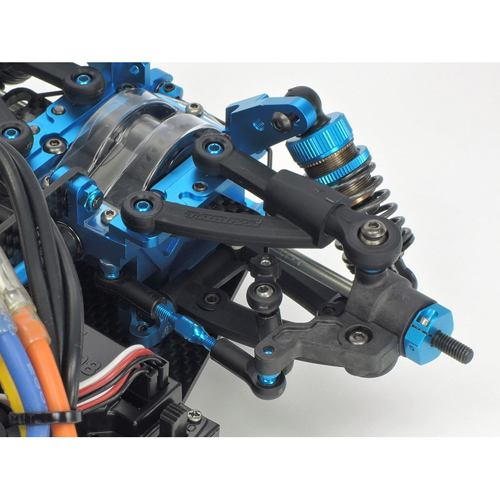

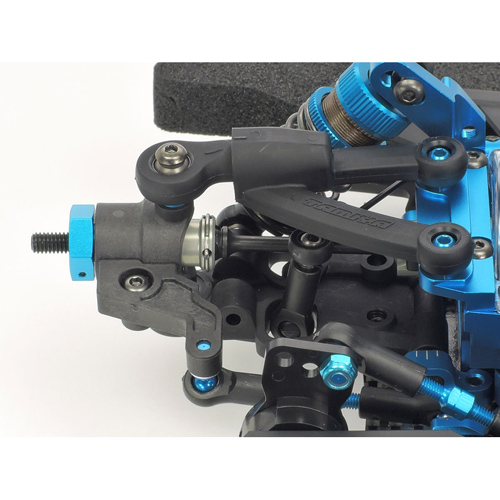

- The front A-shaped arm suspension employs Super Short Big Bore dampers and uses 5.8mm balls to connect top and bottom sections for superior responsiveness.
- The rear suspension utilizes tie rods for easy adjustment of toe angle on upright side.

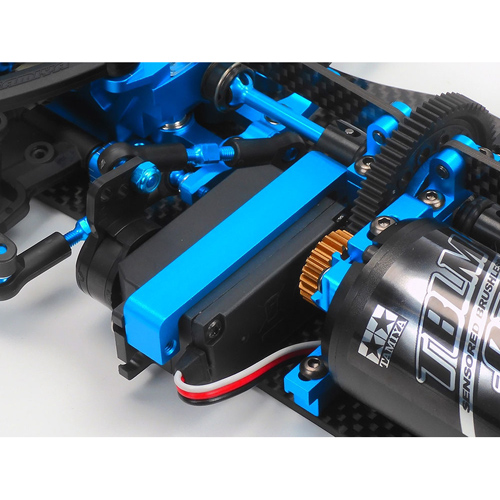

- The steering linkage is affixed directly to bulkhead to limit any impact upon chassis roll.

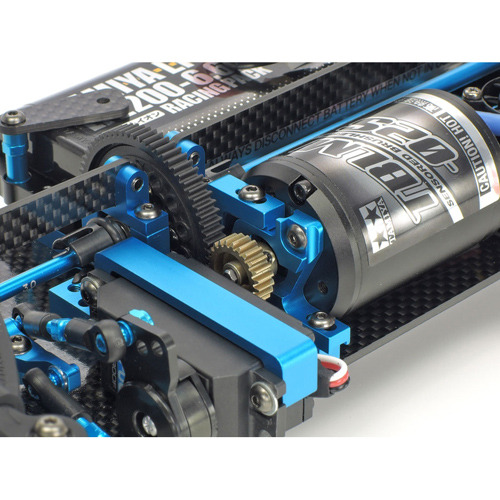

- Features efficient, fuss-free adjustment of motor backlash via two screws on chassis upside.
- Highly-efficient shaft-driven 4WD is achieved with a front direct coupling and double cardan drive shafts, plus a rear gear differential unit and aluminum drive shafts.
- Uses urethane front bumper (from Item 58693: TA08 PRO chassis) for great aerodynamics.

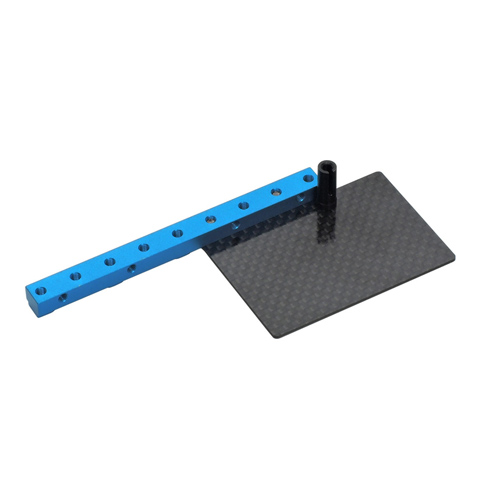

- Carbon fiber, floating R/C equipment deck attached by screws removes use of double-sided tape for maintenance.
- Comes with a carrying case.
- Required to complete: 2-channel radio, steering servo, ESC, motor, 7.2-7.4volt battery, 1/10 scale touring car body, and tires.

New Parts
Carbon fiber components:
Lower deck / upper decks x4 (two each for front mid motor layout or rear mid motor layout respectively) R/C equipment deck

Aluminum components:
One-piece lower bulkheads / front upper bulkhead / rear upper bulkhead / motor mount /
propeller shafts (two for front mid motor layout and one for rear mid motor layout) / servo mount /
center stiffener / king pin balls (Item 22016) / steering bridge / battery mount & mount spacer

More Images

Click image to Enlarge(+)
Parts List
Sort By Category New Items Maker
In-Stock Items Only
$7.25 Tamiya ( 42143 )
4mm Alum Serrated Wheel Nut - 4pcs Blue
$3.70 Tamiya ( 51548 )
TB04 06 Module Spur Gear - 66T
$10.00 Tamiya ( 54363 )
06 Module Pinion Gear (23T) - Hard Coated Aluminum
$6.75 Tamiya ( 54656 )
Silicone Oil #2000
$6.75 Tamiya ( 54657 )
Silicone Oil #3000
$6.00 Tamiya ( 9804243 )
630 Ball Bearing: 49378 2pcs - ABC Grid Steering Bearing 3x6mm
$8.99 Tamiya ( 42113 )
1050 Sealed Bearing - (2 pcs) fluorine coated seal
$9.99 Tamiya ( 42115 )
1510 Sealed Bearing - (2 pcs) Fluorine Coated Seal
$4.90 Tamiya ( 42220 )
1050 Ball Bearing - 3mm Thick, 2pcs 5x10x3 for Tamiya DCJ
$7.75 Tamiya ( 3450860 )
Input Shaft: 42315
$9.00 Tamiya ( 3451457 )
126mm Prop Shaft: 42383 - Blue
$10.00 Tamiya ( 3451458 )
158mm Prop Shaft: 42383
$4.29 Tamiya ( 3455898 )
Antenna Post: 49378 - TRF101 / TRF417
$13.99 Tamiya ( 3458135 )
Front Direct Shaft: 84379 - Blue EVO 6
$6.99 Tamiya ( 3458143 )
Rear Input Shaft: 84379 EVO 6
$11.00 Tamiya ( 9006975 )
BB Parts : 58693
$6.00 Tamiya ( 9803039 )
Steering Post: 42315
$8.25 Tamiya ( 9803160 )
Battery Holder: 42326 TA07MS
$5.00 Tamiya ( 9804476 )
1.6x8mm Shaft: 58492 (5pcs)
$3.80 Tamiya ( 9804615 )
7mm O-Ring: 58519
$4.50 Tamiya ( 9804947 )
13mm O-Ring: 42301 TRF419X
$3.80 Tamiya ( 9805776 )
2x9.8mm Shaft: 49175
$2.70 Tamiya ( 9805823 )
2x8mm Shaft: 58284
$32.00
$25.60
Tamiya ( 22003 )
TA08 Stabilizer Set - Front/Rear
$24.50
$19.60
Tamiya ( 22085 )
TA08R Rein Body Mount Rear
$11.00 Tamiya ( 42221 )
Cross Joint (2pcs) - For Double Cardan Joint Shaft
$22.00
$17.60
Tamiya ( 42239 )
Double Cardan Joint Shaft - 42mm 2pcs
$30.00
$24.00
Tamiya ( 42281 )
TRF418 Stabilizer Set - Front/Rear
$15.00 Tamiya ( 42320 )
Lightweight Joint Casings For Double Cardan Joint Shafts
$17.00 Tamiya ( 42356 )
42mm Swing Shafts - Hard 2Pcs
$4.20 Tamiya ( 42357 )
Cross Joints Low Friction Assem Univ Shafts
$8.75 Tamiya ( 42359 )
VG O-Rings For Oil Dampers 30 Degrees
$19.00 Tamiya ( 42363 )
Axle Shafts 2pcs For TRF D Cardan Joint Shafts
$6.75 Tamiya ( 42374 )
VG O-Rings For Gear Differentials
$3.50 Tamiya ( 51444 )
TRF417 Cross Joint Set
$13.00 Tamiya ( 51445 )
TRF417 Wheel Axle - 2pcs
$6.00 Tamiya ( 51547 )
TB04 One Way/Gear Set - 40T
$7.00 Tamiya ( 51549 )
Gear Diff Unit Bevel Gear - TB04
$3.00 Tamiya ( 51553 )
TB04 Gear Diff Unit Gasket - 2pcs
$3.40 Tamiya ( 51636 )
TRF420 3x43mm Sus Shafts 4pcs
$5.25 Tamiya ( 51638 )
TRF420 C Parts Front Uprights
$8.25 Tamiya ( 51644 )
TRF420 B Parts Bumper
$11.00 Tamiya ( 51669 )
TA08 D Parts (Sus Arms) - 2pcs
$13.49 Tamiya ( 54410 )
30mm Light Weight Aluminum Swing Shaft
$8.50 Tamiya ( 54533 )
TB04 Gear Diff Cross Shaft
$18.00 Tamiya ( 54543 )
Aluminum Cup Joints - For TB04 Gear Diff Unit (L/S)
$7.50 Tamiya ( 54648 )
Stabilizer Ball Connector - Fluorine Coated
$14.00 Tamiya ( 54879 )
TRF419 Alum FNT Direct Cups - 2pcs
$15.00 Tamiya ( 54880 )
Alum Adjustable Sus Mount (XB)
$15.00 Tamiya ( 54881 )
Alum Adjustable Sus Mount (A)
$15.00 Tamiya ( 54882 )
Alum Adjustable Sus Mount (E)
$21.00
$16.80
Tamiya ( 54883 )
Separate Sus Mounts (XB) Aluminum Adjustable
$21.00
$16.80
Tamiya ( 54884 )
Separate Sus Mounts (A) Aluminum Adjustable
$21.00
$16.80
Tamiya ( 54885 )
Separate Sus Mounts (E) Aluminum Adjustable
$3.90 Tamiya ( 54921 )
Reinforced Swing Shaft Caps Front/Rear (2Pcs Ea)
$3.90 Tamiya ( 54922 )
Bushing For Adjustable Sus Mounts
$1.45 Tamiya ( 84189 )
Antenna Cap Set
$6.50 Tamiya ( 9803328 )
Piston Rod: 58693
$2.70 Tamiya ( 9805779 )
2x5mm Cap Screw: 44032
$10.50 Tamiya ( 42306 )
Lg Dia Short Spring Set - Touring Car
$7.25 Tamiya ( 53574 )
TRF Damper Rod Guide & O-Ring Set (4 Sets)
$6.00 Tamiya ( 54707 )
Silicone Oil #250
$6.00 Tamiya ( 54708 )
Silicone Oil #300
$6.00 Tamiya ( 54709 )
Silicone Oil #350
$6.00 Tamiya ( 54710 )
Silicone Oil #400
$6.00 Tamiya ( 54711 )
Silicone Oil #450
$6.00 Tamiya ( 54712 )
Silicone Oil #500
$6.00 Tamiya ( 54713 )
Silicone Oil #550
$6.00 Tamiya ( 54714 )
Silicone Oil #600
$6.00 Tamiya ( 54715 )
Silicone Oil #700
$6.00 Tamiya ( 54716 )
Silicone Oil #800
$6.00 Tamiya ( 54717 )
Silicone Oil #900
$6.00 Tamiya ( 54718 )
Silicone Oil #1000
$3.90 Tamiya ( 54727 )
Oil Seal (4pcs) - For TRF SS Big Bore Dampers
$6.00 Tamiya ( 54728 )
Piston (4pcs) - For TRF SS Big Bore Dampers
$6.75 Tamiya ( 54871 )
Reinforced V Parts For TRF Dampers
$8.75 Tamiya ( 9803327 )
4x18mm TB Shaft: 58693
$8.50 Tamiya ( 9803332 )
Damper B Connect Nut: 58693 5.8mm
$9.50 Tamiya ( 22016 )
Low Friction King Pin Balls - TA08 (4pcs)
$12.50 Tamiya ( 53906 )
5x5mm Alum Ball Connector - Hex Head
$5.75 Tamiya ( 54248 )
Aluminum Turnbuckle Shaft - 3x23mm (2pcs)
$4.60 Tamiya ( 54869 )
5mm Reinforced Adjusters Open Face (Long/8pcs)
$4.60 Tamiya ( 54870 )
Stabilizer End 5mm Adjuster 4pcs
$5.25 Tamiya ( 9803043 )
2.6x5mm Hex Screw: 42315
$2.30 Tamiya ( 9804228 )
3mm Washer: 49349
$4.70 Tamiya ( 9804246 )
5x0.5mm Spacer: 49381 (5pcs)
$14.00 Tamiya ( 9804372 )
5x1.5mm Spacer: 42106 TRF416 / 417 - 10pcs
$4.49 Tamiya ( 9804392 )
3x10mm Tapping Screw: 58447 - 10pcs
$7.00 Tamiya ( 9804494 )
5x10x0.1mm Shim: 58492 (10pcs)
$7.00 Tamiya ( 9804536 )
5x10x0.3mm Shim: 84288 (10pcs) Tamiya Gear Diff Shim
$7.25 Tamiya ( 9804780 )
4x8mm Socket Screw: 42270 - 10pcs TRF418
$2.00 Tamiya ( 9805185 )
Metal B. Bag 850 2pc: 58058 - Y5801
$3.99 Tamiya ( 9805645 )
3x0.7mm Spacer: 49132 - 10pcs
$6.25 Tamiya ( 9805777 )
3x2.5mm Grub Screw: 49175 (10pcs)
$3.60 Tamiya ( 9805888 )
2.6x10mm Cap Screw: 58299 10pcs
$5.50 Tamiya ( 9805893 )
1.6x4mm Cap Screw: 49278 Wheel Hub Screw - 10pcs
$2.50 Tamiya ( 9805990 )
3x5mm Hex Screw: 84205
$1.49 Tamiya ( 9808011 )
3x8mm Screw: 58345
$2.20 Tamiya ( 50575 )
2.6x10mm Tap Screw: 44002
$2.20 Tamiya ( 50588 )
2mm E-Ring: 44002
$2.20 Tamiya ( 51624 )
3x6mm Hex Head Screws Steel
$2.20 Tamiya ( 51625 )
3x6mm CS Hex Head Screws Countersunk Steel
$2.20 Tamiya ( 51626 )
3x8mm Hex Head Screws Steel
$2.20 Tamiya ( 51627 )
3x8mm CS Hex Head Screws Countersunk Steel
$2.20 Tamiya ( 51628 )
3x10mm Hex Head Screws Steel
$2.20 Tamiya ( 51629 )
3x10mm CS Hex Head Screws Countersunk Steel
$2.20 Tamiya ( 51630 )
3x12mm Hex Head Screws Steel
$2.20 Tamiya ( 51631 )
3x12mm CS Hex Head Screws Countersunk Steel
$11.00 Tamiya ( 53539 )
5.5 Aluminum Spacer Set
$7.25 Tamiya ( 53585 )
3mm Shim Set - 3 Types / 10pcs each
$7.25 Tamiya ( 53586 )
4mm Shim Set - 3 Types
$7.25 Tamiya ( 53587 )
5mm Shim Set - 3 Types
$9.50 Tamiya ( 53588 )
10mm Shim Set - 3 Types (0.1mm,0.2mm,0.3mm Thickness 10pcs each)
$6.50 Tamiya ( 54155 )
3mm Thin Aluminum Lock Nut - 5pcs Blue
$8.75 Tamiya ( 54156 )
3mm Countersunk Washer - 8pcs Blue
$3.00 Tamiya ( 51537 )
6mm Snap Pin (15pcs)
$5.25 Tamiya ( 50171 )
Heat Resis Double Sided Tape - SP1171
$12.00 Tamiya ( 51000 )
Hi-Torque Servo Saver - Black
$4.50 Tamiya ( 54863 )
HI-Torque Servo Saver Cap Aluminum
$7.25 Tamiya ( 87099 )
Cera Grease HG
