1/10 SP1 F1 CHASSIS SPECIFICATION
Overall Length : 328mm
Overall Width Front width : 185-200mm
Rear width : 185-200mm
Wheelbase length : 270mm
Weight (fully equipped with longpack LiPo 7.4V battery): 1165g
Chassis only : 320g
Specification may be subject to change without notice

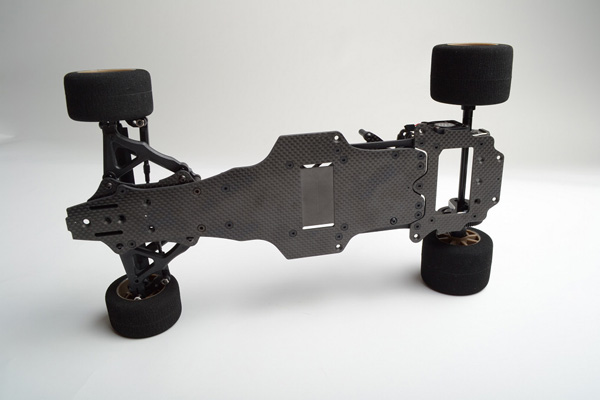

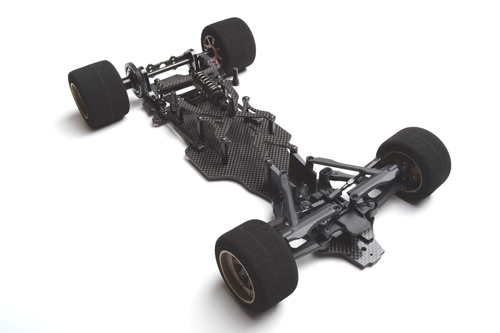

Similar to full size F1 cars, the SP-1 F1 1/10th scale chassis utilizes a high quality 3mm streamlined carbon fiber lower chassis, a 2mm upper deck, and lightweight 7075 aircraft grade aluminum. Chassis stiffness can also be fine tuned using 6 chassis spacers depending on track conditions. Aluminum components, such as the rear pod and center shock are anodized with a stealth black finish. The SP-1 F1 1/10th scale chassis also allows different lipo battery positions and configurations. The SP-1 can fit regular size 2 cells lipo battery or the shorty 2 cell lipo packs. The SP-1 F1 1/10th scale chassis represents Speed Passion's high quality standards on and off the track as racers can put the chassis' craftsmanship and attention to detail on display.
** photos for reference only, the final production metal parts in Gunmetal color.
** photos for reference only, the final production metal parts in Gunmetal color.

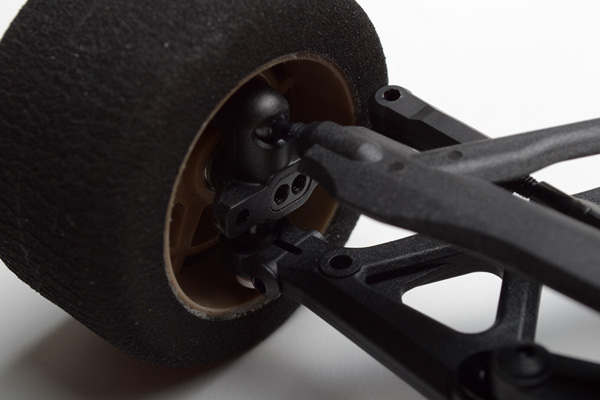

The SP-1 F1 1/10th scale chassis suspension is designed with an innovative dual bellcrank steering system that allows the Ackerman to be fine tuned for precision control. The suspension also allows for infinite camber adjustment and 5
** photos for reference only, the final production metal parts in Gunmetal color.

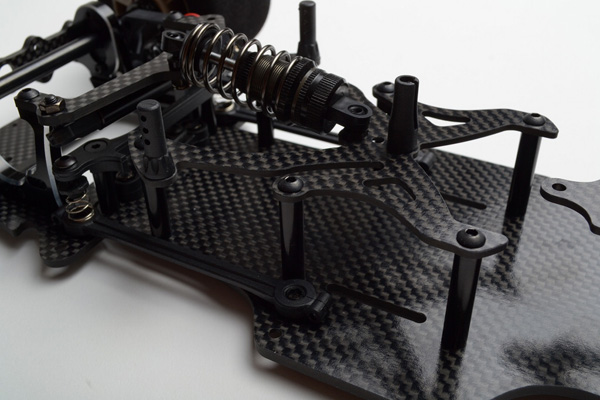

The SP-1 F1 1/10th scale chassis is designed with a centrally located, large volume shock that is attached to a carbon fiber mounting plate. The result of is stability and traction on high speed track sections and total control in small, tight, sections. These characteristics are not easily found on today's crop of F1 chassis'.
** photos for reference only, the final production metal parts in Gunmetal color.

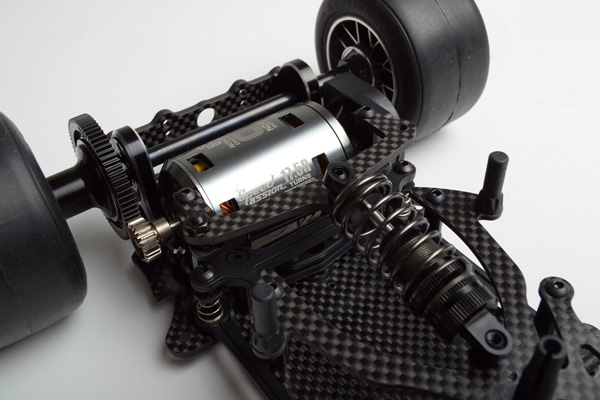

High quality option parts for the SP-1 F1 1/10th scale chassis include a full aluminum motor pod, various shores of foam and rubber tires, aluminum preset camber blocks ranging from 0

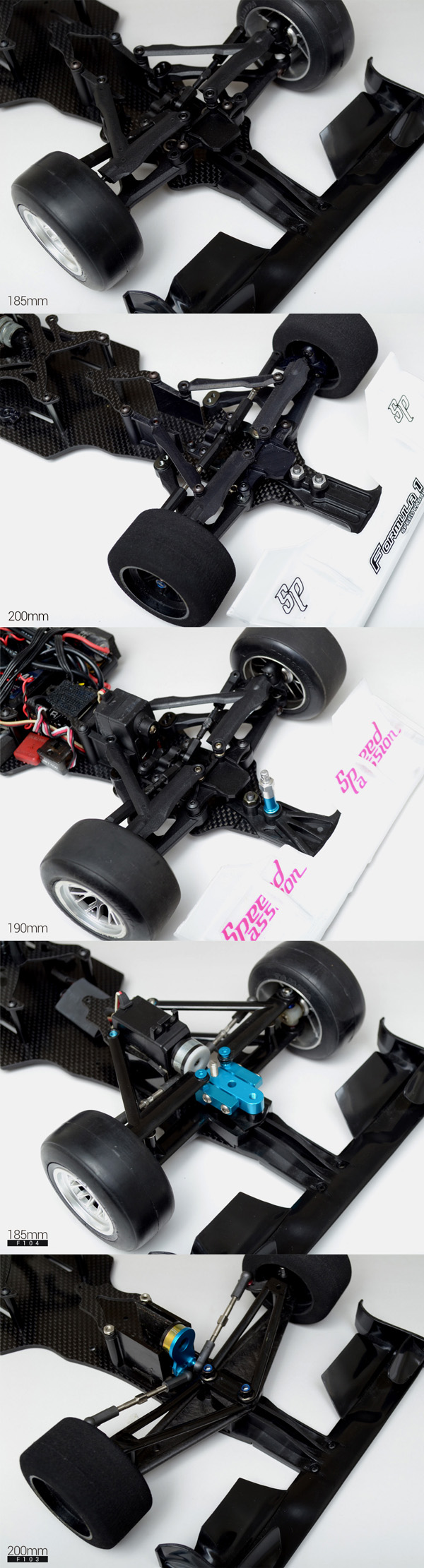

Our Chassis will fit many type of F1 ranging from 185-200mm with optional parts.
 |
