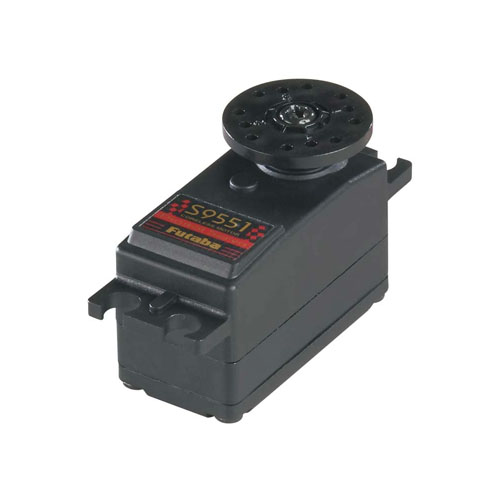

Futaba S9551 Low Profile Digital High Speed/Torque Servo

Restocked Items

Radio/Servo/Saver > Servos

Maker:

Futaba

Part Number:

S9551

Our Price:

$89.99

Quantity:

Out of stock

Technical Data

Digitally enhanced microprocessor cuts about half of the response time from transmitter input to servo reaction
Low profile allows for the servo to fit into wings and lie down in car chassis for less obstruction

Coreless motor
Metal gears
Dual ball-bearings
Black plastic case
Dust and water resistant (not waterproof)
One year limited warranty
Ideal for F3A aileron application and 1/10 scale electric touring car

One S9551 Digital Low Profile Servo with 0.83" (21mm) diameter round horn, 1.7" (44mm) long T-shaped horn, four eylets, two rubber gromments (order FUTM2250 if mounting screws are needed)

Speed:
0.14 sec/60 @ 4.8V
0.11 sec/60 @ 6.0V
Torque:
98 oz-in (7.0kg/cm) @ 4.8V
122 oz-in (8.8 kg-cm) @ 6.0V
Weight: 1.6oz (45g)
Dimensions: 1.6 x 0.8 x 1.0" (41 x 20 x 25mm)
Distance Between Mounting Hole Centers: 0.39" (10mm)
Horn Screw Size: 3x8mm

Compatiblity

Factory Team TC5R Kit , Ferrari F60 (F104) , F104 PRO w/Body - F104 , F103 / F103 GT , Cyclone TC , Hot Bodies Cyclone S , XRAY T3 Competition 1/10 Electric Touring Car , HPI Racing Sprint 2 , Associated TC3 , TRF416 Chassis Kit , TA05/TA05 IFS , Castrol Honda Civic VTI - FF03 , Hot Bodies Cyclone TCX , Factory Team TC6 Kit , TA05v.2 , F104X1 / F104W-GP , 3RACING Sakura FGX 1/10 Formula 1 EP Car , TC6.1 Factory Team Kit , TA05VDF , HPI Racing F10 , 1/10 F104 Version II Chassis Kit , Spec-R R1 1/10 Electric Touring Car , Spec-R S1 1/10 Sports Edition Electric Touring Car , XRAY T4 2013 Spec Team Touring Car Kit , 1/10 Scale RC High Performance Racing Car F113 , TC6.1 Factory Team Worlds Car Kit , F104V.2 Pro Chassis Kit (F104V.2 Dark Titanium w/Body) , 3RACING Sakura XI Sport 1/10 Touring , 1/10 TRF101 Chassis Kit , Spec-R R1 1/10 Electric Touring Car Pro-Spec , H4e 1/10 Pro Electric 4wd Touring Car Kit with Upgraded parts. , 1/10 SP-1 F1 Pro Kit , F104V.2 Pro Chassis Kit - F104V.2 Black Special , RC10TC6.2 Factory Team Kit , 3RACING Sakura Ultimate 1/10 Touring Car , XRAY T4 2014 Spec Team Touring Car Kit , ARC R10 Car Kit 2013 , Spec-R S2 1/10 Electric Touring Car , TRF101W Chassis Kit , Yokomo BD7 Electric Touring Car Kit , ARC R10 Car Kit 2015 Black Edition , XRAY T4 - 2015 Specs - 1/10 Electric TC , WildFireD06 1:10 Touring Car Kit , WildFireD06 VBC Dynamics Edition 1:10 Car Kit , ARC R10 Car Kit 2015 ATS Version , Yokomo BD7 2015 Black Series 1/10 Competition Electric Touring Car Kit , VBC Racing - WildFire D07 1/10 Touring Car Kit , Spec-R R2 1/10 Electric Touring Car (Regular Version) , R10 2015 US Edition , TRF102 Chassis Kit , XRAY T4 - 2016 Specs - 1/10 Electric TC , Associated 1/10 RC10TC7 Factory Team Touring 4WD Kit , ARC R11 Car Kit , WildFireD08 1/10 Touring Car Kit D-05-VBC-CK20 , Yokomo BD7 2016 Black Series 1/10 Electric Touring Car Kit , TA07 PRO Chassis Kit , Associated 1/10 TC7.1 Factory Team Kit , R11 2017 Car Kit , BD8 2017 Black Series 1/10 Electric Touring Car Kit (Graphite) , YR-10 Formula ver.ETS 1/10 Formula Kit , BD8 2017 Black Series 1/10 Electric Touring Car Kit (Aluminum) , TRF102 Chassis Kit - TRF102 Black Edition , RC10F6 Factory Team Kit , XRAY T4 - 2017 Specs - 1/10 Electric TC , ARC R11 2017 Car Kit US Edition , WildFireD09 Dynamics Edition 1:10 Touring Car , FF17 Belt Drive Dynamics 1:10 Touring Car Kit , ARC R11 2018 Car Kit , 3RACING Sakura XI Sport 1/10 Touring Car Ver.NU , TA07R Chassis Kit - TA07R
