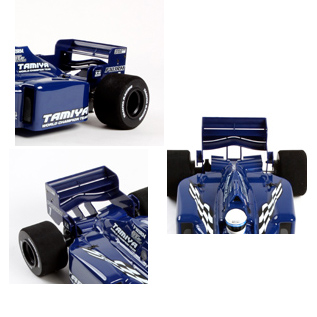

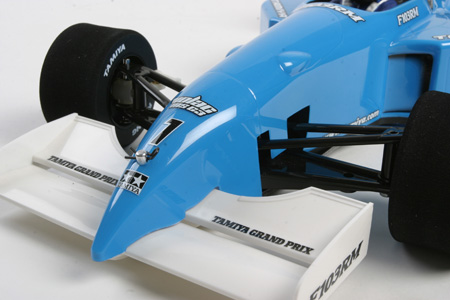

Tamiya F104 front end will work with just one modification.

Click Here to see the pictures

The all new F113 is the first competitive F1 chassis race kit to bare the 3 Racing "Factory Racing Products" label, the introduction of this label was conceptualized with the idea of including the best materials in our high end race kits and to distinguish our line of successful Sakura car kits from the entry/mid-level to race level. All car kits to bare the "Factory Racing Products" label will feature the finest of materials namely imported high grade 7075 aircraft aluminum, imported woven carbon graphite, PTFE coated shock bodies and ball ends.

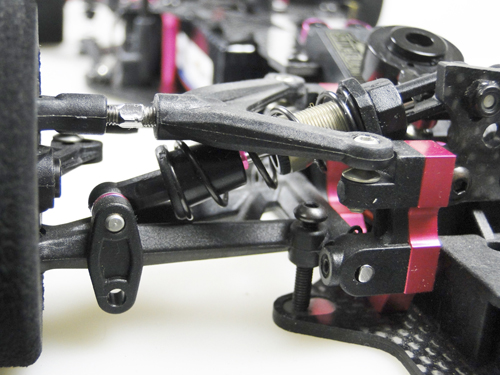

Front Suspension

The F113 was redesigned from scratch and shares very little parts with the successful F109, the F113 is the first to feature various innovative concepts previously unseen on mainstream F1 chassis currently available while maintaining the realistic looks of a real F1 car which in many cases is the fundamental success of the class. The F113 will feature a unique front suspension unlike anything available, dual Through Shaft Coil Spring Oil Filled Alum Dampers, Independent Double Wishbone Suspension and features adjustments such as Droop, Camber, Caster, Reactive Caster, Roll Center, Shock Angle, Ackermann with the entire infrastructure supported on 7075 Alum bulkheads.

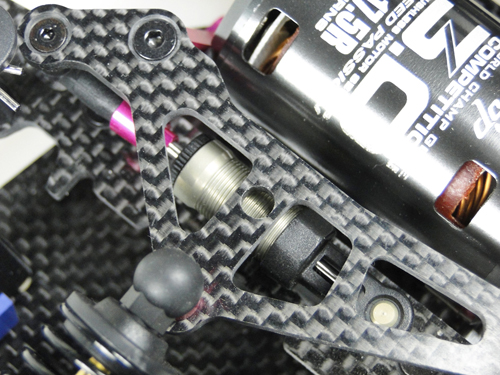

Rear Suspension

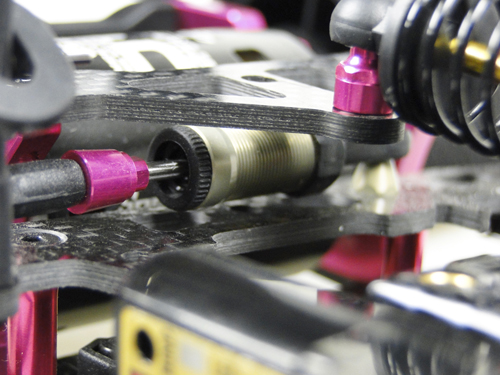

The rear of the F113 employs a 1/12th pan car inspired design with the widely used single pivot ball, side springs and drag link rear suspension system with a longitudinal Symmetric Stroke Through Shaft Design rear Coil Spring Oil Filled Dampers to handle the front and rear weight transfers and another mounted transversely to handle the side to side damping.

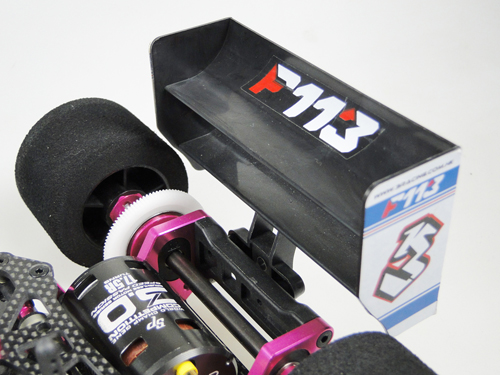

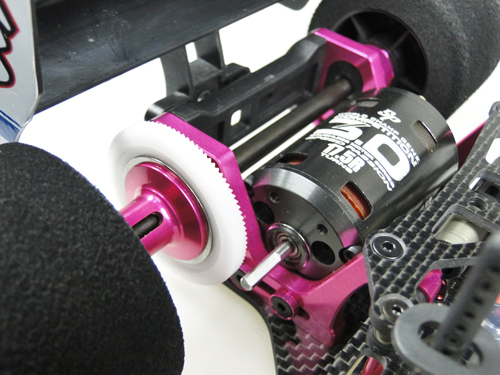

Rear Drive Train (Picture shows early prototype motor mount)

The F113 will come standard with a 1/12th scale type 1/4" rear axle and diff equipped with 1/8&rdquo stainless steel diff balls plus specially processed diff plates which gives it the extra hardness to handle any high powered brushless motor . Axle Height adjusters will allow adjustments in 0.5mm increments for precise ride height adjustments with any tire diameter.

The motor mount will be constructed from machined 7075 alum for the best rigidity and heat dissipation and will accommodate both Brushed and Brushless Motors.

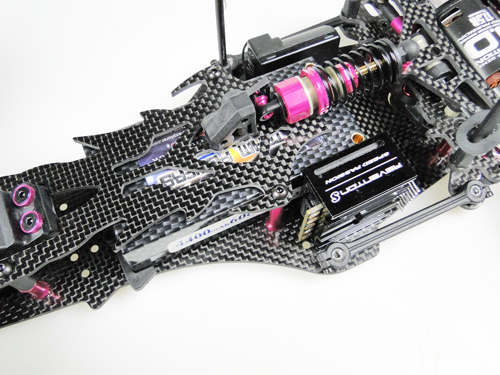

Upper and Main Chassis

The 2.5mm main chassis and 2mm upper chassis are CNC machined from premier grade imported woven graphite. It will accommodate both standard and low profile servos with plenty of room for electronics. Chassis mounted battery pack stoppers will come standard to precisely position your Lipo battery packs on every installation whether you are using standard or shorty Lipo battery packs..

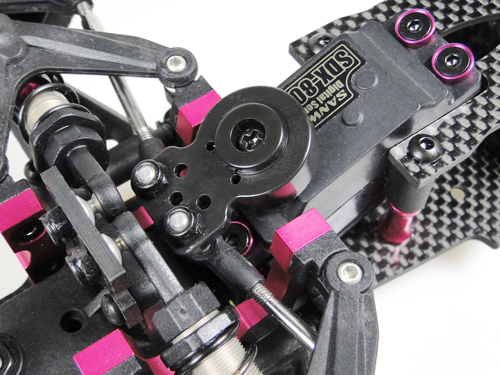

Steering
