XV-02RS Pro Chassis Kit XV-02

More Images Click

Car Kits > Rally Kits

Maker:

Tamiya

Part Number:

58726

Our Price:

~~$437.00~~ 30% off (Save $131.10)
$305.90

Quantity:

Out of stock
Free Shipping !!

Description

The XV-02 RS chassis is an on-road variant of the rally XV-02 platform. The kit is mainly oriented for on-road, and features updates such as dedicated 3.5mm thick carbon fiber damper stays, aluminum-cylinder oil dampers employing shaft length suited for on-road performance, and carbon fiber-reinforced rigid lower chassis.

- 1/10 scale R/C chassis assembly kit.

- Features aluminum-cylinder oil dampers employing shaft length suited for on-road performance and dedicated 3.5mm thick carbon fiber damper stays, and carbon fiber-reinforced rigid lower chassis.

- 18-spoke wheels are paired with racing semi-slick tires.

- Equipped with front midship motor plus identical length front and rear long propeller shafts.

- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.

- Use 39T gears (w/15T gears) on the front and rear for standard drive balance, 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear. *Use the latter two with slipper clutch and center differential.

- A longitudinal battery pack is positioned in the center-left for optimum balance.

- The flat chassis bottom and skid angle on the front bumper further contribute to limit surface contact under driving conditions.

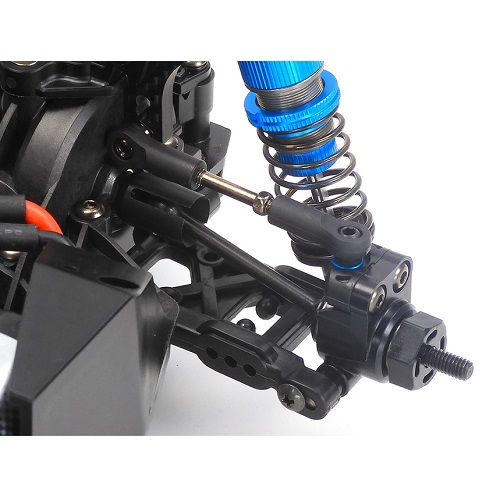

- Caster blocks feature an angle of six degrees.

- Includes front and rear universal drive shafts, and an aluminum servo mount.

- Required to complete: 2-channel radio, steering servo, ESC, 7.2-7.4volt battery with compatible charger, 540 motor, and 190mm Body set.

More Images

Click image to Enlarge(+)

Parts List

Sort By Category New Items Maker


	$11.00		Tamiya ( 50476 ) Rally Block Tire Set (1Pr)

	$9.25		Tamiya ( 54861 ) RC Rally Block Tires Soft/2pcs

	$11.50		Tamiya ( 51021 ) Ford Focus RS WRC 03 Wheels 4Pcs

	$3.60		Tamiya ( 53113 ) Racing Inner Sponge

	$10.00		Tamiya ( 53159 ) Anodized Flange Lock Nuts - 4mm(Blue 5pcs)

	~~$25.00~~ $20.00		Tamiya ( 53569 ) Clamp Type Alum Wheel Hub - 6mm

	~~$27.00~~ $21.60		Tamiya ( 53823 ) Clamp Type Alu Wheel Hub - 5mm

	$4.99		Tamiya ( 10015174 ) GV Parts: 58707

	$4.50		Tamiya ( 19803418 ) Diff Gasket: 58707 Brown

	~~$60.00~~ $48.00		Tamiya ( 22046 ) Ball Differential Set 39T XV-02/TT-02

	~~$32.00~~ $25.60		Tamiya ( 22047 ) Fnt Direct Coupling Set 39T XV-02/TT-02

	~~$32.00~~ $25.60		Tamiya ( 22049 ) Oil Gear Differential Unit XV-02/TT-02

	$6.00		Tamiya ( 22050 ) 06 Module Spur Gear 70T For XV-02 Gear Differential

	$7.75		Tamiya ( 50355 ) AV Pinion Set 18/19T - SP1355

	$3.00		Tamiya ( 51694 ) 06 Module Spur Gear 70T XV-02

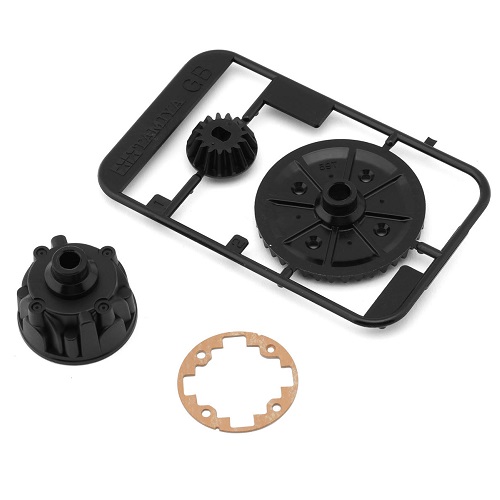

	$5.50		Tamiya ( 51695 ) Ring Gear Set 39T For XV-02/TT-02 Gear Diff

	$5.50		Tamiya ( 51696 ) Ring Gear Set 40T For XV-02 Gear Diff

	$5.00		Tamiya ( 51702 ) Ring Gear Set 39T For XV-02/TT-02 Ball Diff

	$5.50		Tamiya ( 51703 ) Ring Gear Set 40T For XV-02 Ball Diff

	$8.75		Tamiya ( 51704 ) Ring Gear Set 39T/40T For XV-02/TT-02 Dir Coupling

	$7.75		Tamiya ( 54768 ) Hard Coated Pinion Gear - 06 Module Aluminum (17T)

	$7.75		Tamiya ( 54769 ) Hard Coated Pinion Gear - 06 Module Aluminum (18T)

	$7.75		Tamiya ( 54770 ) Hard Coated Pinion Gear - 06 Module Aluminum (22T)

	$22.99		Tamiya ( 19808022 ) 730 Ball Bearing 3x7

	$9.50		Tamiya ( 51239 ) 1050 Ball Bearing Set 5x10mm - 4pcs F104 Front Axle Bearing

	$9.99		Tamiya ( 94392 ) 850 Ball Bearing

	~~$20.50~~ $16.99		Tamiya ( 10015170 ) A Parts: 58707 XV-02 11015170

	~~$27.00~~ $21.99		Tamiya ( 13451415 ) Motor Mount: 58707

	$7.75		Tamiya ( 13451416 ) 67mm Prop Shaft: 58707

	$8.75		Tamiya ( 13451418 ) Input Shaft: 58707

	$8.75		Tamiya ( 13451419 ) Main Shaft: 58707

	$7.00		Tamiya ( 13451420 ) Main Shaft Cup: 58707

	$0.99		Tamiya ( 14305125 ) Motor Plate: 58256/202/199/197 RM01 / F104 V2

	$13.00		Tamiya ( 1820068 ) Chassis Cover: 58707

	~~$21.00~~ $16.80		Tamiya ( 19225232 ) T Parts: 58707

	~~$38.00~~ $30.40		Tamiya ( 19335873 ) Lower Deck: 58707

	$1.99		Tamiya ( 19444361 ) 12mm O-Ring: 49349

	$6.50		Tamiya ( 19803336 ) 1.6x9mm Shaft: 58693

	~~$31.00~~ $24.80		Tamiya ( 19803416 ) Servo Mount: 58707 Blue

	$11.00		Tamiya ( 19803419 ) Diff Joint Cup: 58707

	$2.60		Tamiya ( 19804301 ) 2.6x27mm Shaft: 49401

	$7.00		Tamiya ( 19804999 ) Steering Post: 58647 - Blue

	$3.80		Tamiya ( 19805776 ) 2x9.8mm Shaft: 49175

	$2.00		Tamiya ( 19808017 ) 2x9mm Shaft: 58345

	$9.50		Tamiya ( 22029 ) TD4 Diff Nut/Screw Set XV-01/XV-02

	$7.50		Tamiya ( 22045 ) TD4 Slipper Clutch Pads White/2pcs XV-01/XV-02

	~~$60.00~~ $48.00		Tamiya ( 22048 ) Slipper Clutch Set XV-02

	$16.50		Tamiya ( 22052 ) XV-02 Universal Prop Shaft

	$10.00		Tamiya ( 22053 ) XV-02 Alum Spur Gear Holder

	$18.00		Tamiya ( 22054 ) 37mm Drive Shafts 2pcs For Double Cardan Joint Shafts

	$16.50		Tamiya ( 22055 ) XV-02 Alum Adjust Sus Mount XH

	~~$24.50~~ $19.60		Tamiya ( 22056 ) XV-02 Alu Damper Stay Mount

	~~$27.00~~ $21.60		Tamiya ( 22057 ) XV-02 Carbon Damper Stay Front

	~~$27.00~~ $21.60		Tamiya ( 22058 ) XV-02 Carbon Damper Stay Rear

	~~$33.00~~ $26.40		Tamiya ( 22072 ) RC XV-02 Alum Steering Arms L/R

	$10.50		Tamiya ( 22073 ) XV-02 Carbon Bumper Support

	$19.00		Tamiya ( 22074 ) XV-02RS Stabilizer Set Front/Rear

	~~$48.00~~ $38.40		Tamiya ( 22075 ) XV-02 Reinforced Lower Deck Carbon

	$33.60		Tamiya ( 22076 ) XV-02 Short Damper Stay Set

	$6.75		Tamiya ( 42374 ) VG O-Rings For Gear Differentials

	$9.75		Tamiya ( 51290 ) TRF501X King Pin XV-02

	$3.50		Tamiya ( 51444 ) TRF417 Cross Joint Set

	$13.00		Tamiya ( 51445 ) TRF417 Wheel Axle - 2pcs

	$5.25		Tamiya ( 51503 ) XV-01 Chassis C Parts - (Front Upright) XV-02

	$8.00		Tamiya ( 51505 ) XV-01 Chassis F Parts - (Suspension Arm) XV-02

	$3.40		Tamiya ( 51636 ) TRF420 3x43mm Sus Shafts 4pcs

	$9.75		Tamiya ( 51697 ) XV-02 B Parts Bumper

	$6.00		Tamiya ( 51698 ) XV-02 D Parts Caster Block, 6 Deg

	$6.00		Tamiya ( 51699 ) XV-02 E Parts Rear Uprights

	$14.00		Tamiya ( 51700 ) 37mm Swing Shafts For Assembly Univ Shaft

	$2.70		Tamiya ( 51701 ) XV-02 Urethane Bumper

	$12.50		Tamiya ( 53709 ) Suspension Ball 8pcs - Fluorine Coated

	$3.99		Tamiya ( 54034 ) DB01 Carbon Reinforced - D-parts (Caster Block) DB01/TRF501X/TRF502X/XV-02

	$17.50		Tamiya ( 54379 ) Aluminum Sus Mount (XJ) - XV01

	$2.30		Tamiya ( 54384 ) 5mm Body Adjustment O-Ring - 10pcs

	$6.00		Tamiya ( 54442 ) Carbon Reinforced C Parts - XV-01 (Front Uprights) XV-02

	$9.25		Tamiya ( 54444 ) Carbon Reinforced F Parts XV-01/XV-02 (Sus Arms, 2pcs)

	$7.50		Tamiya ( 54747 ) 5mm Suspension Ball - Low Friction Resin (8pcs)

	$18.00		Tamiya ( 54802 ) Alum Steering Bridge TB-05 / XV-02

	~~$21.00~~ $16.80		Tamiya ( 54883 ) Separate Sus Mounts (XB) Aluminum Adjustable

	~~$21.00~~ $16.80		Tamiya ( 54884 ) Separate Sus Mounts (A) Aluminum Adjustable

	$3.90		Tamiya ( 54922 ) Bushing For Adjustable Sus Mounts

	~~$24.50~~ $19.60		Tamiya ( 54938 ) Brass Adjust Sep Sus Mount (XB) TRF420/TRF419/TA07/TB05

	~~$24.50~~ $19.60		Tamiya ( 54939 ) Brass Adjust Sep Sus Mount (A) TRF420/TRF419/TA07/TB05

	$1.19		Tamiya ( 84195 ) 3mm O-Ring (10pcs) - Black

	$12.00		Tamiya ( 22051 ) XV-02 Setting Spring Set

	$3.60		Tamiya ( 50600 ) CVA Shock Oil Seal: 44002 - CVA Mini Shock Unit II

	$5.75		Tamiya ( 53334 ) Low Friction Dampener V Parts

	$7.25		Tamiya ( 53574 ) TRF Damper Rod Guide & O-Ring Set (4 Sets)

	$3.50		Tamiya ( 53577 ) TRF Damper Urethane Bushing (Red)

	$13.00		Tamiya ( 53974 ) Front Spring Set TRF501X/XV-01/XV-02

	$12.50		Tamiya ( 54506 ) Big Bore Damper Spring Set Aeration Type (Front) (4WD)

	$12.50		Tamiya ( 54507 ) Big Bore Damper Spring Set Aeration Type (Front) (2WD)

	$6.75		Tamiya ( 54871 ) Reinforced V Parts For TRF Dampers

	~~$79.00~~ $63.20		Tamiya ( 54993 ) Aluminum Damper Set TT-02B/DF-03/XV-02/BB-01

	$3.80		Tamiya ( 84292 ) TRF Damper Shaft Guide - Grooved (4pcs)

	$3.40		Tamiya ( 19804205 ) 5mm Ball Connector: 43514 - 4pcs.

	$3.70		Tamiya ( 19804206 ) 5mm Ball Connector Nut: 43514 - 4pcs.

	$3.19		Tamiya ( 19805780 ) 3x23mm Turn-Buckle Shaft - 58274

	$2.99		Tamiya ( 19805800 ) RC Turnbuckle Shaft: 58276 - 3x32mm

	$4.70		Tamiya ( 53601 ) Tamiya Low Friction Adjuster 5mm (8)

	$11.00		Tamiya ( 53968 ) Hex Head Ball Connector - 5x5mm

	$11.00		Tamiya ( 53969 ) Hex Head Ball Connector - 5x8mm

	$5.75		Tamiya ( 54248 ) Aluminum Turnbuckle Shaft - 3x23mm (2pcs)

	$5.75		Tamiya ( 54249 ) Aluminum Turnbuckle Shaft - 3x32mm (2pcs)

	$4.60		Tamiya ( 54869 ) 5mm Reinforced Adjusters Open Face (Long/8pcs)

	$19.99		Yeah Racing ( TXV2-017SV ) 64 Titanium Turnbuckle Set For Tamiya XV-02

	$5.25		Tamiya ( 19803403 ) 5x15.2x0.2mm Shim: 42382

	$3.80		Tamiya ( 19803417 ) 2x8mm CS Hex Screw: 58707 Black Countersunk Head

	$2.30		Tamiya ( 19804228 ) 3mm Washer: 49349

	$1.59		Tamiya ( 19804310 ) 2.6x5mm Screw: 49401 5pcs

	$4.49		Tamiya ( 19804392 ) 3x10mm Tapping Screw: 58447 - 10pcs

	$5.25		Tamiya ( 19804394 ) 2.6x10mm Screw: 58447 - Binding Screw 5pcs

	$2.99		Tamiya ( 19804412 ) RH Socket Screw: 58331 3X23mm

	$8.99		Tamiya ( 19804641 ) 5.5x5.0mm Spacer: 51496

	$8.00		Tamiya ( 19804646 ) 5.0 x 3.0 x 2.5mm Spacer: 58528

	$3.99		Tamiya ( 19805645 ) 3x0.7mm Spacer: 49132 - 10pcs

	$2.60		Tamiya ( 19805746 ) 3x8mm Cap Screw: 58274

	$3.39		Tamiya ( 19805764 ) 3x20mm Screw: 49175

	$3.30		Tamiya ( 19805991 ) 3mm Lock Nut: 58345

	$2.20		Tamiya ( 50575 ) 2.6x10mm Tap Screw: 44002

	$3.60		Tamiya ( 50576 ) 3x3 Grub Screw: 44002

	$2.20		Tamiya ( 50588 ) 2mm E-Ring: 44002

	$2.20		Tamiya ( 51211 ) 3x5 Flat Screw - 5pcs - TA05 Spur gear screws

	$2.20		Tamiya ( 51624 ) 3x6mm Hex Head Screws Steel

	$2.20		Tamiya ( 51626 ) 3x8mm Hex Head Screws Steel

	$2.20		Tamiya ( 51628 ) 3x10mm Hex Head Screws Steel

	$2.20		Tamiya ( 51629 ) 3x10mm CS Hex Head Screws Countersunk Steel

	$2.20		Tamiya ( 51630 ) 3x12mm Hex Head Screws Steel

	$11.00		Tamiya ( 53539 ) 5.5 Aluminum Spacer Set

	$7.25		Tamiya ( 53585 ) 3mm Shim Set - 3 Types / 10pcs each

	$7.25		Tamiya ( 53587 ) 5mm Shim Set - 3 Types

	$6.50		Tamiya ( 54155 ) 3mm Thin Aluminum Lock Nut - 5pcs Blue

	$6.75		Tamiya ( 54573 ) 0.75mm Wheel Spacer - Blue / 8pcs

	$3.40		Tamiya ( 54855 ) 5.5x0.5mm POM Spacer

	$29.99		Yeah Racing ( TSAS-0001 ) Titanium Screw Assorted Set W/Box For Tamiya XV-02

	$3.00		Tamiya ( 51537 ) 6mm Snap Pin (15pcs)

	$19.00		Tamiya ( 54157 ) Touring Car Cockpit Set - Right Hand Drive

	~~$21.50~~ $17.20		Tamiya ( 54298 ) Touring Car Cockpit Set - Left Hand Drive

	$17.00		Tamiya ( 54159 ) Hi Torque Servo Saver Horn - F104 Aluminum/Blue

	$12.00		Tamiya ( 51000 ) Hi-Torque Servo Saver - Black

	$4.50		Tamiya ( 54863 ) HI-Torque Servo Saver Cap Aluminum
