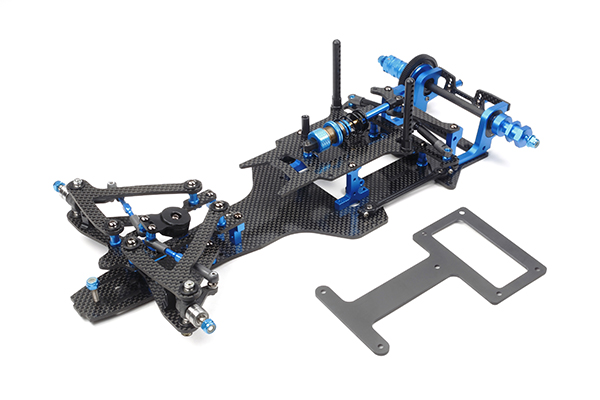

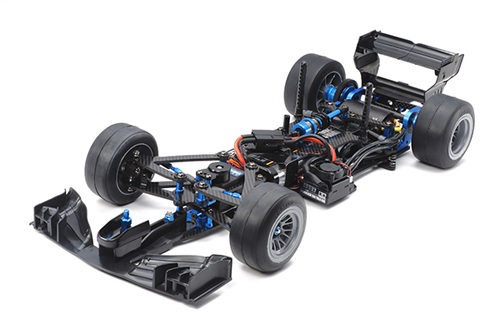

The TRF103 is a high-spec formula one chassis that takes the genre to a new level. This hi-spec 2WD formula chassis is built around carbon fiber lower and upper decks, with front lower and upper arms also crafted from carbon fiber plate. Front camber and caster angles can be altered via the upper arm attachment components. At the rear of the car, there is a choice of 2 suspension types: a link setup for high-grip surfaces and a T-bar setup for lower grip conditions. Chassis roll is regulated by individual left and right friction dampers, while changing the carbon fiber rear shaft position allows 2 different wheelbases.

Featured Components:

2.5mm thick Carbon Fiber Lower Deck

2.5mm thick Carbon Fiber Front Lower Arms

2.5mm thick Carbon Fiber Middle Brace

2.5mm thick Carbon Fiber Lower Brace

2.0mm thick Carbon Fiber Rear Bulkhead Plate

Carbon Fiber Rear Shaft & Integrated Diff Housing

TRF Damper (HL Cylinder & Titanium Coated Shaft)

2.0mm thick Carbon Fiber Upper Deck

2.5mm thick Carbon Fiber Front Upper Arms

2.5mm thick Carbon Fiber Upper Arm Mount

2.5mm thick Carbon Fiber Upper Brace

FRP T-Bar

Left & Right Roll Dampers

Aluminum Servo Mounts

Aluminum Clamp Type Wheel Hubs

Aluminum Motor Mount

Aluminum Diff Housing

Aluminum Motor Spacer

Aluminum Turnbuckle Shafts

Hi-Torque Servo Saver

04 Module Spur Gear (96T)

04 Module Pinion Gear (24T)
