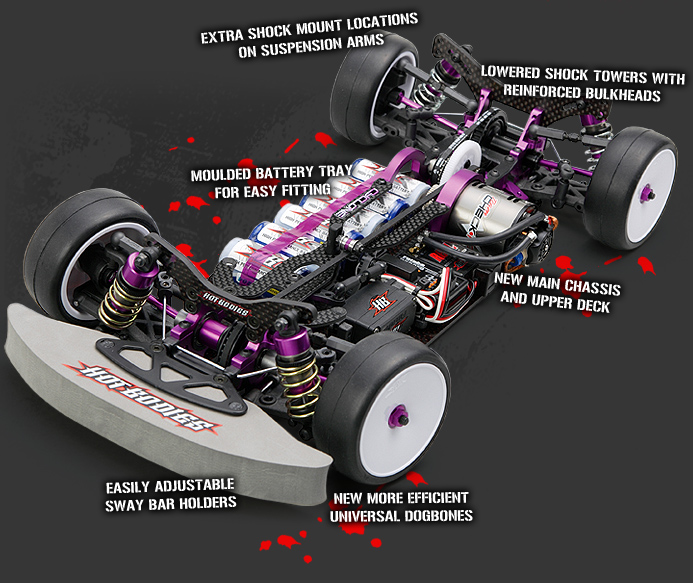

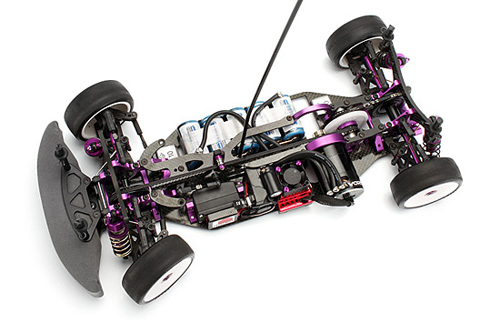

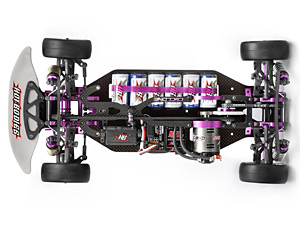

FEATURES: Chassis: Main, woven graphite 0.098" (2.5mm) thick, 0.079" (2mm)
thick upper deck that is compatible with Hot Bodies' Adjustable
Torsion Control System that connects the main chassis and upper
deck with variable levels of stiffness
0.079" (2mm) thick FRP middle block deck for increased lateral
flexibility and rear traction

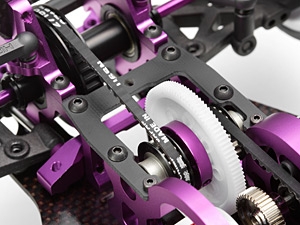

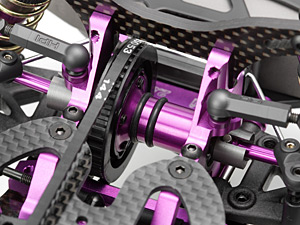

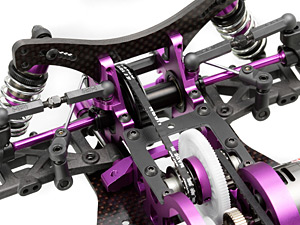

Drive: Dual belt four wheel drive
Ball Bearings: Full set 18 total, 16 in drivetrain, 2 in steering

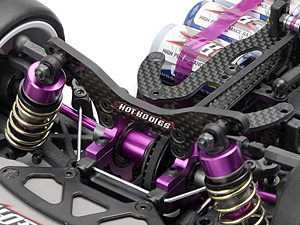

Shocks: Oil-filled, hard anodized threaded shocks with volume
bladders, low friction O-rings and upper & lower threaded caps
with 0.14" (3.65mm) thick woven graphite shock towers
Front Differential: Ball type, one-way can be converted to locking
spool by inserting locking pins

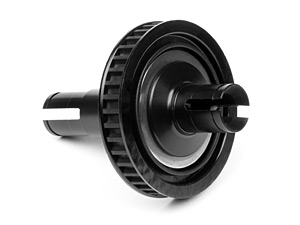

Rear Differential: Pro Spec ball type designed for low wear and
longer time between rebuilds
Bumper: Front, foam
Spur Gear: Constructed of Delrin plastic, 64 pitch, 100 tooth
Wheel Hubs: 12mm hex with capture pins

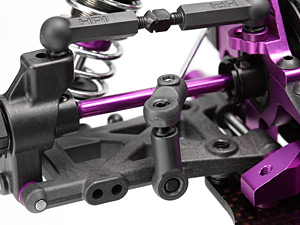

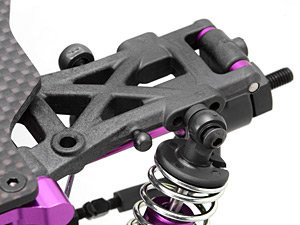

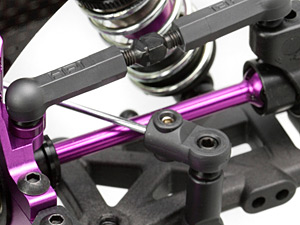

Suspension: Completely adjustable including front sweep, anti dive
anti-squat, kick-up, wheelbase, weight balance, front and rear
ride height, front and rear sway bars, reversible carbon composite
suspension arms
Caster: Adjustable, caster/toe-in refers to the angle of the front
suspension when viewed from the side of the car in relation to the
chassis
Camber: Adjustable, camber refers to the angle of the tops of the
tires from vertical when when viewed from front or behind vehicle
Steering: Dual ball bearing equipped with servo saver
INCLUDES: Hot Bodies on-road Touring Car Kit with oil-filled shocks, aluminum
motor mount, 64 pitch spur gear, 12mm hex hubs, two decal sheets
molded battery tray and instruction manual
_
REQUIRES: Radio: 2-channel with one servo
Radio Batteries: Eight AA size
Speed Control: Electronic of modeler's choice to match selected motor
Motor: 540 size brushed or brushless motor
Pinion Gear: 64 pitch
Wheels: 26mm touring car type
Tires: 26mm touring car type

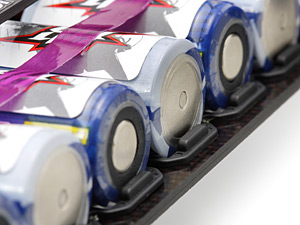

Battery: Sub-C size 6-cell flat w/standard connector
Charger: AC/DC timed or peak for 6-cell battery
Body: 190mm touring car
Paint: Spray or brush-on
Misc. Items: Building and track equipment
SPECS: VEHICLE-
Length: 14.4" (365mm)
Width: 7.5" (190mm)
Weight: 51.1oz (1450g) bare chassis
Wheelbase: 10.1" (258mm) adjustable
Drive Ratio: 2.167, suitable for brushless motors
|
|
