Nissan R91CP Group-C (Limited Edition Re-Release)
More Images Click

Restocked Items
Car Kits > 1/10 Onroad
Maker:
Tamiya View more
Part Number: 47531
Our Price: $206.00 30% off (Save $61.80)
$144.20
Quantity: Coming Soon !!



Description

In 1992 Nissan won the 24 Hours of Daytona with the R91CP driven by Japanese drivers (Kazuyoshi Hoshino, Toshio Suzuki and Masahiro Hasemi).

It would be the first time that a Japanese car company won this historic endurance race.

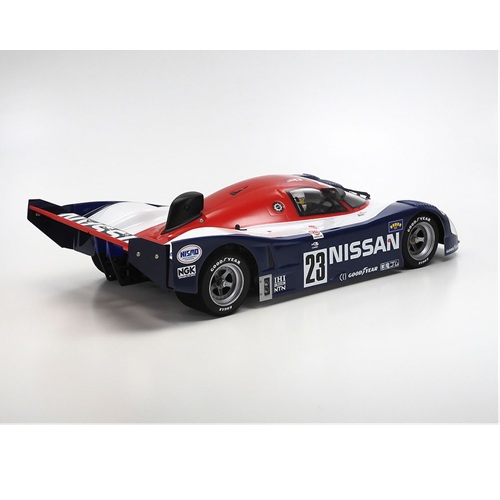

Tamiya has recreated this iconic race car on a 1/10 scale chassis using a detailed polycarbonate body with a driver cockpit interior.

The highly detailed body is mounted on a direct drive platform employing foam tires for superior traction on smooth driving surfaces.

This kit was originally released in 1992 then released again in 2012.

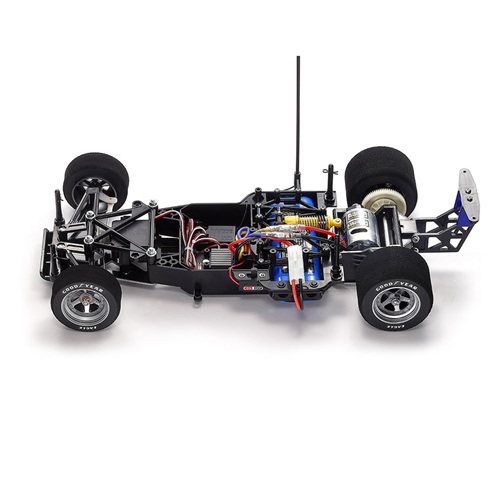

Direct-Drive 2WD Chassis
Based around an ABS plastic bathtub, with space frames front and rear and FRP plates, the chassis is a composite design that offers a rigid base to back up the fluid suspension: the result is a crisp, responsive driving experience.

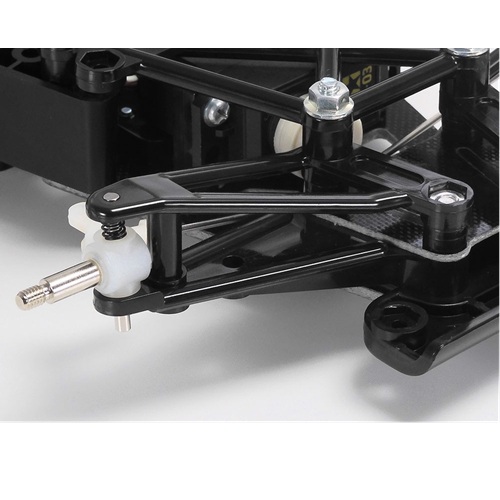

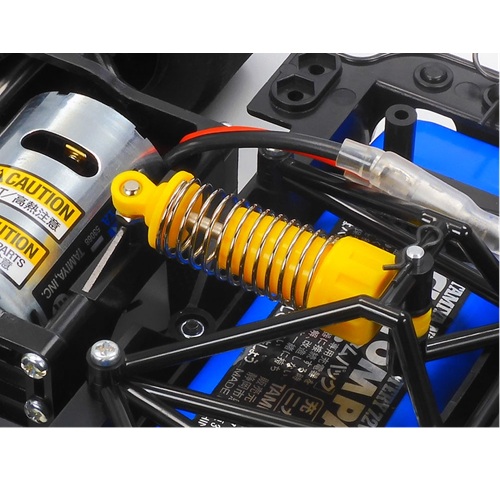

At the front, it has an independent coil-sprung king pin suspension setup, while the rear rigid suspension is a 3-point design with a 1.5mm thickness FRP T-bar and single CVA oil damper; teamed up with sponge tires front and rear, they ensure superb traction on smooth asphalt and carpeted surfaces.

Additionally, use of spacers allows two different front and three rear ground clearance setups.

FEATURES:

- 1/10 scale R/C model assembly kit. Length: 480mm, width: 204mm, height: 109mm. Wheelbase: 280mm.

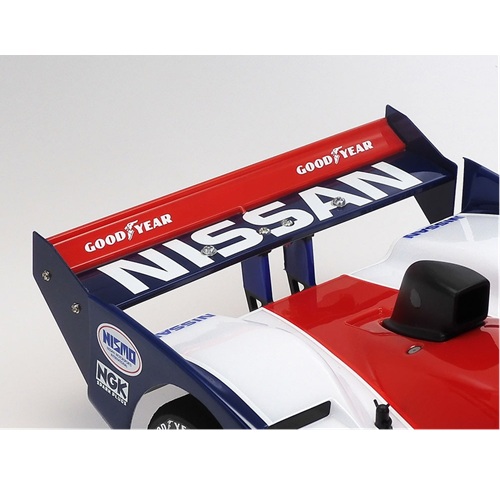

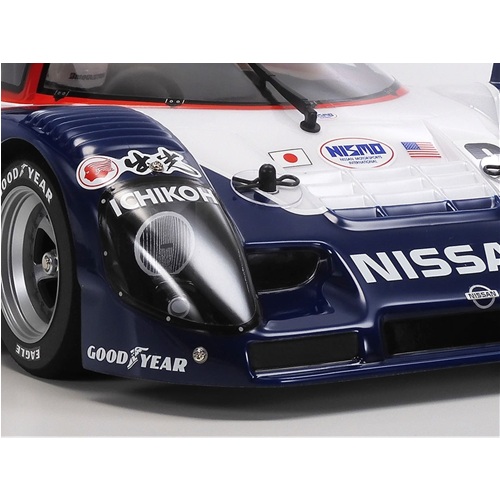

- The distinctive low-profile aerodynamic body, wing and front light cases are separately molded in polycarbonate. (Note that LED lights cannot be attached.)
- Polycarbonate body and wing have pre-made holes.

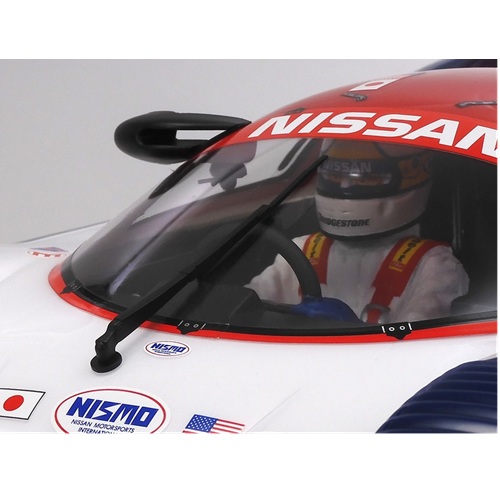

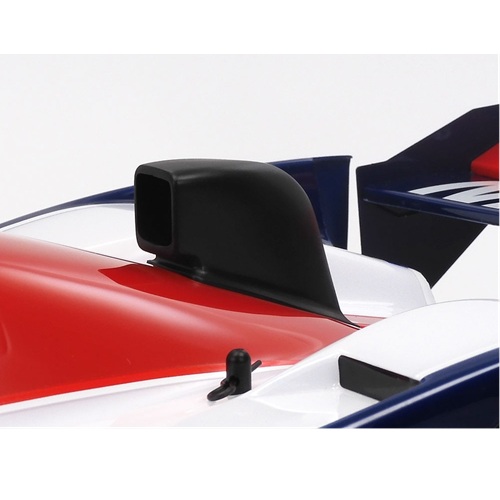

- Black nylon plastic parts realistically recreate side mirror, wing stay, induction pod and windshield wiper.

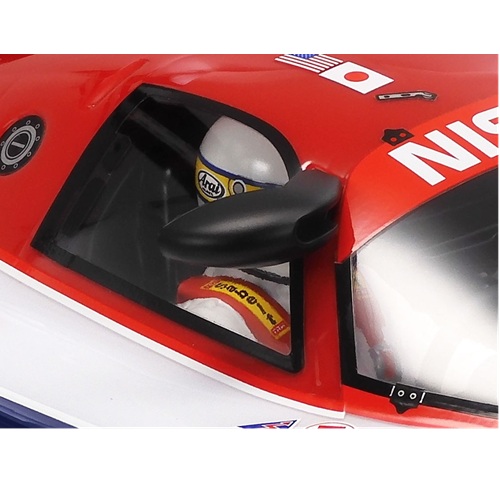

- Features a styrene plastic cockpit and driver figure.

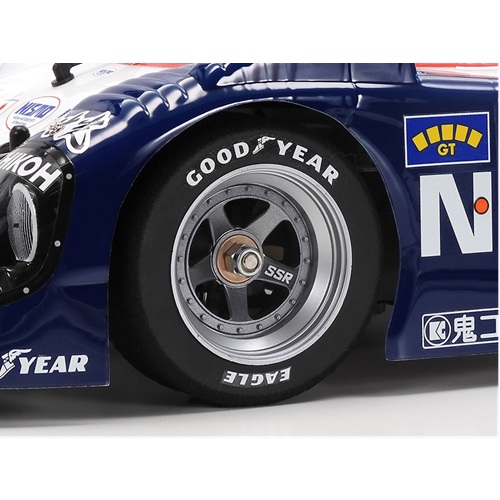

- Gun metallic 5-spoke wheels are paired with high-grip sponge tires.
- Comes with helmet markings of three Japanese drivers (Kazuyoshi Hoshino, Toshio Suzuki and Masahiro Hasemi).

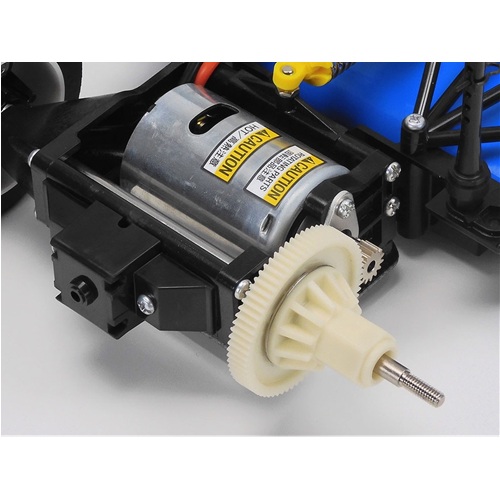

- Includes 540Type Brushed Motor.
- Required to complete: 2-channel radio, steering servo, ESC, 7.2-7.4-volt battery with compatible charger, and Tamiya PS paints.

More Images

Click image to Enlarge(+)
Parts List
Sort By Category New Items Maker
In-Stock Items Only
$13.00 Tamiya ( 9401900 )
Front Tire: 47484
$16.50 Tamiya ( 9401901 )
Rear Tire: 47484
$2.70 Tamiya ( 9808051 )
RC Pressure Disk (Diff Ring): 19808051
$7.75 Tamiya ( 53042 )
Tamiya Ball Diff Grease Set
$11.00 Tamiya ( 53379 )
HCCA Light Weight Differential Ball 20pcs - 3mm
$14.00 Tamiya ( 53065 )
1260 Sealed Bearing/2pcs - Y6505
$9.00 Tamiya ( 53136 )
F103 / F104 1 Piece Ball Thrust Bearing
$5.99 Tamiya ( 3485036 )
F103 Rear Shaft Steel: 58198/194/174/156 - X10406
$2.00 Tamiya ( 9805385 )
Rubber Bushing: 58178/176
$1.90 Tamiya ( 84174 )
5mm Disk Spring - 5pcs
$1.19 Tamiya ( 84195 )
3mm O-Ring (10pcs) - Black
$2.70 Tamiya ( 50597 )
Damper O-Ring: 44002
$3.60 Tamiya ( 50600 )
CVA Shock Oil Seal: 44002 - CVA Mini Shock Unit II
$6.25 Tamiya ( 54717 )
Silicone Oil #900
$7.50 Tamiya ( 9805611 )
5x9mm Ball Connector: 56312 - 5pcs
$2.80 Tamiya ( 50590 )
4mm Ball Connector: 44002 (Gold Color, 5pcs)
$2.60 Tamiya ( 50633 )
4mm Adjuster: 44002 - 6pcs
$3.50 Tamiya ( 9803340 )
3X8mm Tapping Screw: 47477
$4.40 Tamiya ( 9803406 )
4 x 42mm CS Screw: 47484 - Countersunk
$2.40 Tamiya ( 9804159 )
3x10mm Screw: 58299 TB Evolution III (10pcs)
$1.89 Tamiya ( 9804201 )
3x18mm C.Sunk H.Screw:43514 - 2pcs F103
$2.40 Tamiya ( 9804230 )
GP 2mm Nut: 44043
$5.25 Tamiya ( 9804394 )
2.6x10mm Screw: 58447 - Binding Screw 5pcs
$4.80 Tamiya ( 9804576 )
4 x 45mm Screw: 84262 - Countersunk
$2.70 Tamiya ( 9805629 )
GP 3x12mm Tap Screw: 44025
$3.99 Tamiya ( 9808235 )
4mm Nut: 58431
$2.20 Tamiya ( 50575 )
2.6x10mm Tap Screw: 44002
$3.70 Tamiya ( 50576 )
3x3 Grub Screw: 44002
$2.30 Tamiya ( 50577 )
3x10mm Tapping Screw: 44002
$2.20 Tamiya ( 50578 )
3x10mm Counter Screw: 44002 Tapping Screw
$2.20 Tamiya ( 50581 )
3x12mm Counter Screw: 44002
$2.20 Tamiya ( 50586 )
3mm Washer: 44002
$2.30 Tamiya ( 50588 )
2mm E-Ring: 44002
$3.40 Tamiya ( 50197 )
Snap Pin Set - Y2022 Body Clip
$3.20 Tamiya ( 51537 )
6mm Snap Pin (15pcs)
$5.50 Tamiya ( 50171 )
Heat Resis Double Sided Tape - SP1171
$2.49 Tamiya ( 50595 )
Nylon Band w/Hook: 44002 10pcs
$1.40 Tamiya ( 10309 )
JR Mini 4WD 2mm Washer - Small/20pcs
