Specifications:
- High Torque High Speed Brushless Servo

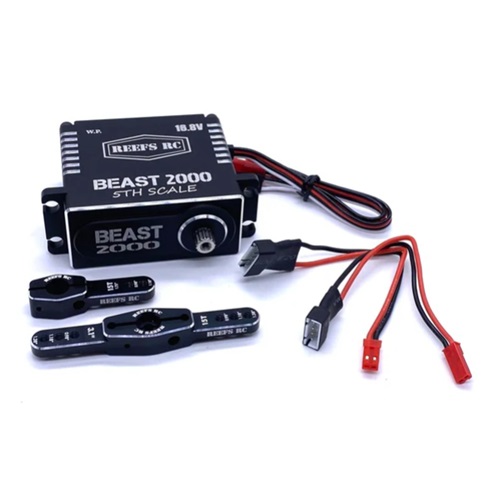

- INCLUDES: REEFS SINGLE HORN / REEFS DOUBLE HORN / 3S & 4S CONNECTOR
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Voltage 7.4V - 16.8V
- Mechanical Angle: No Limit
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 5 Ball Bearings /
- Weight: 10oz / 285g / Wires: 22AWG
- Dimension: 2.59 x 1.18 x 2.32 (LWH)
- Torque: 1000oz @ 10v/ 1250oz @11.1v/ 1450oz @12v / 2000 @ 16.8v
- Speed: .10sec @10v/.11sec @11.1v/.10sec @12v/ .09sec @ 14.4v / .08sec @ 16v
- Spline: 15T / Dead Band Width: 2uSec
Hardware Included:
(1) Servo Horn Screw 3.5x8mm
(3) 3x16mm Cap Head Screws for end of horns.
(4) 2mm Horn Clamping Cap Head Screws
Load Current:
7700 mA @ 10.0V
8300 mA @ 11.1V
9200 mA @ 12.0V
10600 mA @ 14.4V
11000 mA @ 16.0V
Unload Current:
950 mA @ 10.0V
1000 mA @ 11.1V
1060 mA @ 12.0V
1200 mA @ 14.4V
1300 mA @ 16.0V
|
