Specifications:
- High Torque High Speed Brushless Servo

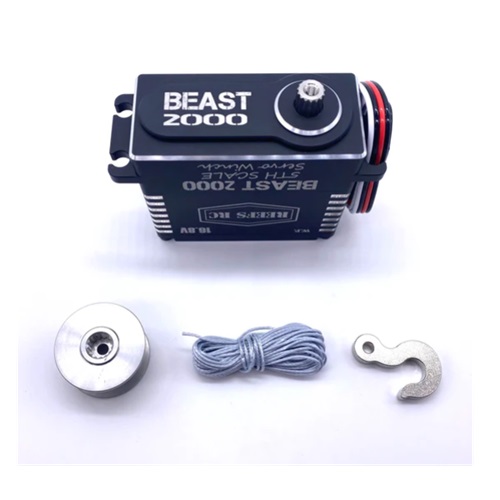

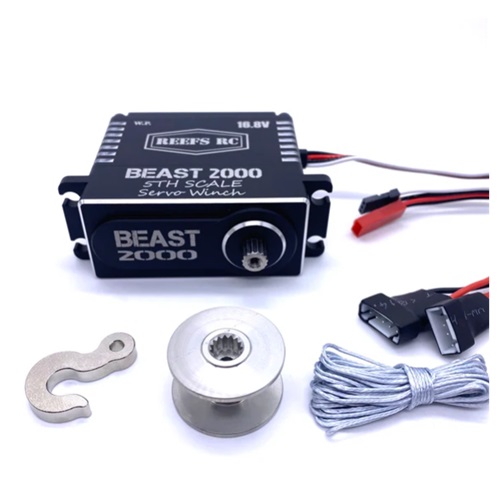

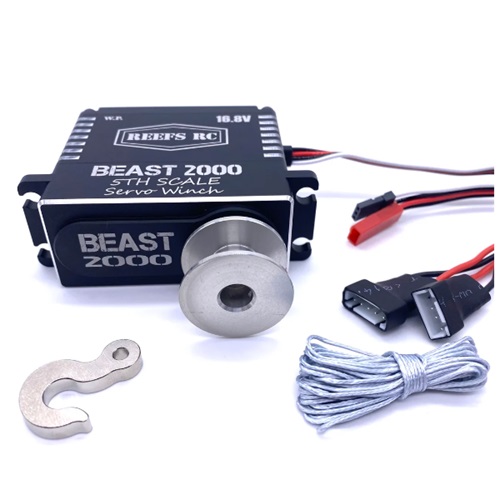

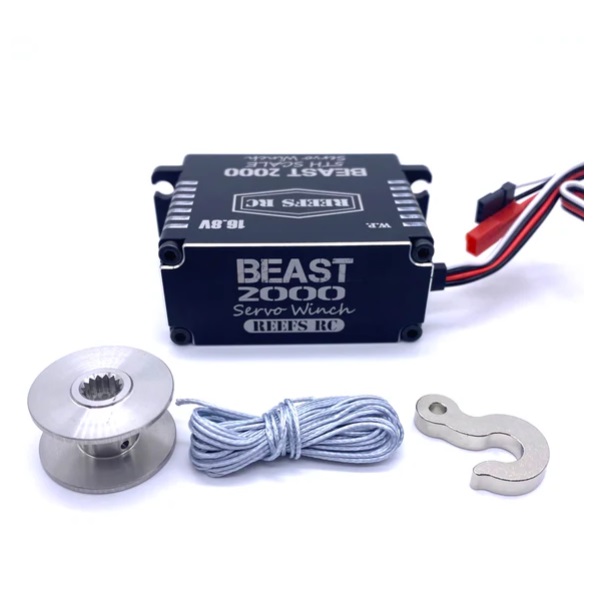

- W/: REEFS SPOOL / REEFS 5TH SCALE HOOK / SYN. LINE / 3S & 4S CONNECTOR
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Voltage 7.4V - 16.8V
- Mechanical Angle: No Limit
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 5 Ball Bearings /
- Weight: 10oz / 285g / Wires: 22AWG
- Dimension: 2.59 x 1.18 x 2.32 (LWH)
- Torque: 1000oz @ 10v/ 1250oz @11.1v/ 1450oz @12v / 2000 @ 16.8v
- Speed: .11sec @10v/.105sec @11.1v/.10sec @12v/ .09sec @ 14.4v / .08sec @ 16v
- Spline: 15T
- Dead Band Width: 2uSec
|
