SPECIFICATIONS:

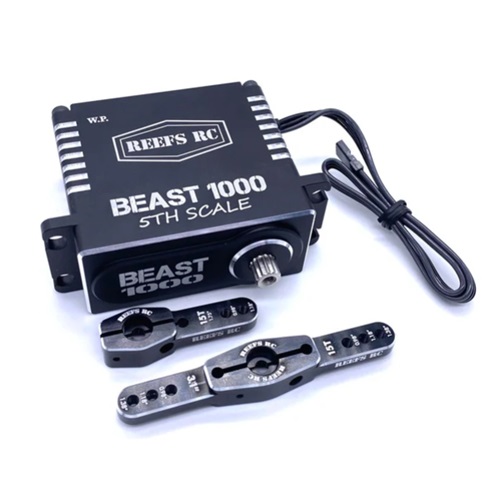

- High Torque High Speed Brushless Servo
- INCLUDES: REEFS SINGLE HORN / REEFS DOUBLE HORN
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Voltage: 4.8V - 8.4V
- Mechanical Angle: No Limit
- Internal: Steel Gears / All CNC Aluminum Casing
- Bearing Type: 5 Ball Bearings /
- Wires: 22AWG
- Weight: 10oz / 285g
- Dimension: 2.59 x 1.18 x 2.32 (LWH)
- Torque: 800oz @ 6v/ 900oz @7.4v/ 1080oz @8.4v
- Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
- Spline: 15T / Dead Band Width: 2uSec
- BEC Not Req. (Recommended for max performance)
- Load Current: 8800 mA @ 4.8V 9800 mA @ 6.0V 10500 mA @ 7.4V 11000 mA @ 8.4V
- Unload Current: 550 mA @ 4.8V 600 mA @ 6.0V 700 mA @ 7.4V 820 mA @ 8.4V
Hardware Included:
(1) Servo Horn Screw 3.5x8mm
(3) 3x16mm Cap Head Screws for end of horns.
(4) 2mm Horn Clamping Cap Head Screws |
