TB EVO.7 Chassis Kit

More Images Click

Car Kits > 1/10 Onroad

Maker:

Tamiya

Part Number:

42315

Our Price:

~~$1,068.00~~ 30% off (Save $320.40)
$747.60

Quantity:

Coming Soon !!
Free Shipping !!

Description

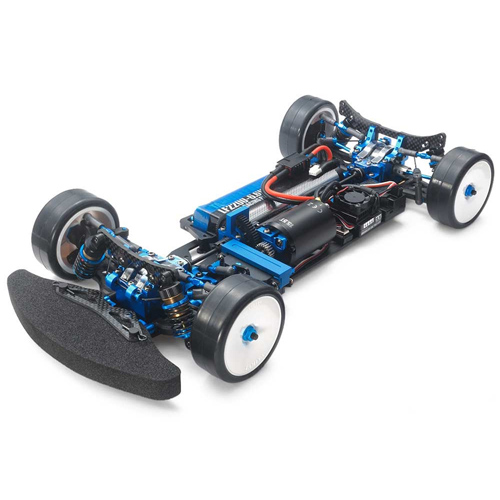

This is the 7th generation TB EVO chassis. The new look TB EVO. 7 takes this chassis series, which is the pinnacle of Tamiya shaft-driven 4WD, in a brand-new direction: multiple selectable motor positions, the removal of an upper top deck with a stiffener used on the chassis deck in its place.

- 1/10 scale shaft-driven 4WD chassis assembly kit. Length: 371mm, Width: 185mm,

- Wheelbase: 258mm.

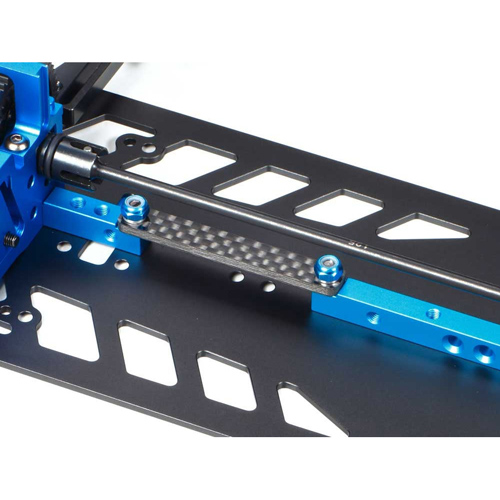

- The chassis is based around a 2mm thick aluminum lower deck and 6mm thick center stiffener, which give a blend of rigid pitch damping and flexible roll. The number of screws used to attach the stiffener can be changed to alter chassis rigidity.

- The lack of an upper deck lowers the chassis' center of gravity.

- A largely overhauled layout includes updated motor positions and bulkhead design.

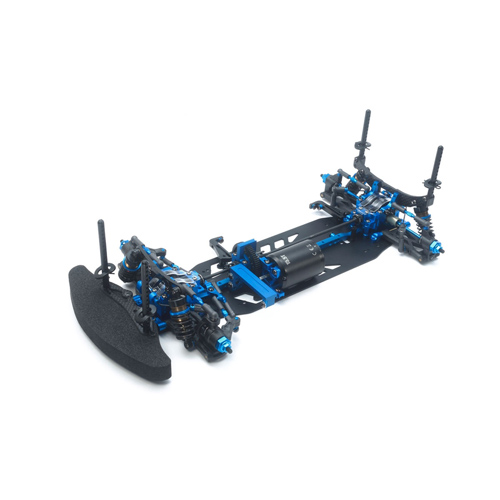

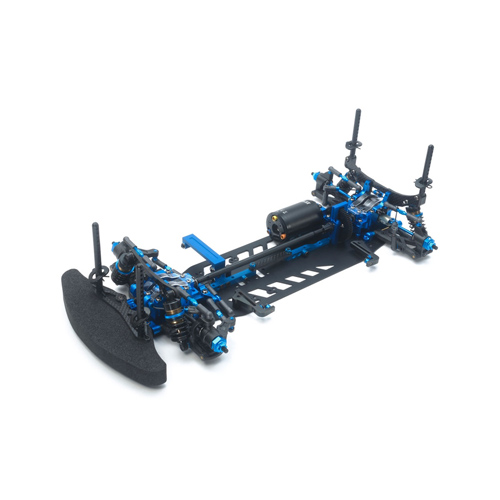

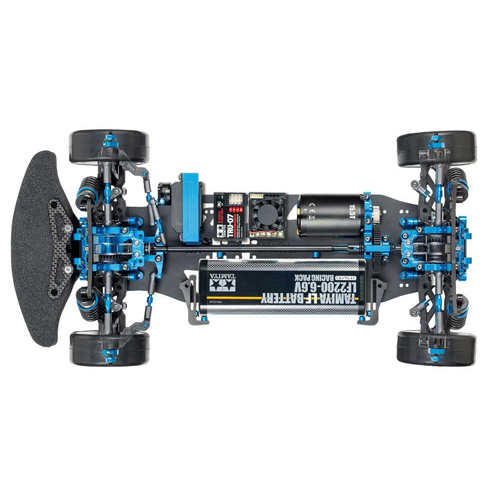

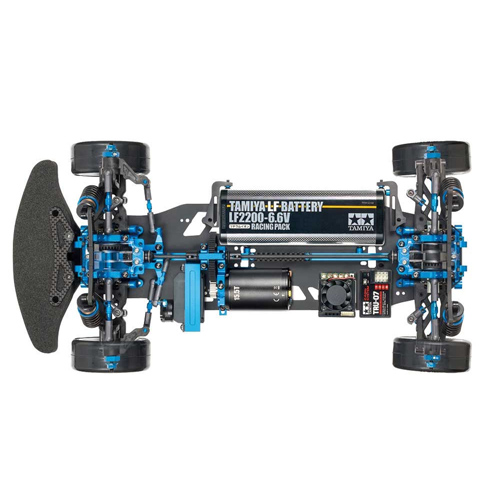

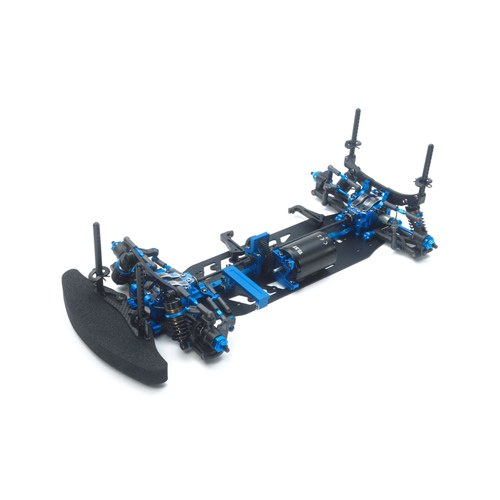

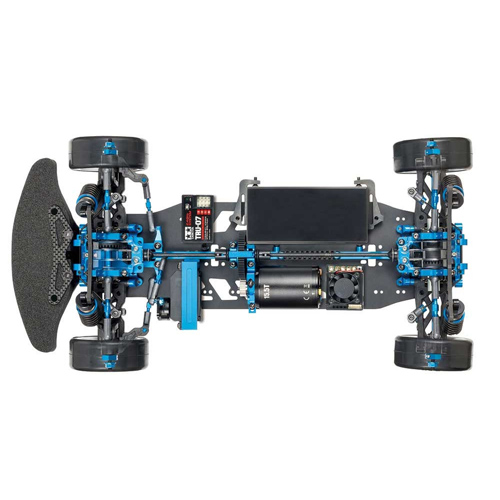

- The motor is longitudinally mounted. Users can choose from 3 layouts (front; mid; rear) to adjust performance depending upon track conditions and driving style.

- Equipped with TRF super short big bore dampers.

- Motor clearance can be adjusted simply from above, for quick in-pit tweaks.

- Steering linkage components are installed directly onto the bulkhead as opposed to being attached to the chassis. This removes any effect upon chassis roll.

- Highly-efficient shaft-driven 4WD is achieved with a front direct coupling and WO universal shafts, plus a rear gear (oil-filled) differential unit and aluminum drive shafts.

- Equipped with TRF418 suspension arms and TRF419 rear uprights

More Images

Click image to Enlarge(+)

Parts List

Sort By Category New Items Maker

In-Stock Items Only


	$7.25		Tamiya ( 42143 ) 4mm Alum Serrated Wheel Nut - 4pcs Blue

	~~$25.00~~ $20.00		Tamiya ( 53570 ) Clamp Type Alum Wheel Hub (4mm)

	$3.70		Tamiya ( 51548 ) TB04 06 Module Spur Gear - 66T

	$5.25		Tamiya ( 9803042 ) 740 Ball Bearing: 42317

	$8.99		Tamiya ( 42113 ) 1050 Sealed Bearing - (2 pcs) fluorine coated seal

	$9.99		Tamiya ( 42115 ) 1510 Sealed Bearing - (2 pcs) Fluorine Coated Seal

	$4.90		Tamiya ( 42220 ) 1050 Ball Bearing - 3mm Thick, 2pcs 5x10x3 for Tamiya DCJ

	$9.99		Tamiya ( 3450746 ) Upper Arm Mount A: 42301 - Black TRF419X

	$9.99		Tamiya ( 3450747 ) Upper Arm Mount B: 42301 - Black TRF419X

	$7.75		Tamiya ( 3450860 ) Input Shaft: 42315

	$9.99		Tamiya ( 3450866 ) 160mm Prop Shaft: 42315 - Black

	$8.99		Tamiya ( 3450867 ) 102mm Prop Shaft: 42315 - Black

	$7.99		Tamiya ( 3450868 ) 56mm Prop Shaft: 42315 - Black

	$15.99		Tamiya ( 3450875 ) Battery Mount A: 42315 Black

	$15.99		Tamiya ( 3450876 ) Battery Mount B: 42315 Black

	$4.29		Tamiya ( 3455898 ) Antenna Post: 49378 - TRF101 / TRF417

	$13.99		Tamiya ( 3458135 ) Front Direct Shaft: 84379 - Blue EVO 6

	$6.99		Tamiya ( 3458143 ) Rear Input Shaft: 84379 EVO 6

	$18.00		Tamiya ( 9803014 ) 33mm Swing Shaft: 58647

	$6.00		Tamiya ( 9803039 ) Steering Post: 42315

	$5.49		Tamiya ( 9803041 ) Stabilizer Rod Stop: 42317

	$5.00		Tamiya ( 9804476 ) 1.6x8mm Shaft: 58492 (5pcs)

	$3.80		Tamiya ( 9804615 ) 7mm O-Ring: 58519

	$10.50		Tamiya ( 9804781 ) Stabilizer End: 42270 - 4pcs / Blue TRF418

	$4.80		Tamiya ( 9804942 ) Flanged Tube: 42301 - 4.6x3.9mm TRF419X

	$4.80		Tamiya ( 9804943 ) Flanged Tube: 42301 - 4.6x4.4mm TRF419X

	$4.50		Tamiya ( 9804947 ) 13mm O-Ring: 42301 TRF419X

	$2.80		Tamiya ( 9805701 ) 5mm O-Ring: 44030 (2pcs)

	$3.80		Tamiya ( 9805776 ) 2x9.8mm Shaft: 49175

	$2.70		Tamiya ( 9805823 ) 2x8mm Shaft: 58284

	$18.00		Tamiya ( 22054 ) 37mm Drive Shafts 2pcs For Double Cardan Joint Shafts

	~~$25.00~~ $20.00		Tamiya ( 42217 ) Drive Shaft (2pcs) - For 44mm Double Cardan Shaft

	~~$25.00~~ $20.00		Tamiya ( 42218 ) Axle Shaft (2pcs) - For 44mm Double Cardan Shaft

	$17.00		Tamiya ( 42219 ) Joint Casing (2pcs) - For 44mm Double Cardan Shaft

	$11.00		Tamiya ( 42221 ) Cross Joint (2pcs) - For Double Cardan Joint Shaft

	~~$30.00~~ $24.00		Tamiya ( 42281 ) TRF418 Stabilizer Set - Front/Rear

	$2.90		Tamiya ( 50594 ) 2x10mm Shaft: 44002 81/49/62 (10)

	$3.70		Tamiya ( 51111 ) 4mm Adjuster - For 3mm Screws 8pcs TRF 416/417 for Stabilizer holder

	$11.00		Tamiya ( 51253 ) Tamiya TB Evo. V B Parts (Bumper)

	$3.50		Tamiya ( 51444 ) TRF417 Cross Joint Set

	$13.00		Tamiya ( 51445 ) TRF417 Wheel Axle - 2pcs

	$4.00		Tamiya ( 51536 ) TRF417 V5 Swing Shaft Cap

	$7.00		Tamiya ( 51549 ) Gear Diff Unit Bevel Gear - TB04

	$3.00		Tamiya ( 51553 ) TB04 Gear Diff Unit Gasket - 2pcs

	~~$24.00~~ $19.20		Tamiya ( 53502 ) 42mm Light Rear Swing Shaft (Blue)

	$11.00		Tamiya ( 53851 ) Titan Coated 46mm Shaft - 2pcs Stainless

	$20.00		Tamiya ( 53917 ) 2.6mm Titanium Sus Shaft - For Reversible Suspension

	$15.00		Tamiya ( 54071 ) TB-03 / FF03 / TA05 / 416 / 417 Sus Mount 1C

	$15.00		Tamiya ( 54073 ) TB-03 / FF03 / TA05 / 416 / 417 Sus Mount 1E

	$3.00		Tamiya ( 54145 ) TB03 EX Urethane Bumper ( 416 / 417 / 415 / TA05 / TA06 / TB03 )

	$8.50		Tamiya ( 54533 ) TB04 Gear Diff Cross Shaft

	$18.00		Tamiya ( 54543 ) Aluminum Cup Joints - For TB04 Gear Diff Unit (L/S)

	$5.75		Tamiya ( 54568 ) TRF418 C Parts - Carbon Reinforced Front Uprights

	$9.00		Tamiya ( 54569 ) TRF418 D Parts - Carbon Reinforced Sus Arms

	$9.25		Tamiya ( 54580 ) Carbon Rein Hub Carrier - 4 Degree/For Double-cardan shafts

	~~$26.00~~ $20.80		Tamiya ( 54620 ) Rigid Separate Sus Mount - (1X)

	~~$26.00~~ $20.80		Tamiya ( 54621 ) Rigid Separate Sus Mount - (1B)

	~~$26.00~~ $20.80		Tamiya ( 54622 ) Rigid Separate Sus Mount - (1C)

	$7.50		Tamiya ( 54648 ) Stabilizer Ball Connector - Fluorine Coated

	$7.00		Tamiya ( 54692 ) TRF419 E Parts - Rear Uprights

	$18.00		Tamiya ( 54696 ) Rigid Separate Sus Mount - (1A)

	$18.00		Tamiya ( 54697 ) Rigid Separate Sus Mount - (05D)

	$18.00		Tamiya ( 54698 ) Rigid Separate Sus Mount - (05E)

	$18.00		Tamiya ( 54699 ) Rigid Separate Sus Mount - (05F)

	$18.00		Tamiya ( 54700 ) Rigid Separate Sus Mount - (05G)

	$7.50		Tamiya ( 54747 ) 5mm Suspension Ball - Low Friction Resin (8pcs)

	$1.45		Tamiya ( 84189 ) Antenna Cap Set

	$11.99		Tamiya ( 9804946 ) Damper Shaft: 42301 TRF419X

	$2.70		Tamiya ( 9805779 ) 2x5mm Cap Screw: 44032

	$8.49		Tamiya ( 42137 ) Competition O-Rings - For Oil Dampers (Blue, 8pcs)

	$17.00		Tamiya ( 42192 ) TRF Damper Large Diameter Retainer - 4pcs

	$12.50		Tamiya ( 42278 ) Damper Lg Dia Spring Set - TRF

	$3.50		Tamiya ( 42293 ) TRF Damper Lg Dia Spring - Super Soft / 2pcs

	$10.50		Tamiya ( 42306 ) Lg Dia Short Spring Set - Touring Car

	$14.50		Tamiya ( 47317 ) TRF Damper Lg Dia Spring - Mica Blue

	$5.75		Tamiya ( 53334 ) Low Friction Dampener V Parts

	$13.00		Tamiya ( 53443 ) Silicone Damper Oil - Soft (#200, #300, #400)

	$13.00		Tamiya ( 53445 ) Silicone Damper Oil - Hard (#800, #900, #1000)

	$6.00		Tamiya ( 54707 ) Silicone Oil #250

	$6.00		Tamiya ( 54708 ) Silicone Oil #300

	$6.00		Tamiya ( 54709 ) Silicone Oil #350

	$6.00		Tamiya ( 54710 ) Silicone Oil #400

	$6.00		Tamiya ( 54711 ) Silicone Oil #450

	$6.00		Tamiya ( 54712 ) Silicone Oil #500

	$6.00		Tamiya ( 54713 ) Silicone Oil #550

	$6.00		Tamiya ( 54714 ) Silicone Oil #600

	$6.00		Tamiya ( 54715 ) Silicone Oil #700

	$6.00		Tamiya ( 54716 ) Silicone Oil #800

	$6.00		Tamiya ( 54717 ) Silicone Oil #900

	$6.00		Tamiya ( 54718 ) Silicone Oil #1000

	$3.90		Tamiya ( 54727 ) Oil Seal (4pcs) - For TRF SS Big Bore Dampers

	$6.00		Tamiya ( 54728 ) Piston (4pcs) - For TRF SS Big Bore Dampers

	$3.90		Tamiya ( 54730 ) TRF Damper Rod Guide Hard 4/pcs

	$4.90		Tamiya ( 9804381 ) Ball Connector: 42106 - 5x9mm Hex Head 2pcs

	$8.50		Tamiya ( 9804940 ) Ball Connector Nut: 42301 - 5mm Damper Ball Connecter TRF419X

	$4.70		Tamiya ( 53601 ) Tamiya Low Friction Adjuster 5mm (8)

	$9.50		Tamiya ( 53640 ) 5mm Aluminum Ball Nut - Blue 10pcs

	$12.50		Tamiya ( 53906 ) 5x5mm Alum Ball Connector - Hex Head

	$12.50		Tamiya ( 53907 ) 5x8mm Alum Ball Connector - Hex Head

	$5.75		Tamiya ( 54248 ) Aluminum Turnbuckle Shaft - 3x23mm (2pcs)

	$5.75		Tamiya ( 54249 ) Aluminum Turnbuckle Shaft - 3x32mm (2pcs)

	$2.50		Tamiya ( 54489 ) Low Friction 5mm Adjusters - (Short) 8pcs

	$2.29		Tamiya ( 9804210 ) 3x6mm C.Sunk Screw: 44042

	$4.70		Tamiya ( 9804246 ) 5x0.5mm Spacer: 49381 (5pcs)

	$14.00		Tamiya ( 9804372 ) 5x1.5mm Spacer: 42106 TRF416 / 417 - 10pcs

	$4.49		Tamiya ( 9804392 ) 3x10mm Tapping Screw: 58447 - 10pcs

	$7.00		Tamiya ( 9804494 ) 5x10x0.1mm Shim: 58492 (10pcs)

	$7.00		Tamiya ( 9804536 ) 5x10x0.3mm Shim: 84288 (10pcs) Tamiya Gear Diff Shim

	$7.25		Tamiya ( 9804780 ) 4x8mm Socket Screw: 42270 - 10pcs TRF418

	$2.00		Tamiya ( 9805185 ) Metal B. Bag 850 2pc: 58058 - Y5801

	$3.99		Tamiya ( 9805645 ) 3x0.7mm Spacer: 49132 - 10pcs

	$6.25		Tamiya ( 9805777 ) 3x2.5mm Grub Screw: 49175 (10pcs)

	$1.99		Tamiya ( 9805831 ) 2x8mm Cap Screw: 58288 2pcs

	$3.60		Tamiya ( 9805888 ) 2.6x10mm Cap Screw: 58299 10pcs

	$5.50		Tamiya ( 9805893 ) 1.6x4mm Cap Screw: 49278 Wheel Hub Screw - 10pcs

	$1.49		Tamiya ( 9808011 ) 3x8mm Screw: 58345

	$2.20		Tamiya ( 50575 ) 2.6x10mm Tap Screw: 44002

	$3.60		Tamiya ( 50576 ) 3x3 Grub Screw: 44002

	$2.00		Tamiya ( 50586 ) 3mm Washer: 44002

	$2.20		Tamiya ( 50588 ) 2mm E-Ring: 44002

	$11.00		Tamiya ( 53539 ) 5.5 Aluminum Spacer Set

	$7.25		Tamiya ( 53585 ) 3mm Shim Set - 3 Types / 10pcs each

	$7.25		Tamiya ( 53587 ) 5mm Shim Set - 3 Types

	$9.50		Tamiya ( 53588 ) 10mm Shim Set - 3 Types (0.1mm,0.2mm,0.3mm Thickness 10pcs each)

	$6.50		Tamiya ( 54155 ) 3mm Thin Aluminum Lock Nut - 5pcs Blue

	$3.00		Tamiya ( 51537 ) 6mm Snap Pin (15pcs)

	$12.00		Tamiya ( 51000 ) Hi-Torque Servo Saver - Black

	$4.50		Tamiya ( 54863 ) HI-Torque Servo Saver Cap Aluminum

	$7.25		Tamiya ( 87099 ) Cera Grease HG
