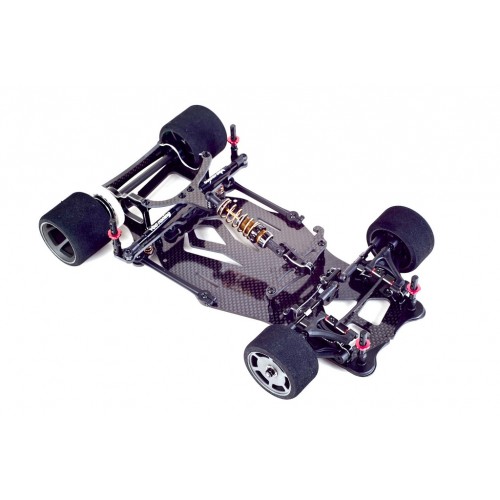

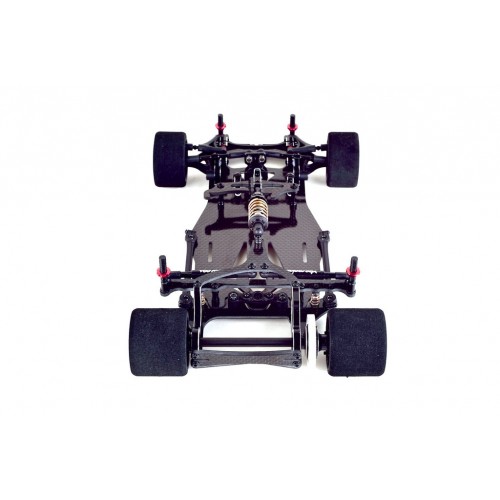

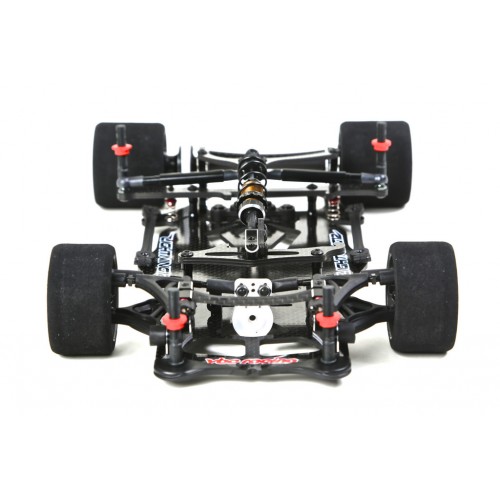

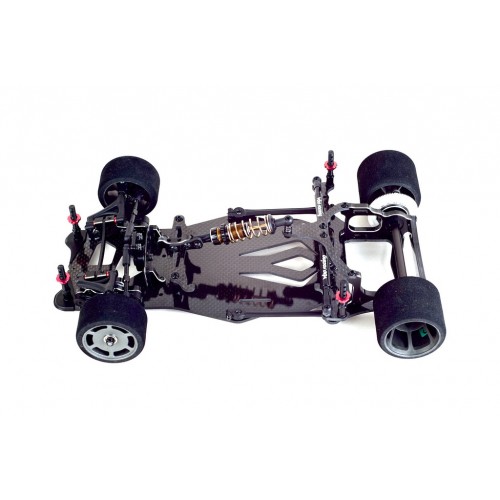

VBC Racing - Lightning12 Version 2 1/12 Pan Car Kit

Car Kits > 1/12 Onroad

Maker:

VBC Racing

Part Number:

D-05-VBC-CK10

Our Price:

$248.99

Quantity:

Out of stock
Free Shipping !!

Technical Data

Base on the race proven Lightning12. The new VBC racing Lightning12 V2 includes multiple upgrade to boost the performance to the next level.

Ultra strong V2 composite materials to provide direct and accurate handling. Aluminum alloy shock mount with intergraded antenna mount to accept anti rollover antenna. 7075 Aluminum alloy body height adjuster. Titanium nitride coated wear resistance kingpin, arm pin and shock shaft. The Lightning12 V2 is a highly tunable machine to bring you to the winner circle.

Features:

Composite V2 suspension parts for zero slop and precious handling

7075 Aluminum alloy shock mount with intergraded antenna mount for fiberglass anti rollover antenna (sold separately)

Titanium nitride coated kingpin, arm pin and shock shaft for long life and smooth operation

Anodized aluminum alloy body height adjuster

2.5mm carbon fiber chassis

Offset inline battery placement for better balance and weight transfer

Aluminum alloy servo mount design to accept different servos

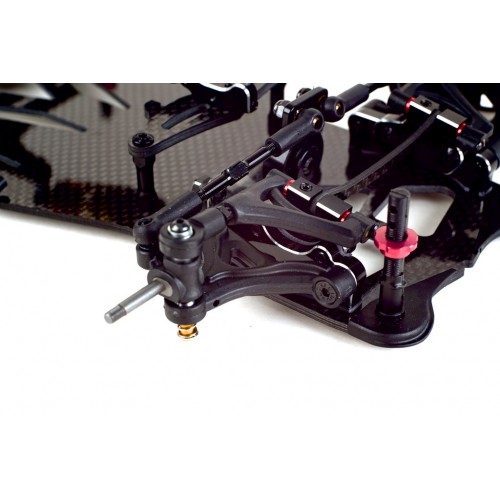

Fully adjustable front end

CNC-machined lowered front arm bulkheads for precise building and adjustment

CNC-machined aluminum caster blocks for durability and to stiffen the upper arm

Reactive caster adjustments 7.5, 5.0, or 2.5

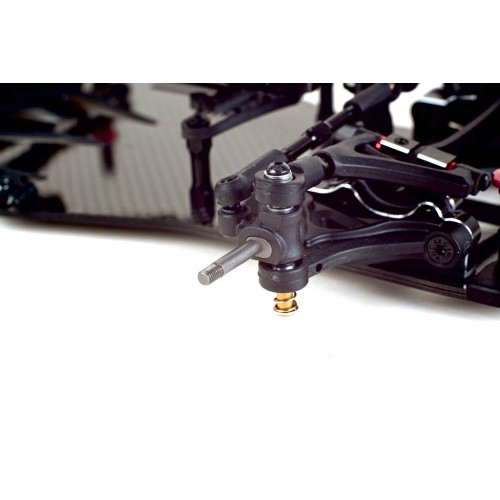

Precise machined front axles

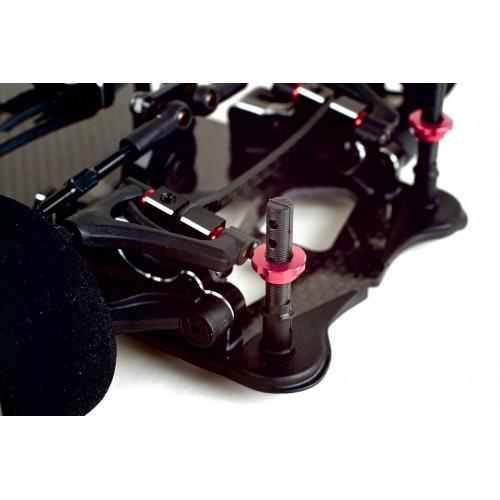

Front ride-height adjustability with one piece shims

Front upper brace to reduce flex for tuning for different track condition

New SuperSteel front camber link turnbuckles for adjustment and durability

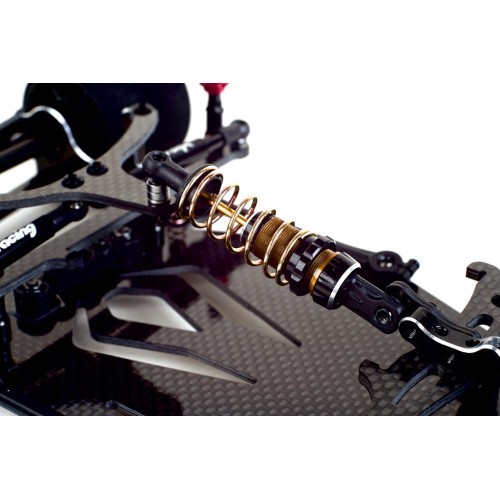

TBX center shock designed for super smooth dampening, fully adjustable, and long shock

Aluminum hard anodized shock body

Aluminum shock cap

Soft silicone bladder

Soft silicone o-rings

Aluminum lightweight rear bulkheads with simple ride height adjuster

Open rear motor mount design for easy access for brushless operation

2.5mm carbon fiber cross brace for support from side hits and flex

Super smooth and slop free VBC Racing Center pivot

Side links made of a special VBC Racing blend to give maximum durability and a slop-free fit

Side springs can be mounted 2 different positions to suit different racing condition

Laterally mounted dampening tubes for smooth side to side dampening making the car easier to drive and easier to work on

Rear carbon fiber axle with lightened alloy right and left hubs for minimum rotating mass

Compatible with all Lightning12 Version 1 parts

Description

Parts List

Sort By Category New Items Maker

In-Stock Items Only


	$36.99		Ulti Tires ( ULT12F-6-XH ) 1/12 Foam Tire (Front) 3Pair X-Hard

	$12.99		Ulti Tires ( ULT12F-XH ) 1/12 Foam Tire (Front) 1Pair X-Hard

	$14.99		Ulti Tires ( ULT12R-XM ) 1/12 Foam Tire (Rear) 1Pair X-Medium

	$13.99		CRC ( CLN1229 ) Gear Diff Balls (100pcs) 1/8

	$5.99		CRC ( CLN4505 ) Damper Tube Lube 5,000 WT

	$5.99		CRC ( CLN4510 ) Damper Tube Lube 10,000 WT

	$5.99		CRC ( CLN4520 ) Damper Tube Lube 20,000 WT

	$5.99		CRC ( CLN4530 ) Damper Tube Lube 30,000 WT

	$4.99		CRC ( CLN64172 ) 64 Pitch Spur Gear 72Tooth - 16 x 3/32 Ball

	$5.99		VBC Racing ( B-02-VBC-1001 ) Diff D Ring

	$84.99		VBC Racing ( D-05-VBC-0113 ) Ball Differential Complete Set for Lightning/AE R5

	$12.99		Team Associated ( 3655 ) Ball Bearings Front 1/8 X 5/16 Flanged (2)

	$10.99		Team Associated ( 8681 ) FT Flanged Bearings, .250 x .3 in

	$21.49		CRC ( CLN1248 ) 1/8 x 5/16 Flanged Bearings (10pcs)

	~~$24.99~~ $21.49		CRC ( CLN1386 ) 1/4x3/8x1/8 Flanged Bearings (10pcs) - Rear Axle Bearing Gen X10, Gen XL

	$17.25		CRC ( CLN1387 ) 1/4 x 3/8 x 1/8 Plain Rear Diff Bearing (10pcs) Gen X10, Gen XL

	$44.99		MurfDogg ( CBS-13 ) MurfDogg Ceramic Bearing Set for Pan Cars with 3/16 Axles

	$11.99		MurfDogg ( CBS-26 ) 3/16 x 5/16 Flanged Ceramic Bearing Pair

	$12.99		Yeah Racing ( YB5004FS/10 ) Flanged Bearing 1/8x5/16x9/64 (inch) 10pcs

	$1.69		Team Associated ( 4510 ) Associated Fiberglass Antenna Rod 12LC

	$11.99		Tamiya ( 54129 ) TB03D Alum Motor Spacer for weight balance for F1 / Pan Car / Sedan

	$0.45		Tamiya ( 6095010 ) Antenna Pipe: 58329 - 30cm Black

	$6.29		Xray ( 371200 ) XRAY Composite Chassis Protector (2)

	$8.49		CRC ( CLN1382 ) 1/8 E-clips-100 pieces

	$3.99		CRC ( CLN4202 ) Super-Lite D Rings

	$5.19		3Racing ( 3RAC-BW03 ) Balance weight (pre-cut) with graphite pattern - 5g and 10g (4pcs each)

	$68.99		VBC Racing ( A-01-VBC-5002 ) Lightning12 2.5mm Graphite Main Chassis

	$9.99		VBC Racing ( A-01-VBC-5003 ) Lightning Alum Shock Mount Brace

	$8.99		VBC Racing ( A-01-VBC-5004 ) Lightning12 Shock Mount Plate

	$8.99		VBC Racing ( A-01-VBC-5006 ) Lightning12 Graphite Top Plate

	$3.99		VBC Racing ( A-01-VBC-5045 ) Lightning12 Height Adjust Spacer, 1.5mm

	$3.99		VBC Racing ( A-01-VBC-5048 ) Lightning12 Front Upper Arm Spacer, 1.5mm

	$5.99		VBC Racing ( A-01-VBC-5061 ) Graphite Hinge Brace 55mm for Lightning/AE R5

	$5.99		VBC Racing ( A-01-VBC-5062 ) Lightning12 Graphite Hinge Pin Brace, 56mm

	$5.99		VBC Racing ( A-01-VBC-5063 ) Lightning12 Graphite Hinge Pin Brace, 57mm

	$5.99		VBC Racing ( A-01-VBC-5064 ) Lightning12 Graphite Hinge Pin Brace, 58mm

	$13.99		VBC Racing ( A-01-VBC-5084 ) Lightning12 Graphite Upper Pod Plate

	$11.99		VBC Racing ( A-01-VBC-5091 ) Lightning12 Graphite Motor Mount Brace

	$7.69		VBC Racing ( A-03-G51102 ) Composite X Silver Front Lower Arm for Lightning Series / AE R5

	$9.99		VBC Racing ( A-03-VBC-1027 ) Pivot Balls for Lightning/AE R5

	$4.59		VBC Racing ( A-03-VBC-5009 ) Pod Link Set for Lightning FM/FX/AE R5

	$7.99		VBC Racing ( B-02-VBC-5005 ) Lightning12 17mm Aluminum Standoff

	$15.99		VBC Racing ( B-02-VBC-5066 ) Alum Front Bulkhead R for Lightning/AE R5

	$8.99		VBC Racing ( B-02-VBC-5073 ) 14mm Aluminum Standoff

	$21.99		VBC Racing ( B-02-VBC-5079 ) Alum Wheel Hub L for Lightning/AE R5

	$21.99		VBC Racing ( B-02-VBC-5080 ) Alum Diff Hub for Lightning/AE R5

	$4.59		VBC Racing ( B-02-VBC-5081 ) Thrust Cone for Lightning/AE R5

	$6.49		VBC Racing ( B-02-VBC-5082 ) Diff Seal O-Ring

	$21.99		VBC Racing ( B-02-VBC-5089 ) Lightning12 Aluminum Right Bulkhead

	$6.99		VBC Racing ( C-02-G50254 ) VBC Racing - TiN Coated 2mm Upper Pin for Lightning Series / AE R5

	$1.99		VBC Racing ( C-02-VBC-5035 ) M1.5x10 O-Ring

	$1.99		VBC Racing ( C-02-VBC-5036 ) M1.0x7.5 O-Ring

	$1.99		VBC Racing ( C-02-VBC-5037 ) M2x6 O-Ring

	$4.99		VBC Racing ( C-02-VBC-5054 ) 2mm Upper Pin for Lightning/AE R5

	$3.99		VBC Racing ( C-02-VBC-5076 ) Bevelled Washer

	$12.49		VBC Racing ( D-05-VBC-0171 ) VBC Racing - Lightning Center Shock/Antenna Mount

	$2.79		CRC ( CLN32995 ) VCS Encore Spring Purple 10#

	$3.79		VBC Racing ( C-02-VBC-5026 ) TBX Shock Shaft for Lightning/AE R5

	$3.49		VBC Racing ( C-02-VBC-5038 ) M1.5 E-Clip

	$4.59		VBC Racing ( C-02-VBC-5039 ) TBX Spring(Med-Soft) for Lightning/AE R5

	$3.49		VBC Racing ( C-02-VBC-5040 ) TBX Spring (Med-Hard) for Lightning/AE R5

	$18.99		VBC Racing ( D-05-VBC-0105 ) TBX Shock Body Set for Lightning/AE R5

	$7.99		VBC Racing ( D-05-VBC-0106 ) TBX Shocks Parts Set for Lightning/AE R5

	$4.59		VBC Racing ( D-05-VBC-0107 ) TBX Plastic Parts Set for Lightning/AE R5

	$9.99		VBC Racing ( B-02-VBC-0037 ) M3x42mm Turnbuckle (Titan)

	$7.99		VBC Racing ( B-02-VBC-5015 ) Ball Connector 4.7x12mm (5pcs)

	$7.99		VBC Racing ( B-02-VBC-5020 ) 4.7mm Ball Nuts

	$3.49		Team Associated ( 3438 ) Low profile Locknuts, Aluminum Axle 8-32 (3) TC3 / Pancar Diff nut

	$3.59		Team Associated ( 6284 ) Screws Socket Head Aluminum 4-40

	$1.79		Team Associated ( 6924 ) Associated Socket Head Cap Screw 4-40x3/8 (6)

	$1.19		DU-BRO ( 329 ) Insert Lock Nuts,Nylon 8-32

	$5.99		CRC ( CLN4731 ) 1/8 Shim Set, .010 (20)

	$5.99		CRC ( CLN4732 ) 1/4 Shim Set(20)

	$5.99		CRC ( CLN4745 ) 3/16 Shims: CRC Front end (20)

	$3.99		VBC Racing ( A-02-VBC-5075 ) M4 Nylon Nuts for Lightning/AE R5

	$5.99		VBC Racing ( B-02-VBC-0019-05 ) T0.5 7075 Spacer (10pcs)

	$5.99		VBC Racing ( B-02-VBC-0019-10 ) T1 7075 Spacer (10pcs)

	$8.99		VBC Racing ( B-02-VBC-0019-15 ) T1.5 7075 Spacer (10pcs)

	$5.99		VBC Racing ( B-02-VBC-0019-20 ) T2 7075 Spacer (10pcs)

	$3.99		VBC Racing ( B-02-VBC-5093 ) M3x6x0.5 Spacer

	$4.99		VBC Racing ( C-02-SC-F0306 ) M3x6 Flathead Screw (20pcs)

	$4.99		VBC Racing ( C-02-SC-F0308 ) M3x8 Flathead Screw (20pcs)

	$4.99		VBC Racing ( C-02-SC-F0310 ) M3x10 Flathead Screw (20pcs)

	$4.99		VBC Racing ( C-02-SC-F0312 ) M3x12 Flathead Screw (20pcs)

	$4.99		VBC Racing ( C-02-SC-NN03 ) M3 Locknut (4pcs)

	$4.99		VBC Racing ( C-02-SC-R0309 ) M3x9 Roundhead Screw - 20pcs

	$4.99		VBC Racing ( C-02-SC-R0310 ) M3x10 Roundhead Screw (20pcs)

	$3.99		VBC Racing ( C-02-SC-R2.0X6 ) M2x6 Screw Cap Head Screw - 20pcs

	$2.69		VBC Racing ( C-02-SC-R2.0x8 ) M2.0x8mm Cap Head Screw (20pcs)

	$7.99		VBC Racing ( D-05-VBC-0109 ) Lightning12 Front Upper Arm Spacers (0.5, 1.0mm)

	$3.99		VBC Racing ( D-05-VBC-0110 ) Caster Spacer Set for Lightning/AE R5

	~~$27.95~~ $23.36		Protoform ( 1611-21 ) 1/12 AMR-12 Light Weight Clear Body On-Road

	$16.99		CRC ( CLN4166 ) Black Art R10 Pacemaker Light Weight 1/12th Body

	$16.99		CRC ( CLN4167 ) Black Art R8C Light Weight 1/12th Body

	$16.99		CRC ( CLN4168 ) 1/12 Black Art Bomb-R Body

	$16.99		CRC ( CLN4169 ) 1/12 Black Market Body from Black Art

	$16.99		CRC ( CLN4171 ) Black Art BA006 - Lola B10

	$16.99		CRC ( CLN4172 ) Black Art BA008 - Toyota TS030

	$7.99		VBC Racing ( A-01-VBC-5001 ) Lightning12 Decals

	$3.99		VBC Racing ( B-02-VBC-0076 ) Body Clips (20pcs)

	$10.99		CRC ( CLN4279 ) Strut Front End Ball Popper

	$3.99		Yeah Racing ( YA-0297 ) Universal Chassis/Body Protector 2pcs (35cm L x 15cm W)

	$109.99		Hudy ( 109405 ) Hudy Universal Exclusive Set-Up System (1/10 & 1/12 Pan Car)

	$4.99		CRC ( CLN4088 ) Graphite Brace: Small / Mid Size Servo Saver

	$69.99		Futaba ( S9650 ) Futaba S9650 Digital Mini Servo

	$8.99		VBC Racing ( B-03-VBC-5017 ) Servo Saver Set for Lightning/AE R5
