Yokomo BD12 Competition 1/10 4WD Electric On Road Touring Car Kit (Graphite Chassis)
More Images Click


Car Kits > 1/10 Onroad
Maker:
Yokomo View more
Part Number: YOKMSR-BD12
Our Price: $779.99
Quantity: Coming Soon !!
Free Shipping !!


Description

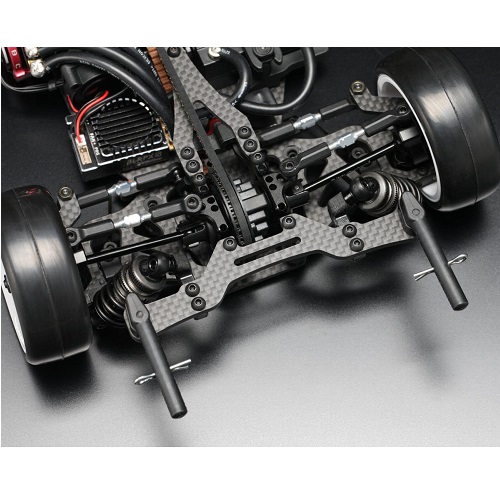

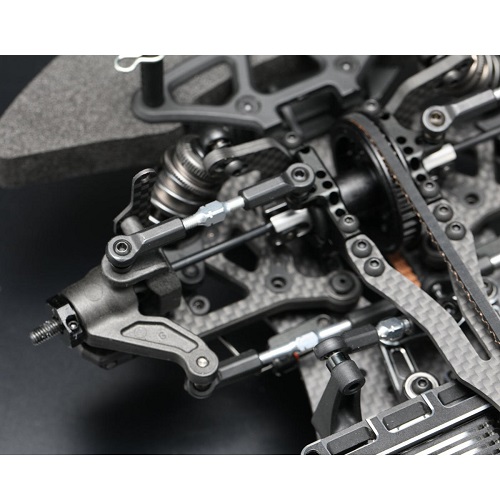

BD12 Competition 1/10 4WD Electric On Road Touring Car Kit

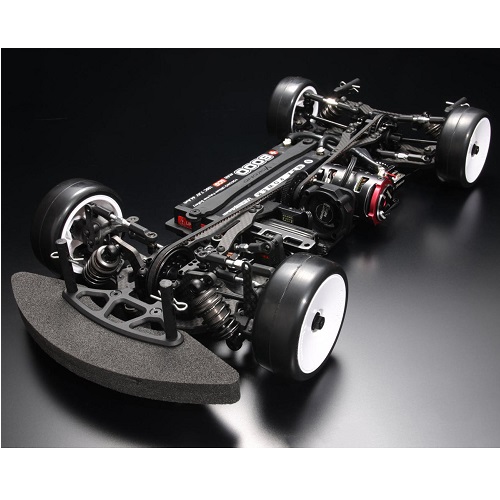

This is the Yokomo BD12 Competition 1/10 4WD Electric Touring Car Kit. It has been a while since the launch of the beloved BD11 1/10 competition touring car kit, so Yokomo devoted themselves to developing an updated platform to match today's top level of competition and came out with this superior BD12. Based on the popular BD11, this racing machine tends to be uniformly designed, while maintaining an excellent balance between pitching and roll, this racing design has achieved an even lower center of gravity. Based on an updated motor mount that controls pitching rigidity, the chassis roll is now being controlled by the front and rear split upper decks, which together with the A.T.F (Active Top Deck Flex) provide a smooth sharp cornering feel. The front and rear shocks have been shortened with bearing supported spring retainers to absorb spring torsion, resulting in a superior linear movement.

The BD12 was designed with the goal to be a top performance and user friendly kit to deliver consistently great results with every race. Get the BD12 to gain the upper hand and elevate above the competition!


NOTE: Finished kit shown in the photos is for illustrative purposes only. See needed to complete list below for a list of items required to complete the model.

Features:

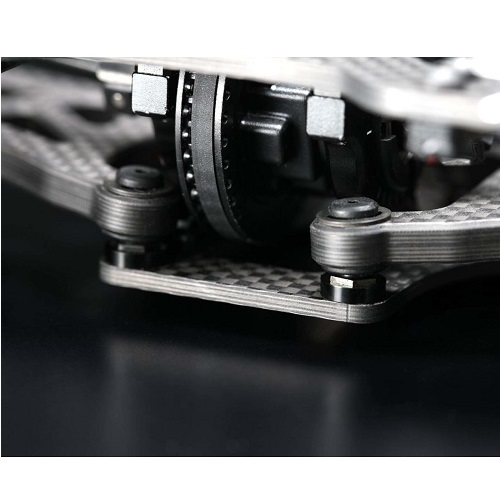

  • Extremely lightweight and rigid graphite chassis with a lower Center of Gravity (LCG) design
  • Split upper deck that connects to the motor mount for improved pitching rigidity
  • Shortened shock length with bearing-mounted spring retainers to eliminate twisting

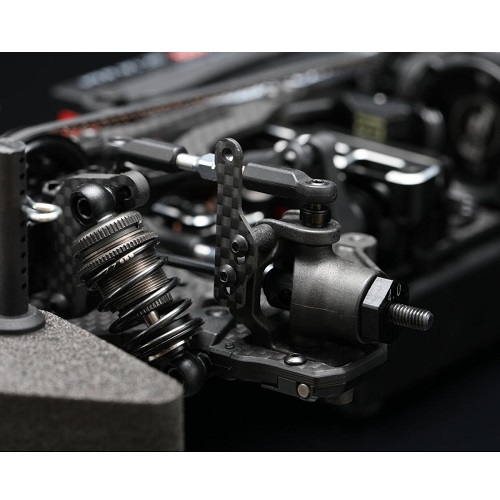

  • Body stiffener on the front hub carrier to prevent the tires from rubbing the body and provide better traction

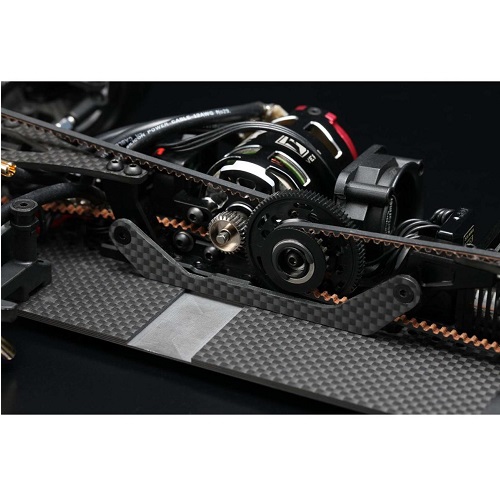

  • Carbon fiber plate attached to the motor mount for improved pitching rigidity
  • Updated motor position to balance the weight toward the center

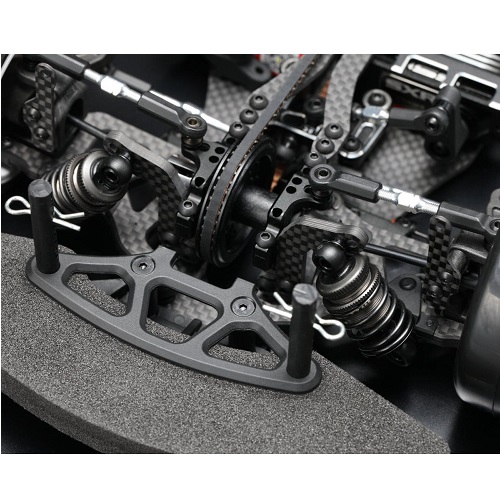

  • Updated front shock tower design with additional mounting position
  • Updated rear shock tower with a variety of angle adjustments
  • Graphite long suspension arm
  • Graphite upper deck
  • ATF (Active Top Deck Flex) to provide sharp cornering
  • RTC (Rear Toe Control) suspension as standard equipment

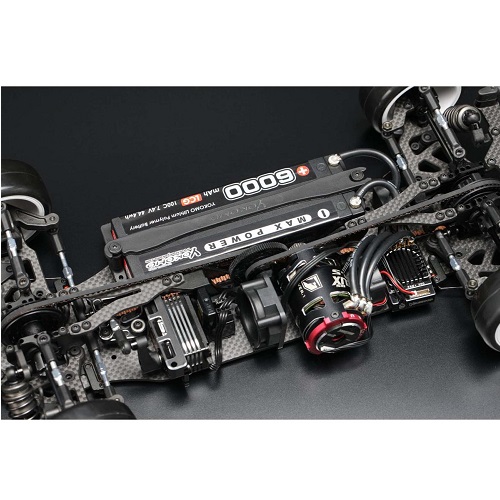

  • Quick release battery hold down retainers design

Specifications:

  • Scale: 1/10
  • Completion level: Unassembled
  • Power plant: Electric
  • Drivetrain: Belt driven 4WD
  • Length: 354mm
  • Width: 190mm
  • Wheelbase: 257mm (Adjustable)

Includes:

  • (1) Yokomo BD12 Competition 1/10 4WD electric on road touring car assembly Kit

More Images

Click image to Enlarge(+)
Parts List
Sort By Category New Items Maker
In-Stock Items Only
$3.99 Yokomo ( YOKB9-009ARA )
Yokomo 3mm BD9 Rear Outer Suspension Arm Hinge Pin (2)
$13.75 Yokomo ( YOKB10-011A )
Yokomo BD10 Clamp Type Hub (4mm)
$17.99 Yokomo ( YOKB10-011B )
Yokomo Brass Clamp Mount Wheel Hub (4.0mm)
$5.39 Yokomo ( YOKZC-N4FBKA )
4mm Aluminum Serrated Flanged Nut (Black) (4)
$8.99 Yokomo ( YOKBB-1510A )
Yokomo 10x15x4mm Ball Bearing (2)
$11.75 Yokomo ( YOKBB-730-4 )
Yokomo 3x7x3mm Ball Bearing (4)
$49.99 Yokomo ( YOKB10-500GSA )
Yokomo BD10 Gear Differential Set (38T)
$26.99 Yokomo ( YOKB10-6300A )
Yokomo BD10 Aluminum Center Pulley (20T)
$3.49 Yokomo ( YOKB10-630CA )
Yokomo BD10 10mm C-Ring (4)
$24.99 Yokomo ( YOKB10-630MA )
Yokomo BD10 Aluminum Main Drive Pulley (20T)
$12.49 Yokomo ( YOKB10-CFMA )
Yokomo BD10 Cooling Fan Mount
$31.99 Yokomo ( YOKB10-RTC-3A )
Yokomo BD10 RTC Aluminum Caster Hub (2deg)
$29.99 Yokomo ( YOKB10-RTC-4A )
Yokomo BD10 RTC Aluminum Steering Block (Black) (2)
$20.99 Yokomo ( YOKB11-003AHA )
Yokomo BD11 Aluminum Upper Deck Holder
$8.99 Yokomo ( YOKB11-008A )
Yokomo BD11 Suspension Parts Set
$10.19 Yokomo ( YOKB11-008FHA )
Yokomo BD11 Front Suspension Arm Pin Holder
$30.99 Yokomo ( YOKB11-008FLA )
Yokomo BD11 Graphite Front Lower Suspension Arm (Left)
$31.99 Yokomo ( YOKB11-008FRA )
Yokomo BD11 Graphite Front Lower Suspension Arms (Right)
$10.19 Yokomo ( YOKB11-008RH )
Yokomo BD11 Rear Suspension Arm Pin Holders
$10.19 Yokomo ( YOKB11-008RHA )
Yokomo BD11 Rear Suspension Arm Pin Holders
$31.99 Yokomo ( YOKB11-008RLA )
Yokomo BD11 Graphite Rear Lower Suspension Arms (Left)
$31.99 Yokomo ( YOKB11-008RRA )
Yokomo BD11 Graphite Rear Lower Suspension Arms (Right)
$10.19 Yokomo ( YOKB11-010AWA )
Yokomo BD11 Front Double-Jointed Universal Axle
$10.19 Yokomo ( YOKB11-010BWA )
Yokomo BD11 Front Bones For Double-Jointed Universal
$21.99 Yokomo ( YOKB11-010TWA )
Yokomo BD11 Double-Joint Universal Driveshaft Rebuild Kit
$29.99 Yokomo ( YOKB11-32FLAA )
Yokomo BD11 Aluminum Front Lower Bulkhead (A)
$29.99 Yokomo ( YOKB11-32FLBA )
Yokomo BD11 Aluminum Front Lower Bulkhead (B)
$27.99 Yokomo ( YOKB11-32FUAA )
Yokomo BD11 Aluminum Front Upper Bulkhead (A)
$27.99 Yokomo ( YOKB11-32FUBA )
Yokomo BD11 Aluminum Front Upper Bulkhead (B)
$29.99 Yokomo ( YOKB11-32RLAA )
Yokomo BD11 Aluminum Rear Lower Bulkhead (A)
$29.99 Yokomo ( YOKB11-32RLBA )
Yokomo BD11 Aluminum Rear Lower Bulkhead (B)
$2.99 Yokomo ( YOKB11-4120A )
Yokomo BD11 Sway Bar O-Rings (4)
$7.99 Yokomo ( YOKB11-412F2 )
Yokomo Front Sway Bar (1.2 mm)
$10.19 Yokomo ( YOKB11-412MAA )
Yokomo BD11 Aluminum Stabilizer Mount (A)
$10.19 Yokomo ( YOKB11-412MBA )
Yokomo BD11 Aluminum Stabilizer Mount (B)
$7.99 Yokomo ( YOKB11-412R2 )
Yokomo Rear Sway Bar (1.2 mm)
$10.19 Yokomo ( YOKB11-RTC-5 )
Yokomo BD11 RTC Steering Block Arm Plate (2)
$87.99 Yokomo ( YOKB12-002 )
Yokomo BD12 Graphite Main Chassis
$23.99 Yokomo ( YOKB12-003F )
Yokomo BD12 Graphite Front Upper Deck
$23.99 Yokomo ( YOKB12-003R )
Yokomo BD12 Graphite Rear Upper Deck
$10.59 Yokomo ( YOKB12-016S )
Yokomo BD12 Aluminum Rear Body Post Spacers (2)
$24.99 Yokomo ( YOKB12-017 )
Yokomo BD12 Graphite Front Shock Tower
$25.99 Yokomo ( YOKB12-018 )
Yokomo BD12 Graphite Rear Shock Tower
$9.49 Yokomo ( YOKB12-018L )
Yokomo BD12 Aluminum Rear Shock Mount (Left)
$9.49 Yokomo ( YOKB12-018R )
Yokomo BD12 Aluminum Rear Shock Mount (Right)
$19.59 Yokomo ( YOKB12-302CS )
Yokomo BD12 Graphite Center Chassis Stiffener
$32.99 Yokomo ( YOKB12-302CSB )
Yokomo BD12 Brass Center Chassis Stiffener (25g)
$65.99 Yokomo ( YOKB12-302M )
Yokomo BD12 Aluminum Motor Mount
$15.49 Yokomo ( YOKB12-413G )
Yokomo BD12 Graphite Molded Front Steering Hub Carriers (2)
$16.49 Yokomo ( YOKB12-413SP )
Yokomo BD12 Graphite Body Stiffener Plates (2)
$6.59 Yokomo ( YOKB9-001A )
Yokomo BD9 Front Plastic Bumper Set
$6.89 Yokomo ( YOKB9-001FA )
Yokomo BD9 Front Foam Bumper
$3.29 Yokomo ( YOKB9-009AFA )
Yokomo BD9 3mm Front Outer Suspension Arm Pin (2)
$38.99 Yokomo ( YOKB9-010RAA )
Yokomo BD9 44.5mm Rear C-Clip Universal Driveshaft w/Aluminum Bone (2)
$16.49 Yokomo ( YOKB9-118A )
Yokomo BD9 Battery Holder Set
$27.49 Yokomo ( YOKB9-201LBA )
Yokomo BD9 Aluminum Center Link
$7.39 Yokomo ( YOKB9-201PA )
Yokomo BD9 Bellcrank Post (2)
$27.49 Yokomo ( YOKB9-202SBAA )
Yokomo BD9 Aluminum Bellcrank Set
$36.49 Yokomo ( YOKB9-203B )
Yokomo BD9 Aluminum Steering Servo Mount
$8.79 Yokomo ( YOKB9-204 )
Yokomo BD9 Antenna/Belt Tensioner Mount
$3.29 Yokomo ( YOKB9-414CLA )
Yokomo BD9 Kin Pin Collar (2) (size L)
$3.39 Yokomo ( YOKB9-414CSA )
Yokomo BD9 Kin Pin Collar Bushing (S)
$13.49 Yokomo ( YOKB9-415SGA )
Yokomo BD9 Graphite Steering Block Set
$6.79 Yokomo ( YOKB9-500DPA )
Yokomo BD9 Drive Cup Protector (4) (Hard)
$9.69 Yokomo ( YOKB9-500GM )
Yokomo BD9 Gear Differential Maintenance Kit
$12.49 Yokomo ( YOKB9-501GS )
Yokomo BD9 Gear Differential Drive Cup Outdrive (2)
$7.79 Yokomo ( YOKB9-501MA )
Yokomo BD9 Front Molded Spool (38T)
$12.25 Yokomo ( YOKB9-501MCSA )
Yokomo BD9 Spool Drive Cup
$11.59 Yokomo ( YOKB9-503GHA )
Yokomo BD9 Pulley/Differential Case (38T)
$11.99 Yokomo ( YOKB9-503GPA )
Yokomo BD9 Molded Bevel Gear Set w/Cross Pin
$6.99 Yokomo ( YOKB9-BTCA )
Yokomo BD9 Belt Tension Adjust Cam Set
$6.39 Yokomo ( YOKB9-S7SA )
Yokomo BD9 Silicon O-Ring (Soft)
$8.79 Yokomo ( YOKBD-351LA )
Yokomo BD10 Front/Rear Drive Belt
$3.39 Yokomo ( YOKBD-BTCSA )
Yokomo Belt Tension Cam Spring Set
$2.49 Yokomo ( YOKYS-7BA )
Yokomo Down Stop O-Ring (8)
$2.39 Yokomo ( YOKZC-411A )
Yokomo 4mm E-Clip (10)
$5.79 Yokomo ( YOKB10-S5S )
Yokomo BD10 Shock Shaft
$8.49 Yokomo ( YOKB10-S8DA )
Yokomo BD10 Shock Diaphragm (4)
$3.39 Yokomo ( YOKB11-412OA )
BD11 P-1 Shock O-ring (4)
$10.59 Yokomo ( YOKB12-S3S )
Yokomo BD12 Bearing Type Aluminum Shock Spring Retainers (2)
$10.59 Yokomo ( YOKB12-S4AJ )
Yokomo BD12 Shock Spring Collars w/O-Ring (2)
$9.49 Yokomo ( YOKB12-S4C1 )
Yokomo BD12 Upper Shock Cap Nuts (2)
$22.99 Yokomo ( YOKB12-S4S )
Yokomo BD12 Hard Anodized Aluminum Shock Body (2)
$7.29 Yokomo ( YOKB12-S5S )
Yokomo BD12 Shock Shaft (2) (19.1mm)
$7.29 Yokomo ( YOKB12-S6 )
Yokomo BD12 Shock Caps & Ends (4)
$7.89 Yokomo ( YOKB7-S8A )
Yokomo BD7 Shock Cap Pivot Ball (4)
$11.69 Yokomo ( YOKB9-S116A )
Yokomo BD9 Big Bore Short Shock Piston (4) (6 Hole - 1.1mm)
$11.75 Yokomo ( YOKB9-SLF260 )
Yokomo Front Linear Shock Spring (2.60)
$9.09 Yokomo ( YOKB11-B50A )
Yokomo BD11 5mm Suspension Balls (4)
$7.79 Yokomo ( YOKB8-206MHA )
Yokomo BD8 2018/2019 Rod End Ball Set (6) (4.8mm/13mm)
$8.29 Yokomo ( YOKB8-206SSHA )
MS1.0 4.8mm Ball Studs (6) (10mm)
$12.69 Yokomo ( YOKB9-207A )
Yokomo BD9 4.8mm Ball End Cap Ball Cup (Hard)
$7.39 Yokomo ( YOKB9-412REA )
Yokomo BD9 Stabilizer Rod Sway Bar End Parts Set
$4.59 Yokomo ( YOKB9-414BA )
Yokomo 4.8mm BD9 King Pin Ball (2)
$8.09 Yokomo ( YOKB9-TB20AA )
Yokomo BD9 Aluminum 20mm Turnbuckle (2)
$8.79 Yokomo ( YOKB9-TB30AA )
Yokomo BD9 Aluminum 30mm Turnbuckle (2)
$8.79 Yokomo ( YOKB9-TB39AA )
Yokomo 3x39mm BD9 Aluminum Turnbuckle (2)
$7.89 Yokomo ( YOKZC-206MHA )
Yokomo 12.8mm Socket Head Ball Stud Set (6) (Size M)
$7.59 Yokomo ( YOKZC-206SHA )
Yokomo Hexagon Socket Rod End Ball (6) (S Size/11.3mm Length)
$7.69 Yokomo ( YOKZC-206SHSA )
Yokomo 11.3mm Socket Head Ball Stud Set (6) (S Size)
$11.99 Yokomo ( YOKB10-500GMA )
Yokomo BD10 Gear Differential Maintenance Kit
$12.39 Yokomo ( YOKB12-S2B )
Yokomo BD12 Shock Shaft Guide Spacers (4)
$6.39 Yokomo ( YOKZC-A3605B )
3x6x0.5mm Aluminum Shim (Black) (8)
$6.69 Yokomo ( YOKZC-A3605BA )
Yokomo 3x6x0.5mm Aluminum Shim (Black) (8)
$6.39 Yokomo ( YOKZC-A3610BA )
Yokomo 3x6x1.0mm Aluminum Shim (Black) (8)
$6.79 Yokomo ( YOKZC-A3615BA )
Yokomo 3x6x1.5mm Aluminum Shim (Black) (8)
$6.79 Yokomo ( YOKZC-A3620BA )
Yokomo 3x6x2.0mm Aluminum Shim (Black) (8)
$3.39 Yokomo ( YOKZC-A3820BA )
Yokomo 3x8x2mm Aluminum Spacer (Black) (4)
$4.49 Yokomo ( YOKZC-BH254A )
Yokomo 2.5x4mm Button Head Hex Screw (8)
$4.49 Yokomo ( YOKZC-BH256A )
Yokomo 2.5x6mm Button Head Screw (8)
$2.29 Yokomo ( YOKZC-BH310A )
Yokomo 3x10mm Button Head Hex Screw (10)
$2.29 Yokomo ( YOKZC-BH312A )
Yokomo 3x12mm Button Head Screw (10)
$2.29 Yokomo ( YOKZC-BH36-A )
Yokomo 3x6mm Button Head Screw (10)
$2.29 Yokomo ( YOKZC-BH38-A )
Yokomo 3x8mm Button Head Hex Screw (10)
$3.49 Yokomo ( YOKZC-F28TPHA )
Yokomo 2x8mm Flat Head Tapping Hex Screw (4)
$2.29 Yokomo ( YOKZC-F310A )
Yokomo 3x10mm Flat Head Screw (10)
$2.29 Yokomo ( YOKZC-F315A )
Yokomo 3x15mm Flat Head Screw (10)
$2.29 Yokomo ( YOKZC-F36-A )
Yokomo 3x6mm Flat Head Hex Screw (10)
$2.29 Yokomo ( YOKZC-F38A )
Yokomo 3x8mm Flat Head Hex Screw (10)
$6.49 Yokomo ( YOKZC-M3DWA )
Yokomo M3 Aluminum Countersunk Washer (8)
$2.29 Yokomo ( YOKZC-N3PA )
Yokomo 3x2.4mm Steel Nut (10)
$6.99 Yokomo ( YOKZC-S100SA )
Yokomo 10mm Stainless Steel Shim Kit (30)
$2.19 Yokomo ( YOKZC-S310A )
Yokomo 3.1x5.0x0.10mm Stainless Steel Spacer Shim (10pcs)
$2.09 Yokomo ( YOKZC-S320A )
3.1x5x0.2mm Stainless Spacer Shim (10)
$6.99 Yokomo ( YOKZC-S40SA )
Yokomo 4mm Spacer Shim Set
$6.69 Yokomo ( YOKZC-S50A )
5mm Spacer Shim Set (0.13mm, 0.25mm & 0.50mm)
$6.89 Yokomo ( YOKZC-S50SA )
Yokomo 5x8mm Spacer Shim Set (0.05, 0.1 & 0.2mm)
$2.29 Yokomo ( YOKZC-SS33A )
Yokomo 3x3mm Set Screw (10)
$2.29 Yokomo ( YOKZC-SS34A )
Yokomo 3x4mm Set Screw (10)
$2.29 Yokomo ( YOKZC-SS38A )
Yokomo 3x8mm Set Screw (10)
$2.19 Yokomo ( YOKZS-011CMA )
Yokomo Clamp Type Wheel Hub Maintenance Kit
$6.59 Yokomo ( YOKZS-011TSBA )
Yokomo Hex Hub Tread Adjuster Spacer (4x 0.5mm & 4x 1.0mm)
$3.09 Yokomo ( YOKSD-TBLA )
Yokomo 4mm Turnbuckle Wrench


Recently Viewed (See All)
Yokomo
YOKMRTC-BD10
VBC Racing
A-01-P50624
3Racing
3RAC-TR352
3Racing
3RAC-WF335/BU
Yokomo BD10 1/10 4WD Electric Touring Car Kit LightningFX Upper Pod Plate 64 Titanium Turnbuckle 3 x 52mm (2 Pcs) Aluminium M3 Flat Washer 3.5mm (10 Pcs) - Blue
Free Shipping !!
$574.99 $13.99 $7.79 $3.79


Popular items (See All)
BittyDesign
BDYGT-190S20T
Tamiya
51253
3Racing
3RAC-SG6481
Protoform
1535-30
Bittydesign Seven20 1/10 GT Body (Clear) (190mm) Tamiya TB Evo. V B Parts (Bumper) 64 Pitch Spur Gear 81T Protoform 1971 Pontiac Firebird Trans Am Clear Body VTA
$33.95 $11.00 $5.99 $41.95
$33.99


Racer's Choice (See All)
1UP Racing
190433
Much More
MX-GSBS
Yeah Racing
YA-0740BK
Yeah Racing
YA-0180BU
Lowpro Bullet Plugs W/Grips - 4/5mm Red/Black Gold Stainless Body Scissor Jetnado Ohm 300 Aluminium Case Super High Speed Fan (30 x 30 x 10mm) Tornado High Speed Cooling Fan(BU) 30x30mm Ultra High Speed 14,000 RPM
$11.99
$9.99
$9.99 $18.99 $7.99

Accessibility Statement | Shipping & Returns | Your Privacy | Terms of Use | Location | Hours | Contact Us
Address:13788 Roswell Ave #107 Chino, CA 91710   Email: tq.support@tqrcracing.com   Phone: 909-590-2552
Copyright TQ RC RACING. All Rights Reserved.
