| Technical Data |
|
|

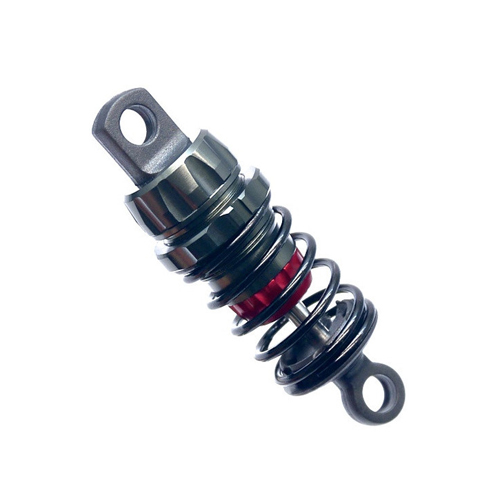

All-newly designed 'True Big Bore' shocks (TBB). Shorter shock shafts, bigger shock body diameter keeping the volume the same as original shocks. Shock top cap, Shock body, Shock bottom cap and Height Adjuster made from aircraft grade 7075 Alumimum. All new piston design with groove to improve the linearity of oil flow. Optional 4 different spring rate suitable for different track conditions. |
|
| Compatiblity |
|
|
WildFireD06 1:10 Touring Car Kit
,
WildFireD06 VBC Dynamics Edition 1:10 Car Kit
,
VBC Racing - WildFire D07 1/10 Touring Car Kit
,
WildFireD08 1/10 Touring Car Kit D-05-VBC-CK20
|
Description |
|

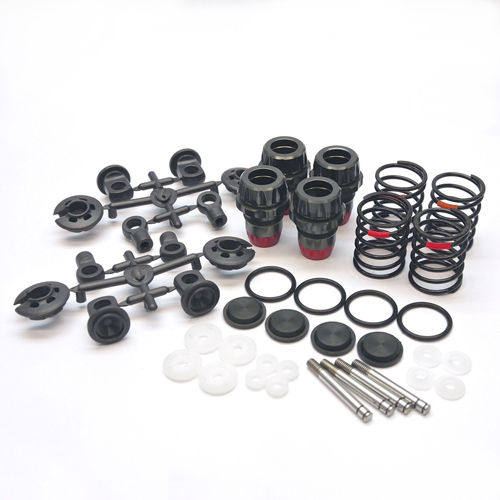

| Package contains: -
| B-02-VBC-0120 |
TBB Shock Body |
4 |
| B-02-VBC-0121 |
TBB Shock Height Adjuster |
4 |
| A-03-VBC-0122 |
TBB Bottom Cap |
4 |
| A-03-VBC-0123 |
TBB Shock Piston (3 holes) |
4 |
| A-03-VBC-0124 |
TBB Shock Bottom Connector |
4 |
| B-02-VBC-0125 |
TBB Shaft Cap |
4 |
| A-03-VBC-0126 |
TBB Shaft Guide |
4 |
| B-03-VBC-0127 |
TBB Shock Shaft |
4 |
| B-03-VBC-0128 |
TBB Sealer O-Ring (Shock Height Adjuster) |
4 |
| B-03-VBC-0012 |
TBB Shaft Sealer O-Ring |
4 |
| B-03-VBC-0129 |
M2 E-Clip |
10 |
| A-03-VBC-0130 |
TBB Shock Top Connector |
4 |
| A-03-VBC-0131 |
TBB Spring Bottom Support |
4 |
| B-03-VBC-0132 |
TBB Short Oil Sealer Cap (Medium Soft) |
4 |
| B-02-VBC-0133 |
TBB Shock Body Cap |
4 |
| B-02-VBC-0134 |
TBB Shock Spring (Red-Medium Soft) |
2 |
| B-02-VBC-0135 |
TBB Shock Spring (Orange-Medium Hard) |
2 |
|
|
