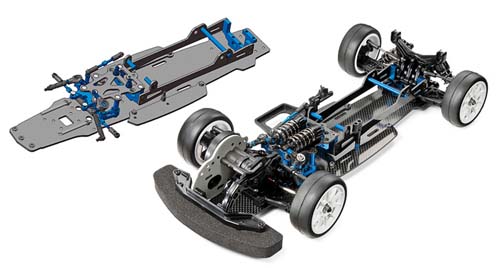

This upgrade set is designed to take the performance of the FF-03 chassis to the next level. The newly designed carbon lower deck features a narrow design with the separate mechanism decks positioned on each side to enable a greater roll movement range during cornering. Refined IFS (Inboard Front Suspension) setup has front dampers positioned longitudinally like the TA06 chassis to achieve better weight distribution and the new long tie-rod steering system provides smooth steering feel. Vertical double frame and aluminum bulkhead stays straddle the battery section to increase overall chassis rigidity and make quick battery replacements possible.
Key Features

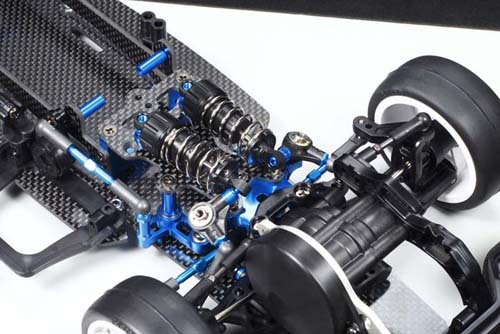

Inboard Front Suspension
Refined IFS setup positions the front dampers longitudinally to help shift the weight to chassis center. Stabilizer attachment positions have been lowered.
Carbon Vertical Frame
2.25mm carbon vertical plates are connected with aluminum stays to give the chassis superb rigidity. Battery stopper shaft can be attached/ detached with a snap pin to enable quick battery replacement.
Steering System
The long tie-rod steering system, which is used on the TRF417 and TA06 chassis, has been adopted to provide the smooth, precise steering response necessary for on-road touring cars.
The Following FF-03 parts are required to finish the conversion:
FF-03 Gearbox (Ball Diff or Gear Diff)
FF-03 M Parts (Damper Stay, Rear Bulkhead)
F/R Short Reversible Suspension
Universal Drive Shafts
Rear Freewheel Axles
TRF Dampers
Hi-Torque Servo Saver
FF-03 Urethane Bumper
B Parts (Body Mount), etc.
Set Contents
2.25mm Carbon Lower Deck
2.25mm Carbon Front Stiffener
2.25mm Carbon Vertical Frame
2.25mm carbon Mechanism Deck
Aluminum Bulkhead Stays
Aluminum Stiffener Stay
Aluminum Battery Stoppers
Aluminum Steering Links
TA06 N Parts
|
