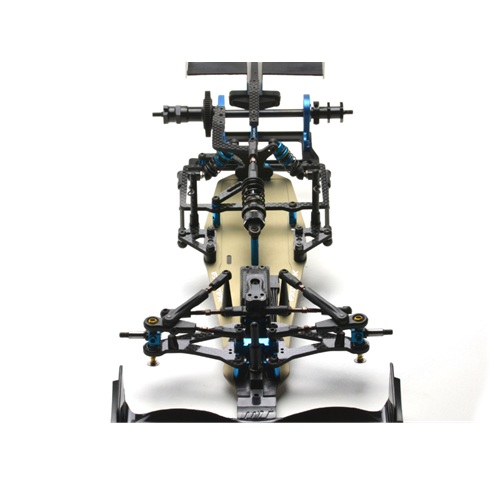

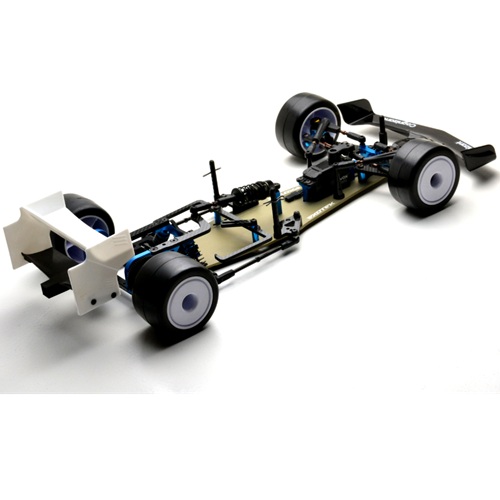

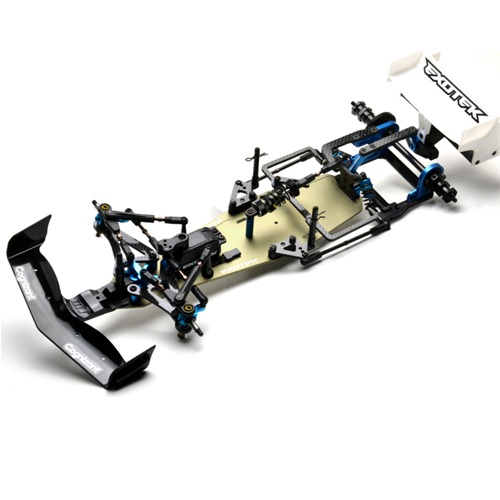

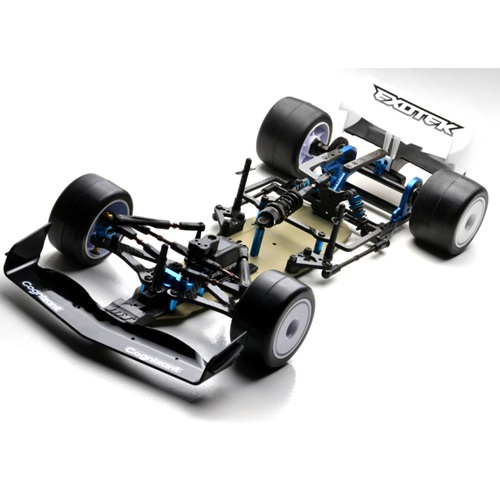

The F1ULTRA R5 PRO is a cutting edge high-performance F1 racing kit that evolves all of the great features of the original F1Ultra into a perfected race machine.
The 'PRO' kit includes the must have option parts that powered the team to multiple class wins and titles.
Some of the details;

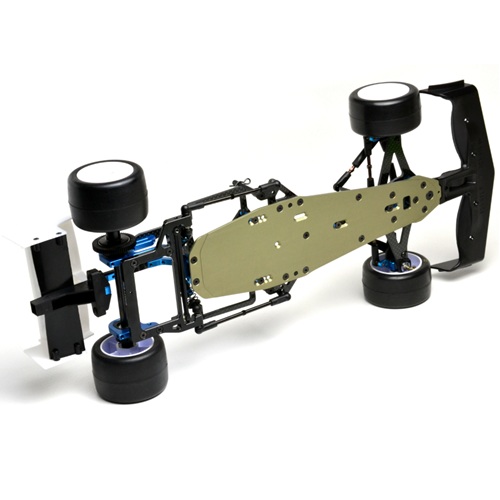

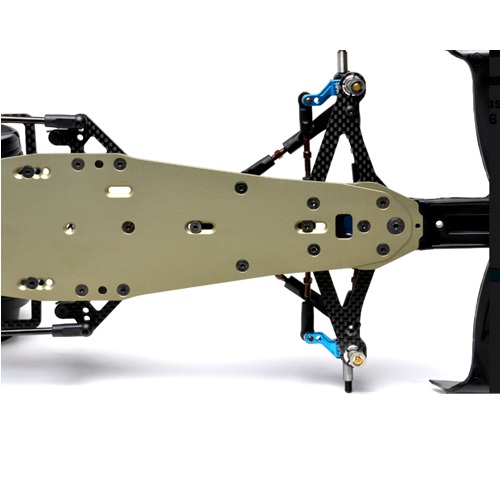

- New 2.5mm low CG 1-piece 7075 chassis for superior high and low grip asphalt characteristics.
- New carbon fiber adjustable battery tray.
- New heavy duty alloy and carbon fiber rear wing mount system included for improved rear grip.
- New heavy duty extra long side links for less flex and more consistency.

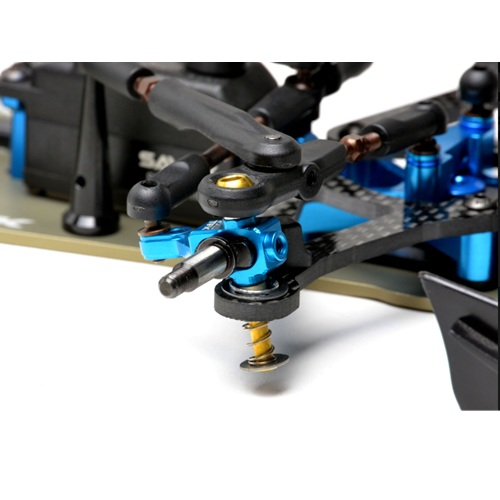

- New heavy duty front alloy and steel off set axle steering hubs for improved handling.
- New +2mm front carbon fiber arms.
- New wide rear shock tower.
- New heavy duty alloy front pivot pin cups.
- Extra narrow 72mm chassis for less chassis scrub through corners.
- Adjustable forward and back servo positioning for easy ackerman/ steering geometry adjustments.

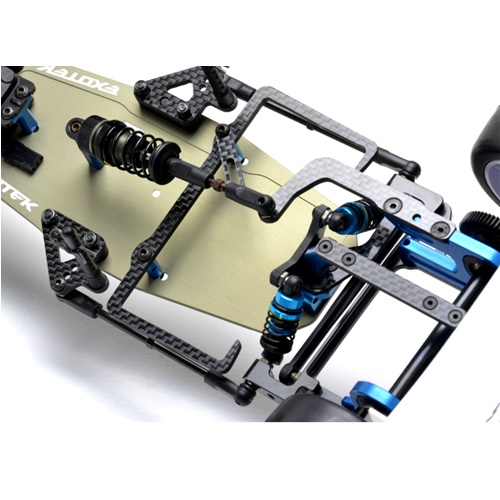

- Patented floating pod rear suspension system for superior rubber tire traction.
- No center rear pod ball pivot, which means much improved chassis roll for unmatched corner speeds.
- Adjustable camber and caster via turnbuckles for easy and exact set up changes, with no additional expensive parts needed.
- Easy front roll center changes via shims on the inner camber mounts.
- 3 oil filled shocks with all machined bodies and internals for velvety smooth operation and proper sealing.
- 1 piece heavy duty machined alloy front bulkhead provides rock solid tweak free front suspension mounting.

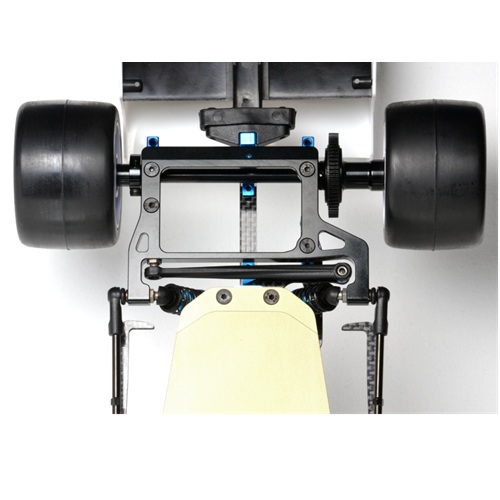

- 1 Piece 7075 alloy rear pod plate for a tweak free heavy duty design, adds rear traction and improves motor cooling.
- High performance ball diff set included.
- Simplified direct steering to servo design for reduced play, reduced parts count and precise steering feel.
- Integrated 30mm fan mount on the left pod.
- Heavy duty motor mount with upper and lower motor attachment for less motor flexing to prolong spur gear life.
- Easy grip/ easy removal custom e-clips on the front suspension pins.
- One piece steel front suspension pins for less play.
- New double bolt front wing mount.
REQUIRED TO COMPLETE (not included)
- 1:10 Scale F1 Wheels and Rubber (or Foam) Tires
- 1:10 Scale Polycarbonate F1 Body
- For inline battery mounting (ie carpet racing) here
- 1:10 Scale Electric Motor
- SMALL SIZED Electronic Speed Controls (TEKIN RS SPEC ESC fits and works very well). May need to remove esc fan for other esc's

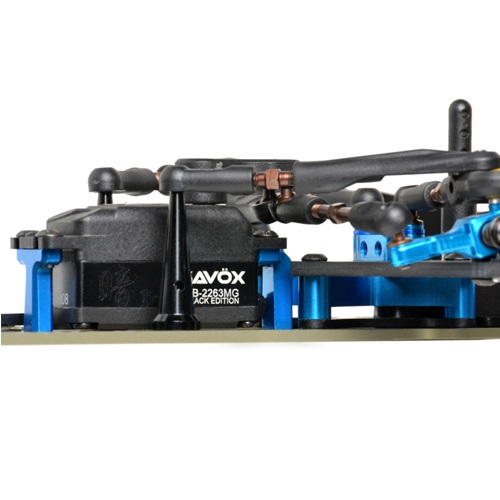

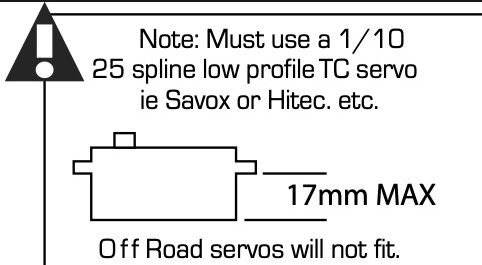

- LOW PROFILE TC type steering Servo (no off road servos)- see servo picture detail
- Shorty 4000-4800mah LCG Shorty Pack
- Battery Charger
- 2-Channel Surface Radio System
- Polycarbonate-Specific Spray Paint for Body
- Servo Tape (3M brand is best)
- Kit building tools
