Get repeatable, numeric readings of your gear differential’s hardness so you can build, log, and exactly replicate winning setups instead of trusting "feel". That means fewer guess-and-check rebuilds and more consistent left/right and front/rear balance - helping you match handling to track grip and conditions across race weekends.

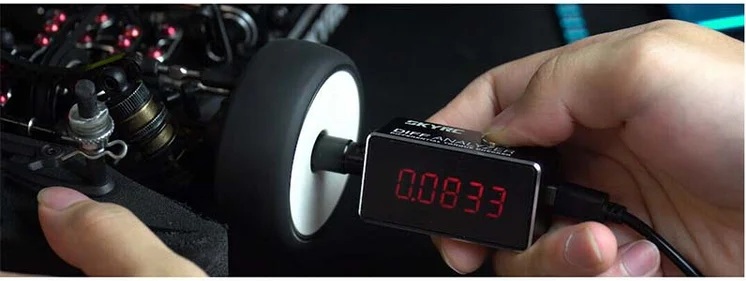

Just plug in any 5 V Micro-USB source (power bank, charger, laptop), attach the diff with the included adapter, press the button, and in 3–5 seconds you have a hard number you can record and compare. For maximum consistency, test at the same temperature - silicone oil viscosity changes with heat, and serious racers know that matters.
Precision-machined from a single block of anodized aluminum, the Diff Analyzer is only 54×28×24.8mm and 59g - small enough to toss in any pit bag or a pocket, tough enough for daily track use. Out of the box it works with all 1/10-scale gear diffs via the included 7mm hex (wheel-nut) and dogbone/pin/outdrive adapters. Optional adapters add 1/8-scale buggies/truggies and Mini-Z support, letting you standardize readings across your entire fleet.
Key specs
- Model: SK-500026-03

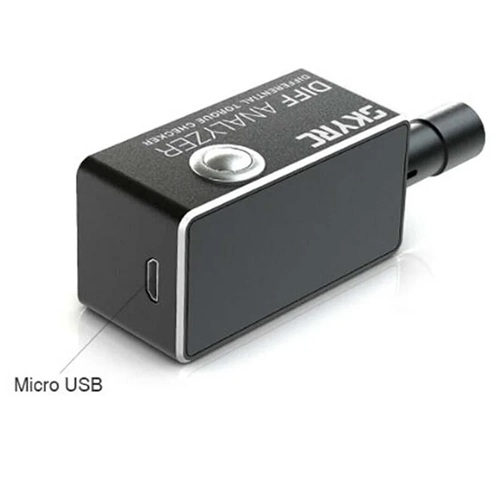

- Power: 5 V Micro-USB (any power bank or USB port)
- Test Time: ~3–5 seconds per diff
- Display: Clear white LED numeric value
- Compatibility: All 1/10-scale gear diffs (adapters included); 1/8-scale & Mini-Z with optional adapters

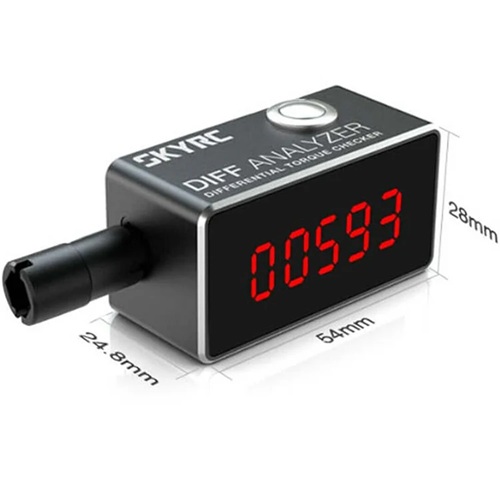

- Dimensions / Weight: 54 × 28 × 24.8 mm / 59 g
- Construction: CNC-machined anodized aluminum
- Included: 7 mm hex adapter + dogbone/pin/outdrive adapter for 1/10-scale
Data-driven diff tuning. Replicate fast setups. Win more mains. |
