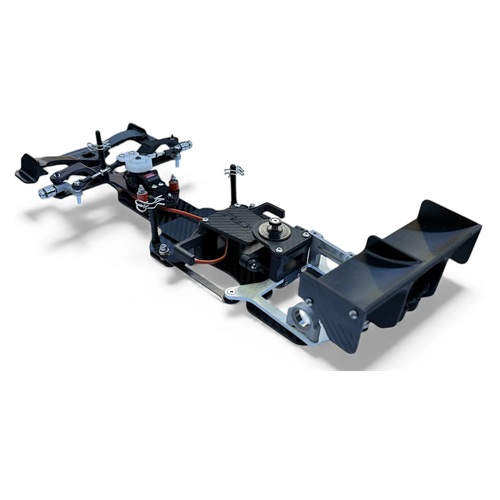

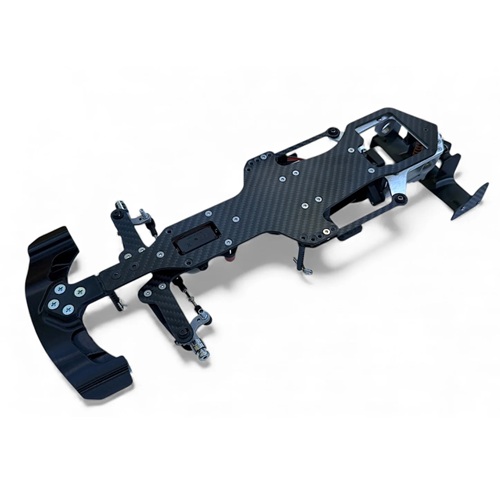

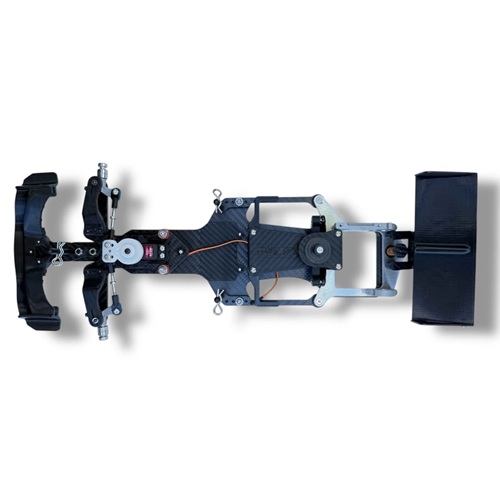

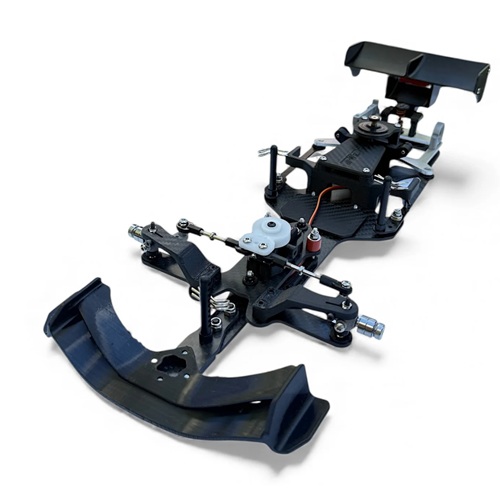

Precision Engineered 1/10th Scale Formula 1 Chassis Kit
Designed for the serious racer, this 10th scale formula 1 kit combines cutting-edge materials like carbon fiber, 7075 aluminum, and advanced 3D-printed composites to deliver an unparalleled balance of low center of gravity, rigidity, and tunability.
Each bespoke kit is meticulously packaged to order!
Chassis Features:
- 12th scale mini servo for reduced weight and lower CoG [servo included with kit]

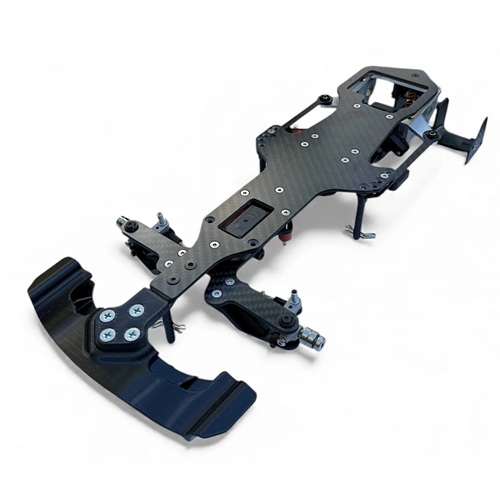

- One piece carbon fiber chassis design
- Durable one piece upper arms [6,7,8 degree caster arms included]
- Removable electronics tray
- Adjustable shorty battery box [standard and LCG included]

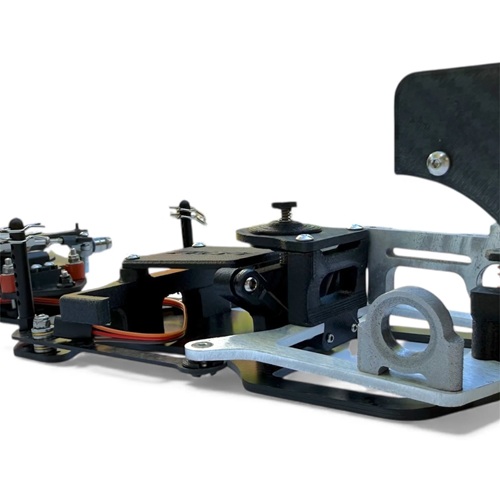

- Floating rear pod design with included rear bump springs
- Adjustable rear damper disc
- Rear V-link design with adjustable rear roll-center towers [+1,0,-1 towers included]

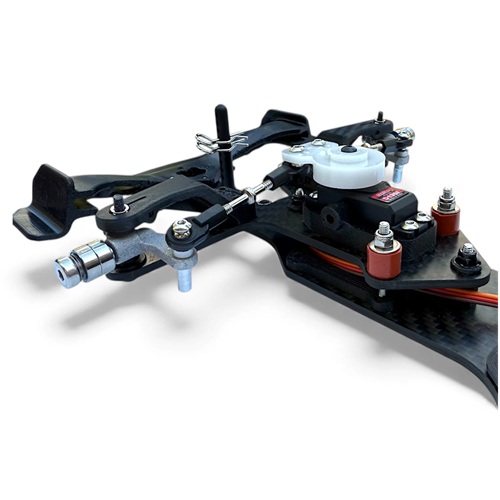

- Single plane front suspension design with silicone roll dampers
- Includes soft, medium, hard front silicone dampers
- Adjustable front roll center standoffs [includes +1,0,-1mm]
- Front trailing axles [3mm]
- Machined and ground front axle bolts with 1mm adjustable trackwidth
- TPU front and rear wings included
- Injection molded body posts
- Compatible with 0.25” rear axle designs [axle not included]
- Compatible with 10th scale F1 bodies [body not included]
- Compatible with 104 style front and rear wings
Needed to Complete:
- Tools for kit assembly
- 0.25” rear axle and spur gear
- F1 body
- F1 wheels and tires
- ESC
- Shorty battery
- Radio / Receiver
- Motor
- Motor pinion gear
[Kit assembly required]
Step by step video instruction and setup sheets are available online.
For access to the video manuel, please click on link below:
|
