This RC model is an updated release of a Tamiya classic, which was released as "Willy’s Wheeler" back in 1983.
It has returned to a newly overhauled variant of the WR-02 chassis.

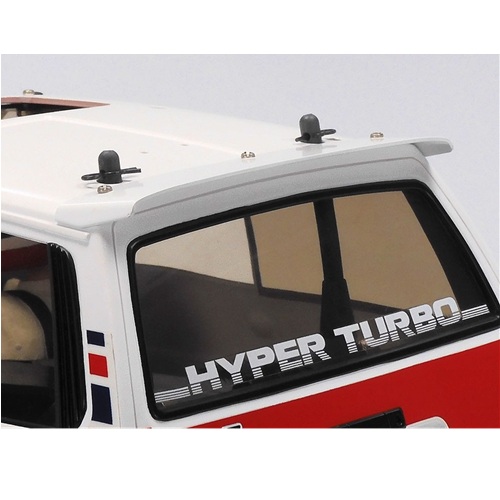

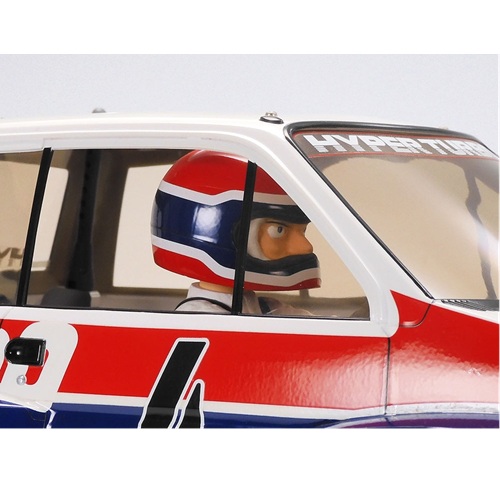

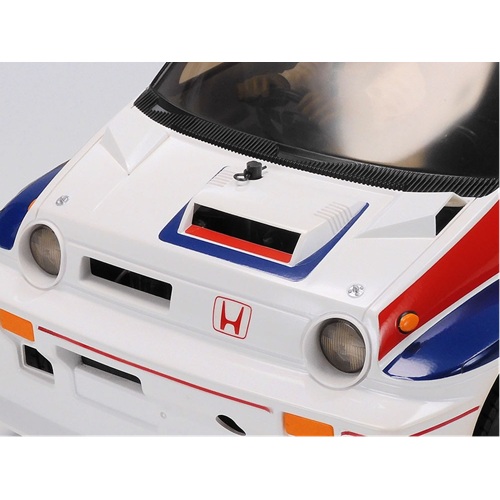

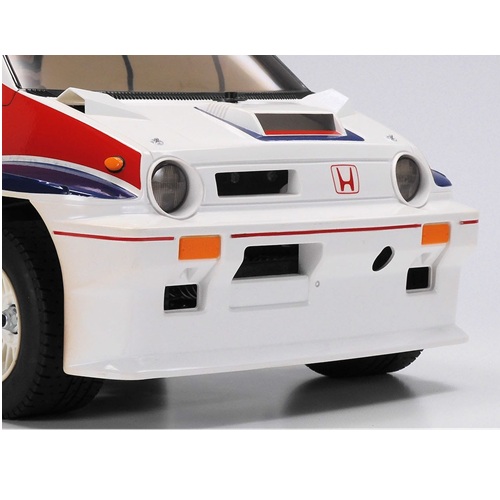

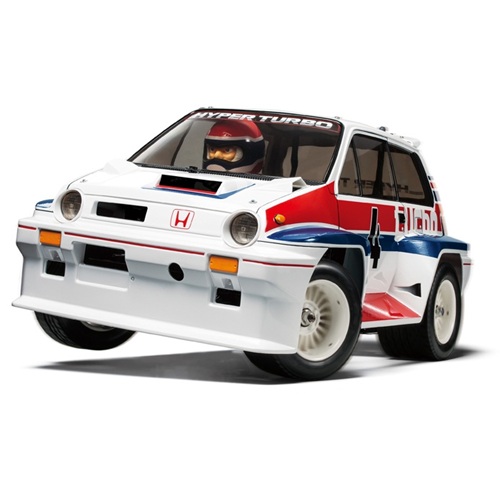

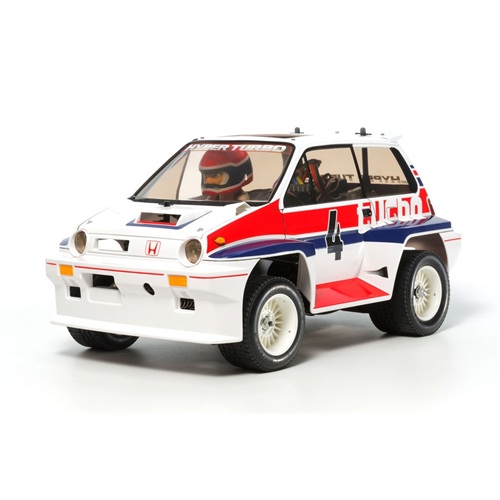

It is fitted with a Honda City Turbo body, which also includes a comical driver figure.
WR-02C

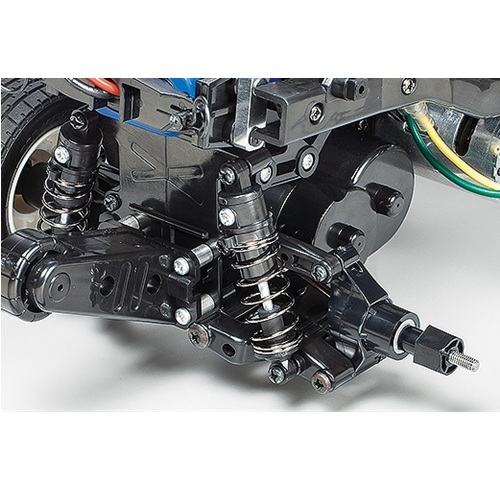

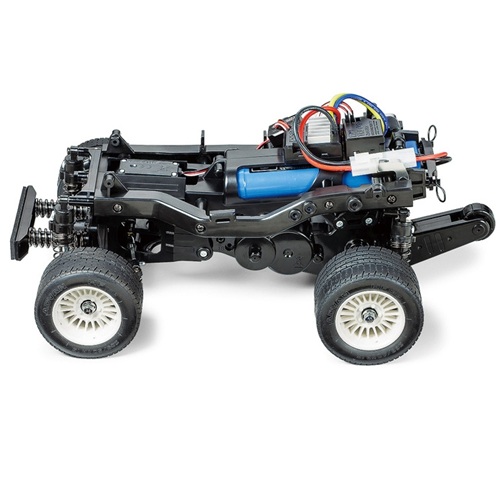

The WR-02 chassis features a 2WD drivetrain with fully independent double wishbone suspension.

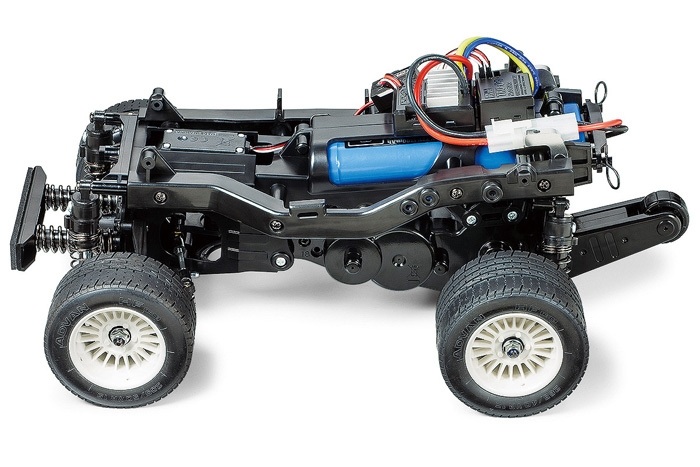

The 185mm wheelbase WR-02C chassis utilizes a sturdy monocoque frame which encompasses and protects the gearbox, enhanced by side members.
The gear differential unit housed inside the sealed gearbox receives its power from the centerline-mounted motor and passes it on to the rear wheels.

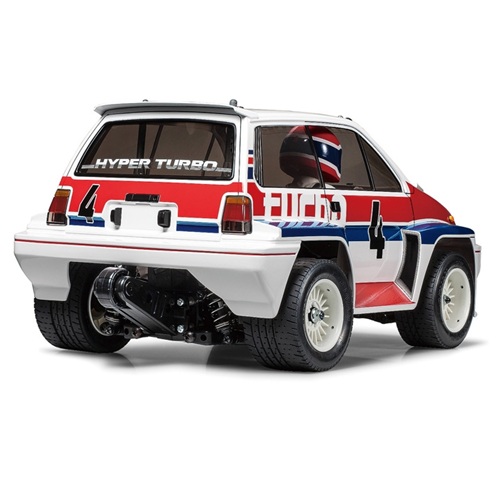

A longitudinal position for the battery pack contributes to the model's optimal weight distribution to ensure that when the City Turbo accelerates in a hurry, it performs a dynamic and thrilling wheelie, cushioned by the wheelie roller bar to ensure that the car doesn't topple over.
The steering servo is also positioned along the centerline of the chassis, using a 2 tie-rod setup for straightforward handling.

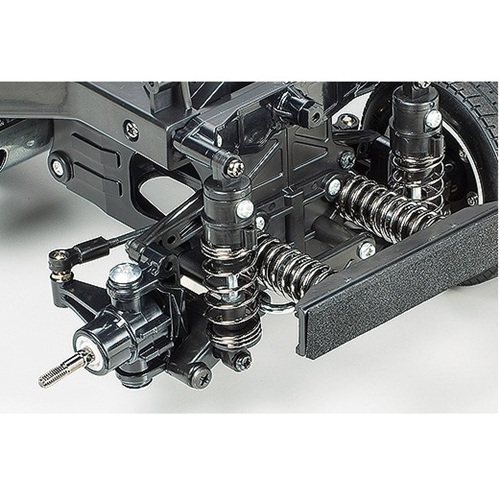

The model also features a 4-wheel independent double wishbone suspension for a smooth ride.
For ease of assembly, the gearbox and motor come pre-assembled.
- Length: 345mm, Width: 210mm, Height: 165mm
- Wheelbase: 185mm
- Tread: 165mm (Front), 170mm (Rear)

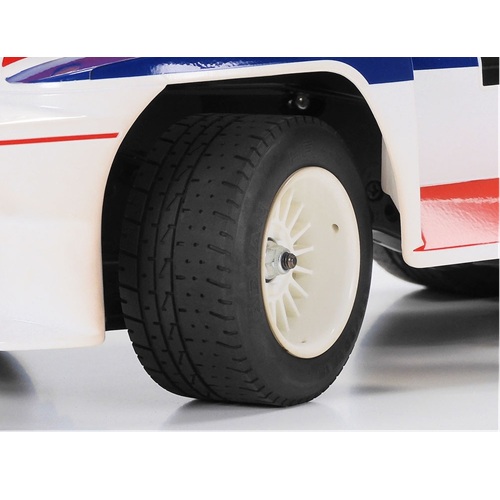

- Tire Width/Diameter: 35/70mm (Front), 42/70mm (Rear)
- Resin Monocoque Frame
- Rear-Wheel 2WD.
- 4-Wheel Double Wishbone Suspension
- Front/Rear Friction Dampers
- 2-Piece Steering Tie Rod
- 3-Bevel Differentials
- Gear Ratio: 16.5:1
- Includes 540-Type Torque Tuned brushed motor and ESC.
- Required to complete: 2-channel radio, steering servo, 7.2-7.4volt battery with compatible charger and Tamiya paint. |
