| Lightweight ESC with Advanced Cooling Power

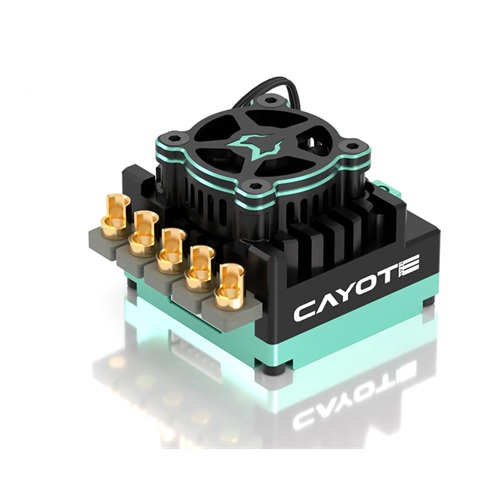

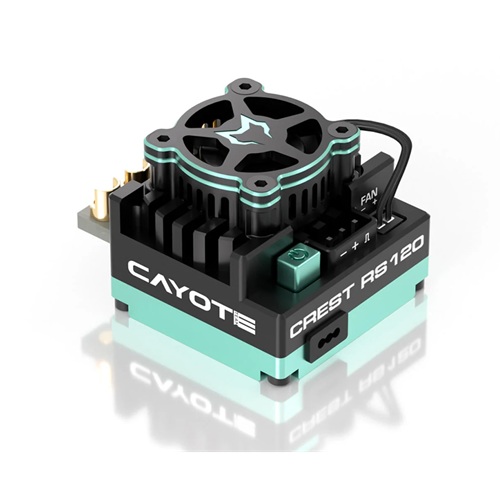

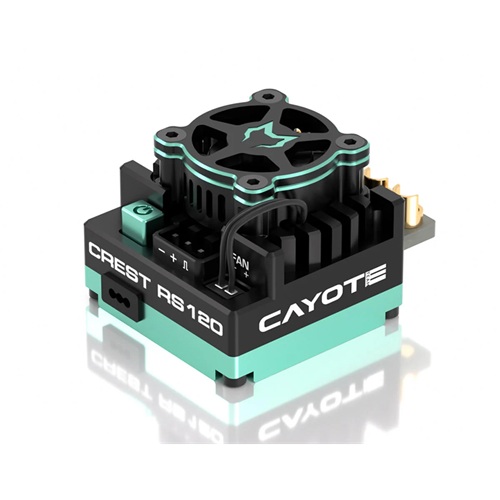

The Cayote Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC is engineered for serious RC racers seeking peak performance in a lightweight, compact package. Weighing just thirty-six grams, this ESC combines smart design with powerful output, making it ideal for competitive 1/10 drifting or professional stock class racing. Tailored presets for various race types simplify setup, while advanced cooling technology ensures efficiency and durability. Whether you're navigating off-road challenges or racing on smooth tarmac, the Crest RS120 delivers consistent, high-performance control.
About the Crest RS120 Brushless ESC
Optimized Performance Across Race Modes
The Crest RS120 features three distinct race presets: Stock Racing Blinky Mode for compliance with no-advance timing rules, a 1/10 Off-Road Mode for truck and bumpy terrain applications, and a 1/10 On-Road Mode for high-speed asphalt action. Each mode is pre-calibrated to deliver tailored power curves, enhancing drivability and control. These profiles remove the guesswork and let racers focus on performance.
Advanced Cooling & Technology
Utilizing innovative ultra-thin, windowed cooling N-MOS technology, the Crest RS120 integrates its chip core directly with the metal housing. This engineering feat reduces thermal resistance by 35%, resulting in improved heat dissipation and maintaining 98% energy efficiency. The compact design eliminates bulky heat sinks, allowing for a slimmer ESC that runs cooler and lasts longer, even under demanding race conditions.
Precision Tuning & Data Feedback
With built-in features like adjustable RPM limiting, offline data recording, and independent drag brake and brake frequency control, the Crest RS120 is all about customization. Users can fine-tune their setups in 0.5K increments and analyze performance data via the Cayote BTune ESC Bluetooth Module (CYECBM01 - sold separately) or Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) with the Cayote APP. This level of precision ensures better handling and strategic insight for competitive drivers.
Features:
- Stock Racing Blinky Mode
- 1/10 Off-Road and On-Road Race Presets
- 120A continuous output current
- Ultra-lightweight at 36 grams
- Cooling N-MOS technology with 35% reduced thermal resistance
- 98% energy efficiency
- Adjustable RPM limit
- Offline data recording for performance analysis
- Independent drag brake and brake frequency control
- High-performance CNC alloy fan system
Includes:
- (1) Crest RS120 1/10 Stock 120A Sensored Brushless Competition ESC
- Instruction Manual
Specifications:
| Suggested Application |
1/10 Touring Car, Buggy, Drift, Stock Class Racing |
| Motor Type |
Brushless - Sensored/Sensorless |
| Input Voltage |
2S LiPo (7.4V) |
| Continuous Current |
120A |
| Peak Current |
600A |
| Dimensions (LxWxH) |
1.39x1.20x0.96in (35.3x30.5x24.5mm) |
| Weight |
1.27oz (36g) |
| Motor Limits: |
|
| 540/3650 |
>10.5T |
| BEC Voltage |
6.0/7.4V |
| BEC Continuous Current |
5A |
| BEC Peak Current |
8A |
| Motor Connector |
Solder |
| Battery Connector |
Solder |
| Motor Wire |
- |
| Battery Wire |
- |
| Throttle Wire |
- |
| Programmable |
Yes, with Cayote Xlink Program Box* |
*Tech Note: The Cayote Xlink Multifunction LCD Program Box (CYECPB01 - sold separately) is required to read the data. Optionally, you can also use the Cayote BTune 1/10 ESC Bluetooth Module (CYECBM01 - sold separately) to connect to the Cayote Team App and set the parameters and update the firmware. |
