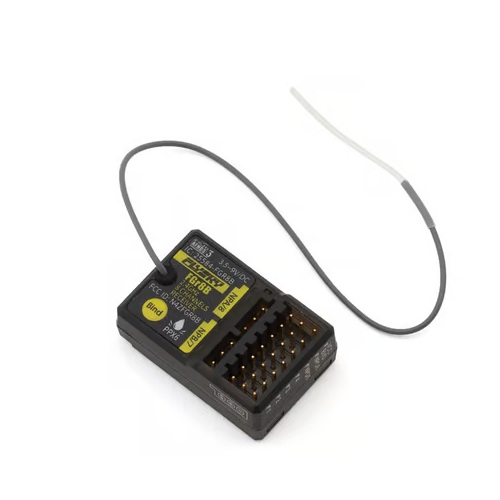

| The FGr8B 8-Channel Receiver is designed for use with AFHDS3 digital system protocol. This compact receiver features advanced technology, including bi-directional transmission and a waterproof level of PPX7, making it a reliable choice for both land and water applications. With its single external antenna and versatile Newport function interfaces, the FGr8B is capable of adapting to various input or output signal types, providing flexibility for a wide range of setups.
Additionally, the FGr8B receiver is equipped with built-in BVD battery voltage detection and supports compatibility with all transmitters or RF modules that operate with the AFHDS3 protocol. It's engineered for high performance and durability, ensuring smooth and responsive control in challenging environments.
Features:
- Eight-channel receiver designed for AFHDS3 protocol systems
- Waterproof level PPX7 for enhanced durability
- Supports bi-directional and unidirectional transmission
- Single external antenna for stable signal reception
- Newport function interfaces for customized input/output signals
- Built-in BVD battery voltage detection
Compatible Transmitters:
- PL18EV
- PL18EV lite
- PL18
- PL18 lite
- EL18
- FRM303
- NB4 Pro
- NB4
- NB4 lite
Specifications:
- Application: Surface
- Frequency: 2.4GHz
- PWM Channels: 8
- RF Protocol: AFHDS3
- Input Power: 3.5-9V/DC
- Waterproof: PPX7
- Dimensions: 1.37x0.91x0.51in (35x23.3x13mm)
- Weight: 9.4g
Includes:
- (1) FGr8B 8-Channel Receiver
|
