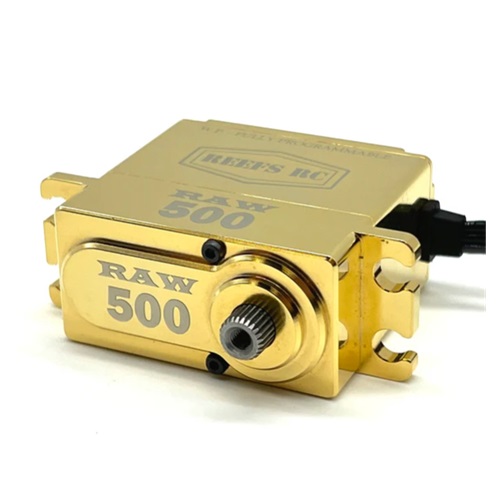

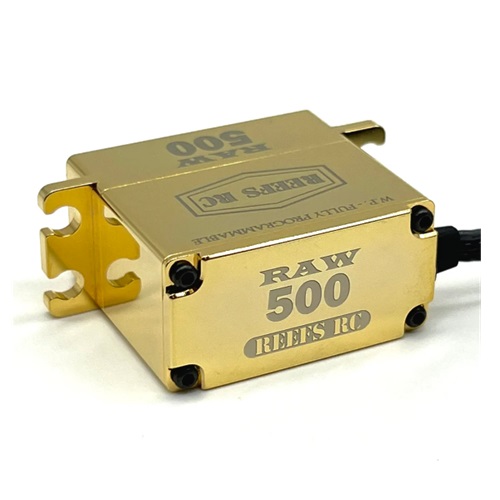

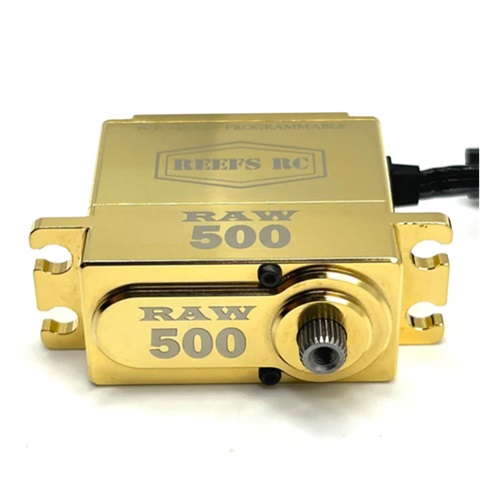

High Torque High Speed Brushless Servo
- SUBMARINE WATERPROOF: 7 Point Seals
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- REEFS LINK required for Programming
- Voltage 4.8V - 8.4V / Bearing Type: 2 Ball Bearings
- Internal: Steel Gears / CNC Brass Casing with ULTRA Finish
- Weight: 5.2oz / 145.2G

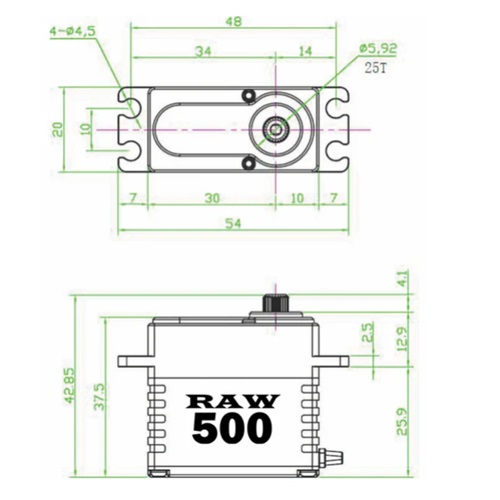

- Dimension: 1.57 x .79 x 1.5 (LWH)
- Torque: 450oz @ 6v/ 500oz @7.4v/ 565oz @8.4v
- Speed: .11sec @6v/.095sec @7.4v/.08sec @8.4v
- Spline: 25T / Dead Band Width: 2¦Ìs
- BEC Not Req. Recommended for max performance.
- Unload Current: 320mA @ 6.0V / 360mA @ 7.4V / 400mA @ 8.4V
- Loading Current: 4000mA @ 6.0V / 4300mA @ 7.4V / 4600mA @ 8.4V
|
