With up to 179 oz of torque, this brushless micro servo packs one heck of a punch. It's smart too, which allows you to program this servo for either standard servo or winch duty with our optional programmer.
SPECIFICATIONS:
- High Torque High Speed
- BRUSHLESS Servo / Winch FULLY PROGRAMMABLE
- Magnetic Angle Sensor
- Pulse Width Modulation Control
- Voltage 6-8.4 / Internal: Metal & Steel Gears
- CNC Aluminum Casing / Bearing Type: 2BB
- Temp Rate: -15C°~ +70C
- Weight: .74oz / 21g

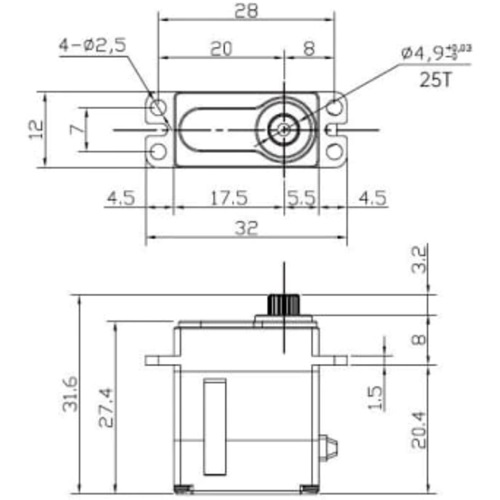

- Dimension: (LWH)
.90 x .47 x 1.08 in
23 x 12 x 27.5 mm
Torque:
135 oz @ 6.0v
159 oz @ 7.4v
179 oz @ 8.4v
Speed:
.09 sec @ 6.0v
.07 sec @ 7.4v
.06 sec @ 8.4v
Spline: 25T Micro
Dead Band Width: 2¦Ìs
Unload Current:
150mA @ 4.8V
180mA @ 6.0V
240mA @ 7.4V
300mA @ 8.4V
Load Current:
1600mA @ 4.8V
2000mA @ 6.0V
2200mA @ 7.4V
2400mA @ 8.4V
For programming, the USB Link is required. |
