NOTE: Not recommended for use on the Mini-B or Mini-T.
We recommend the Micro 179.

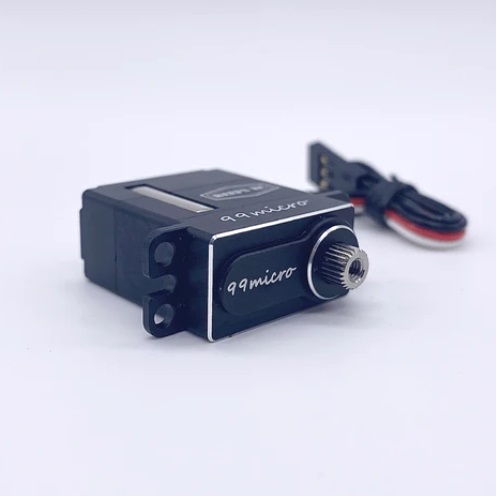

179 Smart Brushless Micro Servo – Reefs RC
SPECIFICATIONS:
High Torque High Speed Micro Servo
WATERPROOF
Voltage: 6v-8.4v
Internal: Precision Metal Gears / All CNC Alum. REEFS Case
Bearing Type: 2BB
Weight: .70oz
Dimension: .90 x .47 x 1.08 (LWH)
Torque: 89oz @ 6.0v / 99oz @ 7.4v / 115oz @ 8.4v
Speed: .11sec @ 6.0v / .09sec @ 7.4v / .08sec @ 8.4v
Spline: 25T Micro / Dead Band Width: 2¦Ìs / BEC Not Required
Unload Current
200mA @ 4.8V
350mA @ 6.0V
450mA @ 7.4V
550mA @ 8.4V
Loading Current (Max Stall Current)
1600mA @ 4.8V
2000mA @ 6.0V
2200mA @ 7.4V
2400mA @ 8.4V |
