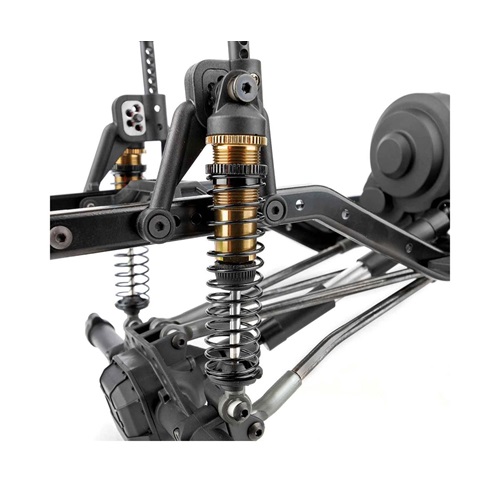

The Element Enduro Builders Kit 2 features added features and updated materials that make it an ideal platform for your next custom build. The Builder's Kit 2 includes the upgraded GKS shock towers in front and rear that allow the ability to adjust shock angle, droop, and vehicle ride height without affecting spring preload. Matched with the shock mount inserts are ultra-smooth Factory Team bronze shocks with black caps and collars - perfect for picking off crazy lines in rough terrain. Along with the updated shock towers, the GKS aluminum track bar mount is included to make the front suspension more rigid and flex-free with a more precise steering feel. The suspension package is finished off with updated Factory Team 12.3” wheelbase high-clearance links and low-friction Delrin pivot balls, which are more resistant to abrasion and friction wear.
Combine these updated features with the revolutionary Stealth X transmission that allows the ability to adjust the front and rear drive ratios independently with 5.7% or 11.83% overdrive ratios, and the BTA behind the axle steering. With these high performance features packed in one box, the Enduro Builder's Kit 2 is better than ever and is the perfect platform for your next custom build.

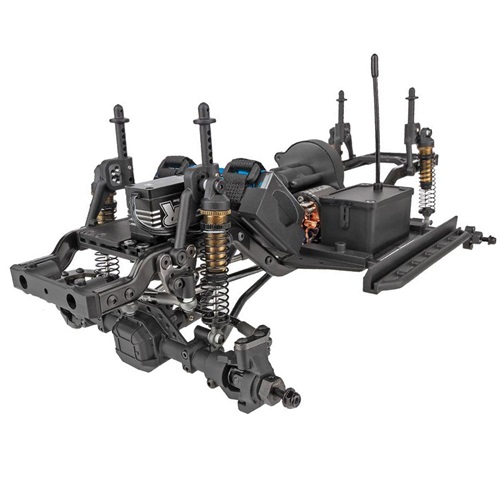

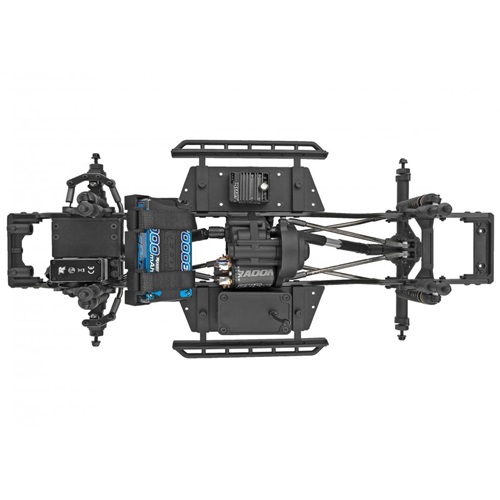

NOTE: Assembled chassis shown in photos is for illustrative purposes only. This is a kit that requires assembly and additional components. See needed to complete list below for a list of items required to complete the model.
- Solid axle front suspension
- Universal front drive axles
- One-piece rear axle design
- Behind-the-axle (BTA) steering
- Aluminum steering plates
- Integrated servo winch mount
- CMS (Chassis Mounted Servo)
- Stamped steel frame rails
- Adjustable bumper mounts
- Enclosed water-resistant receiver box
- Injection-molded adjustable width rock sliders
- Threaded aluminum shock bodies
- Aluminum motor plate
- Optimized ball cups for more fluid axle articulation
- Telescopic driveshafts front and rear
- Extruded aluminum driveshaft splines

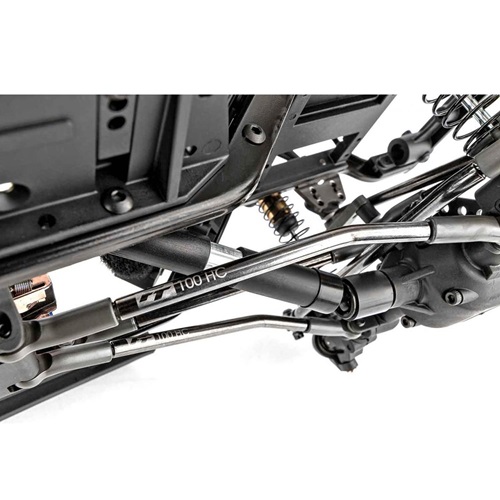

- 5mm heavy duty FT high clearance links
- Machined input pinion gear
- Metal ring gear
- Machined steel top shaft
- Metal ball bearings included
- Steel 25T servo horn
Specifications:
Scale: 1:10
Power: Electric
Length: 462mm (18.2”)
Width (without body): 236mm (9.3”)
Weight: varies
Wheelbase: 313mm (12.3”)
Drive: 4WD
Needed to Complete:
- 1:10 scale 540-size electric motor
- 1:10 scale electronic crawler speed control
- 7.4V – 11.1V LiPo with "shorty" or “standard” battery dimensions
- Battery charger (for the battery type chosen above)
- 2-channel surface transmitter
- 2-channel receiver
- 48-pitch pinion gear
- Steering servo
- 313mm (12.3") Wheelbase Body and paint
- Wheels with 12mm hex mounting
- Tires
- Tools for Assembly
|
