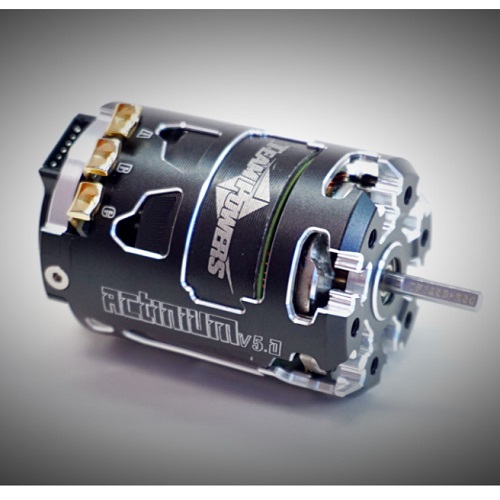

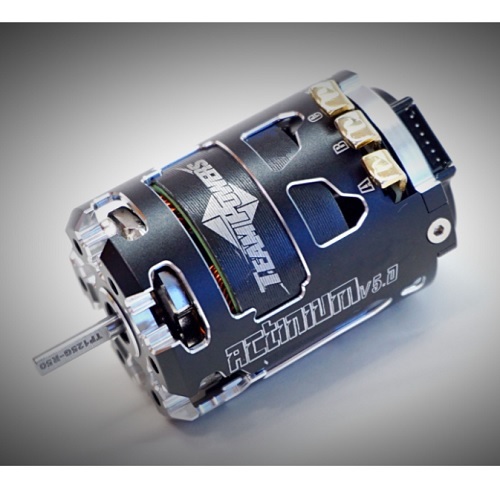

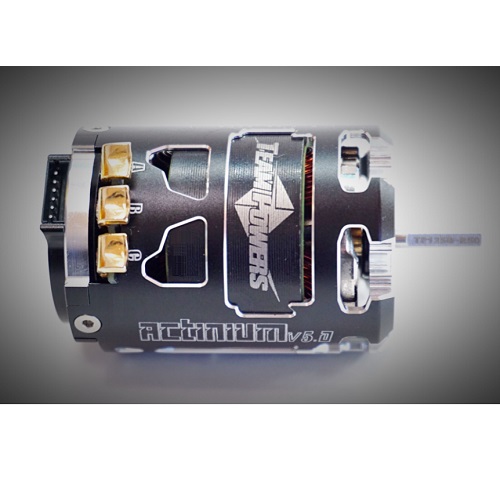

Enhancements based on the Actinium V4 motor:
- Revised assembly design for improved sensor accuracy.
- Revised stator plate profile with 3 screws holes sealed to improve magnetic field consistency and efficiency.
- Traditional three long assembly screws replaced with short screws mounted to side of the end bell.
- Copper wiring purity increased for minimized resistance. Hand wound for maximum accuracy and efficiency.
- Revised rotor magnetic material for improved strength, efficiency and extend the fade out time.
- Motor can machining profiles slightly revised from V4 to enhance convection cooling.
- Collector ring machined from proprietary alloy resulting in minimal resistance and maximum heat dissipation.
Specifications
- Based on IFMAR/ROAR/EFRA/BRCA design specifications.
- Modified winds, 13.5T, 17.5T, 21.5T motors are all ROAR approved ( BRCA pending).
- Motor Dimensions (Diameter x Length) 35.8mm x 52.2mm.
- Shaft Diameter: 3.17mm
- Magnet Dimensions
12.3 x 5x 24.2mm(3.5T~9.5T),
12.5 x7.2x25.2mm (10.5T~21.5T),
12.3 x7.2x25.2mm (25.5T)

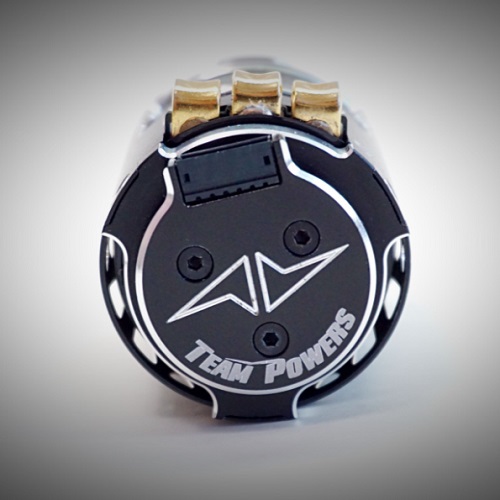

Variable timing end bell
- Weight: ~150g (varies between turns)
- Recommended RC Model Car: 1/10 Scale Race Vehicles
Available Turns: 4.5T, 5.5T, 6.5T, 7.5T, 8.5T, 9.5T, 10.5T, 13.5T, 17.5T, 21.5T |
