| Standard Digital Servo with Soft Start, 0.14sec / 100oz @ 6V

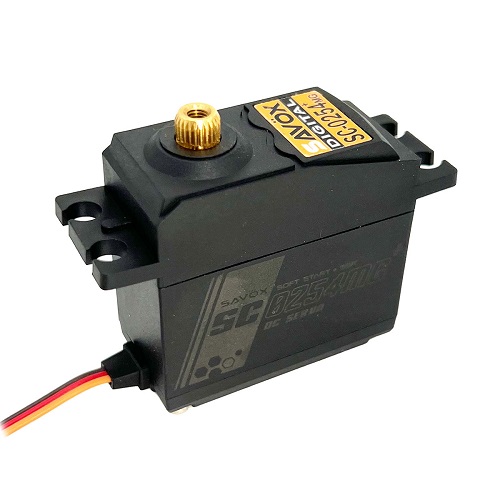

The Savox SC-0254MG is a high torque, metal-geared, digital, standard servo. A great replacement for standard, plastic-geared servos with less torque.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:
- Metal gear train ensures durability under harsh situations.
- Higher torque output than standard servos.
- Ideal for 30-60 size aircraft, and some car appliations.
Specifications:
- Torque @ 4.8v - 6.9kg/86.1oz-in
- Torque @ 6v - 7.2kg/100.0oz-in
- Speed @ 4.8v - 0.19 sec/60 deg
- Speed @ 6v - 0.14 sec/60 deg
- Dimensions L x W x H (mm): 40.7 x 19.6 x 39.4
- Weight: 49.0g
|
