Reedy SC480X Program Card

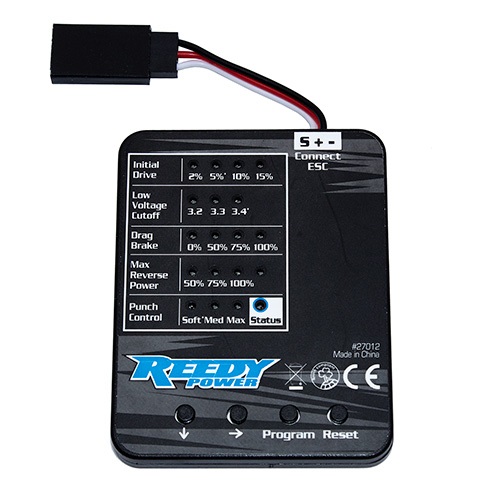

The pre-programmed default ESC settings work very well in most situations, but if you want access to additional settings for fine-tuning, you can do so using optional Program Card (#27034). The following settings can be changed using the Program Card: Initial Drive: Throttle applied the moment the trigger is moved from the neutral position to the throttle range. Low-Voltage Cutoff: The cell voltage at which the ESC will shut off to protect the battery. Drag Brake: The brake force applied when the throttle trigger is returned to the neutral position. Max Reverse Power: The maximum reverse speed allowed relative to the forward speed. Punch Control: The aggressiveness of the application of throttle.
