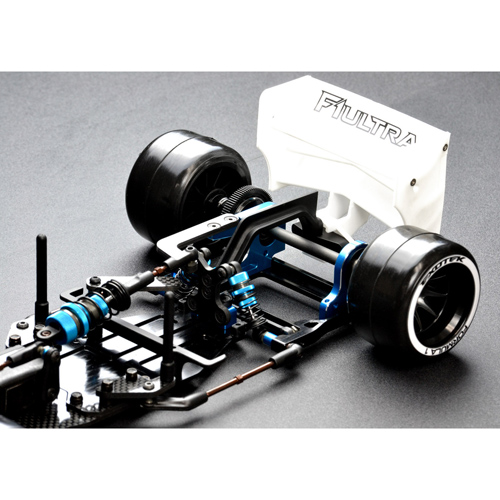

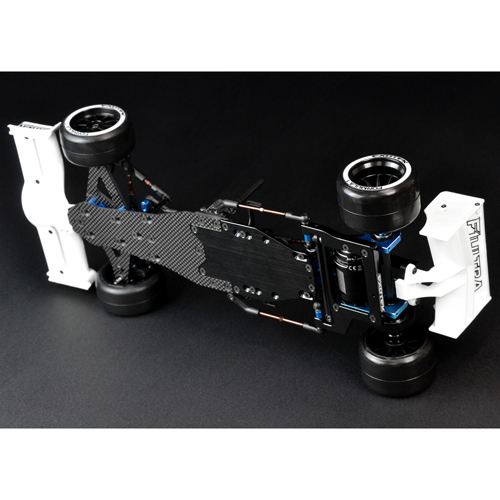

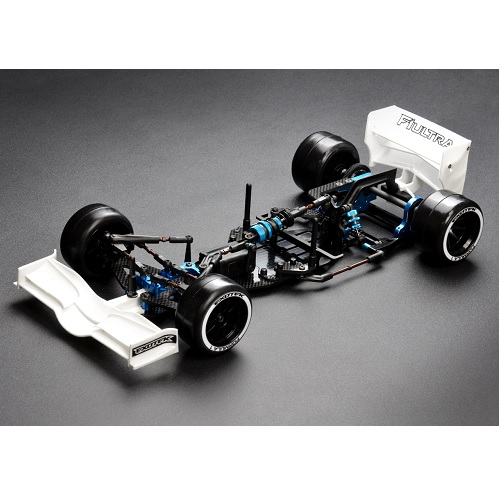

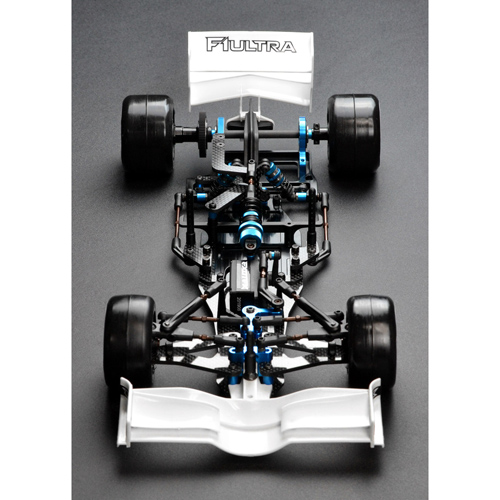

F1 Ultra Formula Car Kit 1/10 F1ULTRA
More Images Click


Car Kits > F1 Kits
Maker:
Exotek View more
Part Number: F1R4
Our Price: $377.99
Quantity: Coming Soon !!
Free Shipping !!


Description

Winner of the 2020 Roar Carpet Nationals and 2019 Protoform Cup!


This has been a passion project we’ve been working on for many years and also our very first full kit release! After years of adding innovation to other F1 kits we’ve figured it was time to release our own kit incorporating cutting edge patented chassis technology with high quality components and features you’ve grown to expect from Exotek.  Importantly we didn’t just redesign a 1/12 chassis to be an F1 car, we have designed the F1ULTRA to be an F1 chassis from the ground up. You will appreciate the details we've designed in to maximize rubber tire grip as well as add extra durability that these very unique cars require.

The Exotek F1ULTRA is loaded with high-performance innovations that features;

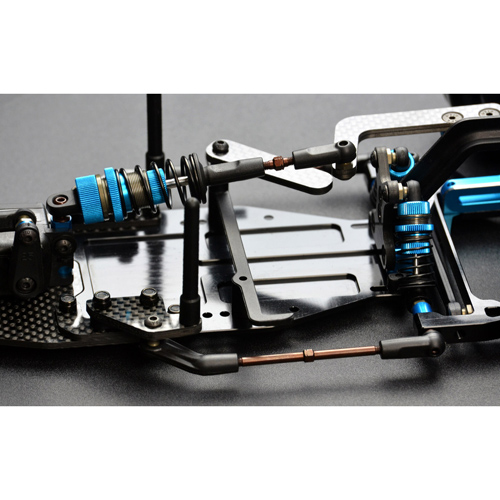

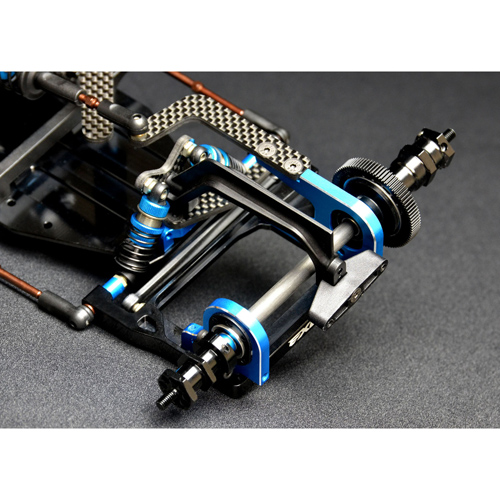

-Patent APPROVED floating rear pod suspension system. Provides unmatched rear traction needed for rubber tire F1 racing. Because the rear suspension generates so much rear traction you are able to use more aggressive front tires which translates to greatly improved lap times and full race length consistency.

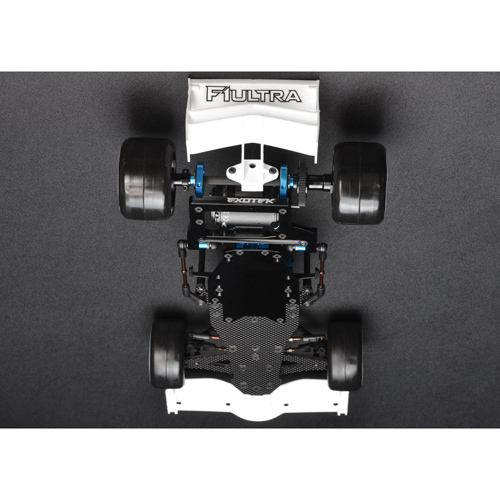

-Extra narrow chassis (only 72mm wide) for improved ground clearance and faster corner speeds

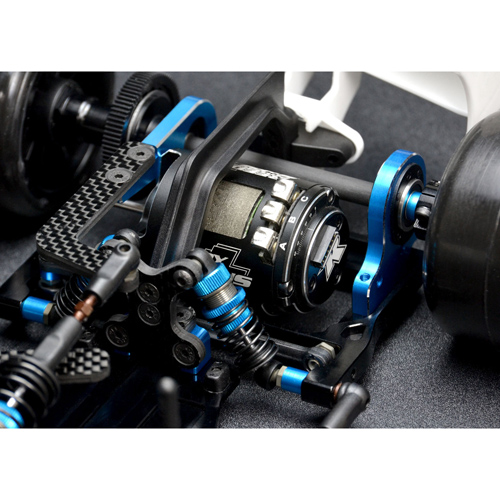

-Ultra smooth sealed micro shocks for maintenance free rear pod tuning and only 3.8gr each including the oil!

-Micro shocks includes 3 tuning spring sets for low, medium and high grip tracks

-Innovative double spring top 'clutch' shock uses an additional internal spring to provide increased forward bite

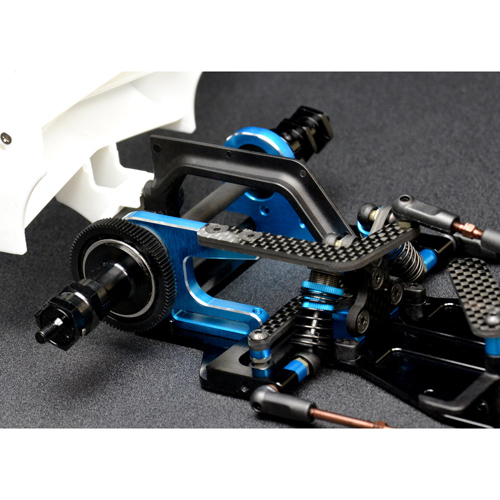

-Chassis mounted, lightweight rear wing mount. Simple and elegant design that increases the overall rear grip

-Extra long, heavy duty no flex side links. The longest links of any F1 car provides less rear pod angling (less rear bump steer) as the rear tires travel up and down for improved high speed consistency

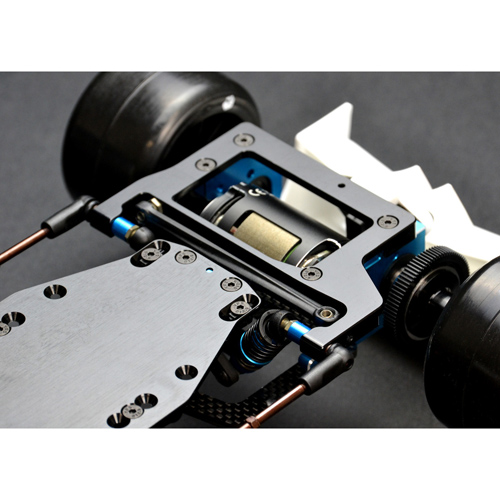

-One piece, heavy duty, machined alloy rear pod. Provides tweak free racing, extra traction and improved motor cooling

Heavy duty oversized 1/4" rear axle bearings. Much much stronger than typical smaller standard 1/4" pan car bearings.

-One piece heavy duty machined alloy front bulkhead provides rock solid front suspension mounting

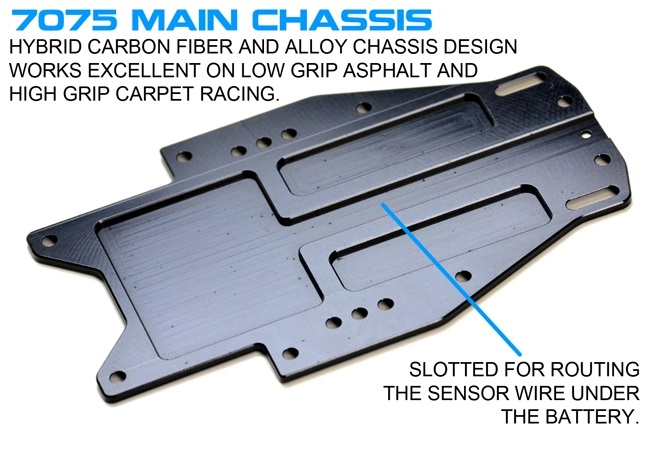

-Two piece hybrid chassis is optimized to work on all track conditions including low grip asphalt and high grip black carpet.

-Long and short wheelbase adjustment for large and small tracks.

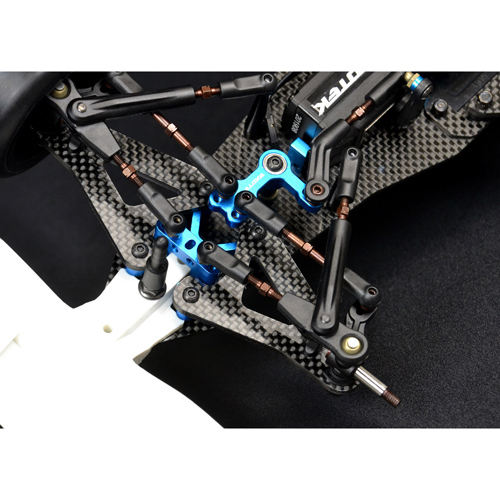

-Machined alloy precision steering rack and post included

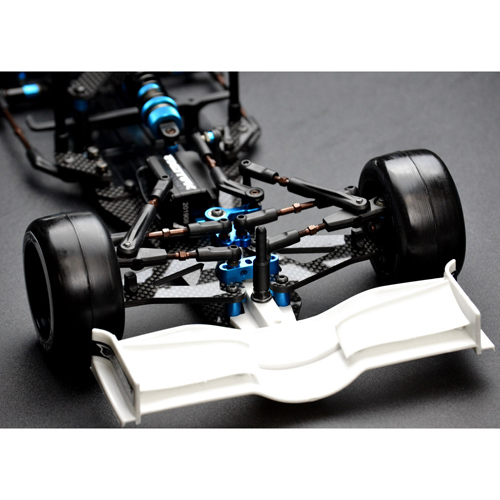

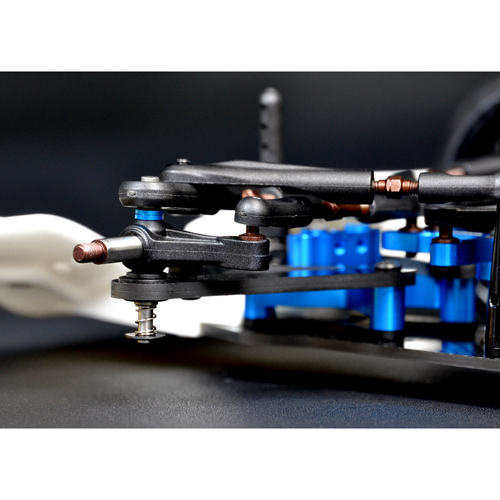

-Easy adjust front camber and caster turnbuckle system means no clumsy 'camber inserts' to deal with for quick and precise adjustments without even the need to remove the body

-6 sided turnbuckles for easier turnbuckle wrench access (uses 4mm wrenches)

-Extra heavy duty 3mm thick front arms for tweak free racing

-Super smooth and lightweight pro ball diff included that uses 1/12th style spur gears and diff parts

-Secure shorty lipo tray with carbon lipo tab for easy lipo access

-Open rear pod design makes for easier tweak free motor wire routing

-High quality premium metric YFS screws used throughout

-New extra heavy duty steel rear ball diff axle included

-Lightweight, high visibility, high downforce, adjustable rear wing included

-Can be used with aftermarket F1 gear diffs or spools (1/4" axles etc) and 1/12 spur gears

The tires, lipo and motor shown are not included.

Compatible with these modern 1/10 F1 race bodies such as Exotek #1997, MonTech F18 / F17, Bitty Type-6 etc.







More Images

Click image to Enlarge(+)
Parts List
Sort By Category New Items Maker
In-Stock Items Only
$10.95
$8.99
Exotek ( 96214 )
F1ULTRA Precision Ground Diff Rings W/ 12 Balls 96109 96214
$7.95
$6.29
Exotek ( R4007 )
F1ULTRA 1/4 HD Rear Axle Bearings, 2
$26.95
$22.99
Exotek ( 1963 )
F1ULTRA HD Wing Mount, Alloy And CF
$15.95
$13.59
Exotek ( 1965 )
F1ULTRA Front Spacer Set, CF Ride Height Spacers
$16.99 Exotek ( 1967 )
F1ULTRA HD Lipo Cup, Carbon Fiber And Alloy
$19.65
$14.49
Exotek ( 1968 )
F1ULTRA Brass Wing Mount, 10gr
$29.95
$22.99
Exotek ( 1995 )
F1ULTRA Hd Steel Axle, Steel Ball Diff Axle
$37.95
$28.99
Exotek ( 2062 )
F1ULTRA Front Sway Bar Set
$39.95
$30.99
Exotek ( 2096 )
F1 Spool W/ 1/4 Carbon Axle And Right Hub
$5.95
$4.59
Exotek ( 2097 )
F1ULTRA Metal Suspension Clip, 6 Pack
$17.99 Exotek ( 2134 )
F1ULTRA Carbon Brace Set, Chassis And Wing
$35.95
$26.99
Exotek ( 2211 )
F1ULTRA Titanium Rear Axle, Lightweight Ball Diff Axle
$5.95
$4.59
Exotek ( 2248 )
5.8mm Delrin Suspension Ball With Cup
$9.95
$8.29
Exotek ( 2255 )
HD Alloy 5.8mm Suspension Pivot Cup, 7075
$15.95
$12.99
Exotek ( 2300 )
F1ULTRA +2mm FRONT ARM, 1 arm, for the F1Ultra series
$26.99 Exotek ( R4000 )
F1ULTRA Alloy Chassis
$46.95
$31.99
Exotek ( R4001 )
F1ULTRA Carbon Chassis
$11.99 Exotek ( R4002 )
F1ULTRA Carbon Side Wing And Brace Plates R4002 R4016
$3.95
$3.59
Exotek ( R4005 )
F1ULTRA Nylon Body Posts- R4005 R4092
$13.59 Exotek ( R4012 )
F1ULTRA Carbon Tower And Lipo Tab R4012 R4097
$25.99 Exotek ( R4017 )
F1ULTRA Alloy Front Bulkhead
$7.99 Exotek ( R4020 )
F1ULTRA Alloy Arm Posts, 2
$22.95
$17.99
Exotek ( R4021 )
F1ULTRA Alloy Left Clamping Hub
$4.59 Exotek ( R4022 )
F1ULTRA Nylon Lipo Cup Set R4022 R4085
$5.95
$4.59
Exotek ( R4025 )
F1ULTRA Nylon Cam Set R4025 R4026 R4027
$9.99 Exotek ( R4029 )
F1ULTRA Alloy Rear Tower Mount
$8.29 Exotek ( R4031 )
F1ULTRA Alloy Servo Mount Set R4031 R4091
$16.99 Exotek ( R4032 )
F1ULTRA Alloy Steering Crank
$4.59 Exotek ( R4033 )
F1ULTRA Alloy Steering Post
$12.95
$10.99
Exotek ( R4034 )
F1ULTRA Steel Front Axle, 2
$7.99 Exotek ( R4036 )
F1ULTRA Nylon Steering Hub Set R4036 R4065
$5.95
$4.59
Exotek ( R4040 )
F1ULTRA Front Pivot Set, 1 Set R4040 R4041 R4042
$4.95
$3.69
Exotek ( R4040X4 )
Pivot Cups, 4pcs R4040
$15.95
$13.59
Exotek ( R4060v2 )
F1ULTRA Carbon Front Arm V2
$7.29 Exotek ( R4062 )
F1ULTRA Carbon Link Plate
$5.39 Exotek ( R4063 )
F1ULTRA Steel Steering Pins, 2
$10.99 Exotek ( R4064 )
F1ULTRA Alloy Left Pod Plate
$31.99 Exotek ( R4081 )
F1ULTRA Alloy Rear Pod Plate
$7.95
$6.59
Exotek ( R4095 )
F1ULTRA Nylon Wing Mount And Strut
$9.99 Exotek ( R4098 )
F1ULTRA Carbon Shock Pod Plate
$16.99 Exotek ( R4099 )
F1ULTRA Alloy Motor Plate
$20.99 Exotek ( R4120 )
F1ULTRA Right Diff Hub And Cap R4120 78361
$22.99 Exotek ( R4133 )
F1ULTRA Rear Axle Differential Shaft V2
$9.95
$8.29
Exotek ( R4502 )
F1ULTRA R5 Alloy Caster Posts, 2pcs
$24.95
$19.99
Exotek ( R4510 )
F1ULTRA R5 Right Diff Hub And Cap R4510 R4510C
$14.95
$11.99
Exotek ( R4511 )
F1ULTRA Ball Diff Internals 80530 80893 96108 96111 96113
$3.49 Exotek ( R4522 )
F1ULTRA Nylon Spacers R4035 R4089
$8.99 Exotek ( 1713 )
F1ULTRA Top Spring Set, Medium, Soft, Extra Soft
$33.95
$24.99
Exotek ( 2063 )
F1ULTRA Front Damper Tube Sets
$5.95
$4.59
Exotek ( R4045 )
F1ULTRA Top Shock Seals R4045 R4055 R4052 R4053 R4121
$5.39 Exotek ( R4047 )
F1ULTRA Top Shock Shaft & Piston R4048 R4047 R4044
$9.95
$7.29
Exotek ( R4050 )
F1ULTRA Nylon Shock Parts R4050 R4056 R4070 R4071 R4076 R4100
$13.95
$11.99
Exotek ( R4051 )
F1ULTRA Alloy Top Shock Parts R4051 R4054 R4058 R4057
$5.39 Exotek ( R4069 )
F1ULTRA Micro Shock Shaft & Piston R069 R068 R067
$4.95
$4.59
Exotek ( R4072 )
F1ULTRA Micro Shock Seals R4072 R4074 R4075 R4080
$11.99 Exotek ( R4077 )
F1ULTRA Alloy Micro Shock Parts R4077 R4078 R4073 R4079
$12.95
$11.99
Exotek ( R4518 )
F1ULTRA Micro Spring Set, R4066 R4123 R4123
$14.95
$10.99
Exotek ( 2157 )
F1R4 Light Alloy Ball Ends (4), Use For Steering Links Only
$13.95
$11.99
Exotek ( R4037 )
F1ULTRA Steel Ball Stud, 4
$6.95
$6.39
Exotek ( R4038 )
F1ULTRA Nylon Arm Set R4038 R4086 R4093
$6.95
$5.39
Exotek ( R4039 )
F1ULTRA Steel Turnbuckles 3x24, 2
$3.95
$3.79
Exotek ( R4043 )
F1ULTRA Nylon Ball Cups, 6
$14.95
$12.99
Exotek ( R4061 )
F1ULTRA Alloy Ball Nuts V2, 6
$7.95
$6.29
Exotek ( R4082 )
F1ULTRA Steel Turnbuckles 3x58, 2
$6.95
$5.39
Exotek ( R4083 )
F1ULTRA Steel Turnbuckles 3x36, 2
$4.95
$4.59
Exotek ( R4084 )
F1ULTRA Nylon Pod Link, Offset Ball Cup Set R4084 R4088
$8.95
$7.29
Exotek ( R4014 )
F1ULTRA Alloy Spacers Set R4014 R4116 R4028
$39.95
$30.99
Exotek ( 1997 )
F1ULTRA F1 Body, Lightweight 1/10
$15.59 Exotek ( 2071 )
F1 Front Wing Extra Light, 1/10 Size For Most 190mm Style F1 Chassis
$21.95
$16.99
Exotek ( 2072 )
F1 REAR Wing Extra Light, 1/10 Size For Most 190mm Style F1 Chassis
$39.95
$30.99
Exotek ( 2128 )
F1ULTRA 23 F1 BODY, lightweight
$24.95
$17.59
Exotek ( R4517 )
F1 Front Wing, Black
$39.95
$30.99
Exotek ( 2021 )
F1ULTRA Caster Doodles, 1 Pair
