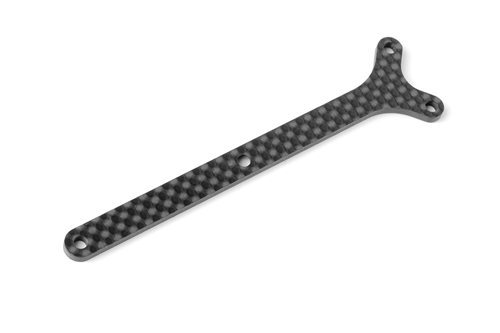

X1 19 Graphite Top Deck 2.5mm

Restocked Items

Parts > Chassis Parts

Maker:

Xray

Part Number:

376232

Our Price:

$18.59

Quantity:

Only one left !!

We have a live inventory system.
This item is in stock and ready to ship.

Technical Data

Unique top deck allows adjustment of longitudinal flex.

There are three longitudinal flex possibilities: top deck with tightened nut, top deck with loosened nut, or no top deck.

Thanks to this new flex adjustment feature, the car can be easily set for different traction conditions or tires.

The top deck with tightened nut eliminates longitudinal chassis flex and makes the car easier to drive in high-traction conditions or when softer tires are used. The top deck increases steering response, but at the same time is more forgiving as it makes the car more precise.

The top deck with loosened nut is a compromise between very little and a lot of longitudinal flex. This setting is recommended on medium traction conditions as it makes the steering response a bit less but improves mid-corner steering and provides better on/off power feeling.

Using no top deck is recommended for low-traction tracks as it provides greatest mid-corner steering.

The top deck features also hole which allows mounting the shock adaptor when the long-shock configuration is used.

Compatiblity

XRAY X1 - 2019 - 1 / 10 Formula
