ULP ALU Progressive Shock System - Set (2)

Restocked Items
Shocks > Shock Parts
Maker:
Xray View more
Part Number: 308029
Our Price: $35.99
Quantity: Out of stock

Compatiblity
XRAY T4 - 2018 Specs - Graphite ChassisXRAY T4 - 2019 Graphite Chassis KitXRAY T4 - 2019 Aluminum Chassis KitXray T4 2020 - Graphite Edition - 1 / 10 Electric TouringXray T4 2020 - Aluminum Edition - 1 / 10 Electric TouringXRAY T4F - 1/10 Electric TC FWDXRAY T4 2021 - 1 / 10 Electric TCXray X4'23 - 1 / 10 TC - GraphiteXRAY X4'24 - 1 / 10 TC - Graphite

Description

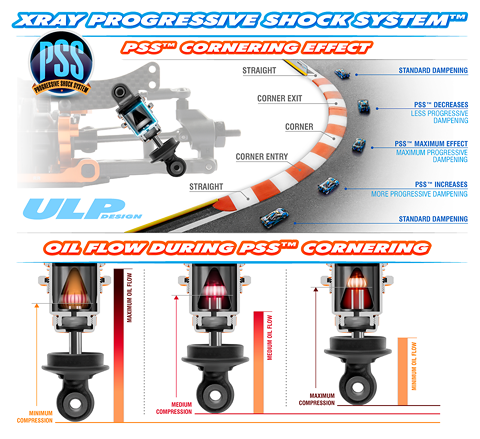

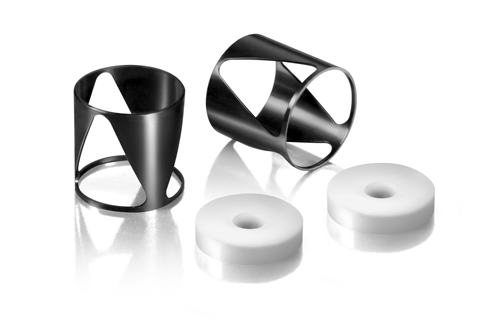

 Innovative progressive shock system for ULP touring car shocks for improved traction and steering characteristics. Shock insert has 3 triangle cuts and is used with piston without holes. The hardness of the shock is influenced not by the holes in the piston but with the insert. The insert is mounted into the shock with wider surface on the bottom of the shock and narrower on the top.


When the piston is at the bottom of the shock, it moves softer and dampening becomes harder when the piston is going to the top. This means that the shock dampening is softer in the first part of movement and becomes harder when the car is moving more. The shock inserts must always be used with pistons without holes, must be used both front & rear, and only on asphalt. The same oil is used in these insert-equipped shocks as with standard shocks. The inserts are CNC-machined from premium Swiss 7075 T6 aluminum, and are black coated. The pistons are molded using special processes & composites to ensure roundness, while maintaining maximum stiffness and durability. The pistons are additionally precisely grinded.
