Features:
- Compact, low-profile design
- Water and dust resistant
- Aluminum mid-case
- Powerful coreless motor
- Ultra-precise metal gears
- Dual ball bearings
- High-voltage compatible
For touring cars and the latest generation 2WD and 4WD buggies

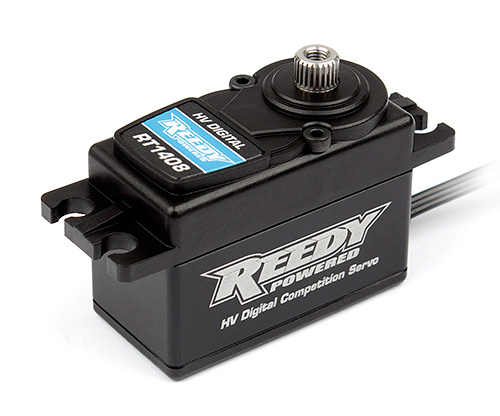

Reedy's HV Digital Low-Profile Competition Servos are race-proven and engineered for use in both touring cars and the latest generation 2WD and 4WD buggies. Precision metal gears, powerful motors, and an advanced microprocessor improve vehicle control while an integrated aluminum mid case lowers operating temperatures for fade-free operation.
High voltage compatibility means that increased ESC BEC output voltage can be used without fear of damaging sensitive internal components.
A choice of hi-torque (#27109) and hi-speed (#27108) models make Reedy's HV Digital Low-Profile Competition Servos the logical choice for a variety of racing classes and s levels.
| SPECIFICATIONS |
| Input (V): |
6.0V - 7.4V |
| Speed (sec/60deg.), 6.0V: |
0.10 |
| Speed (sec/60deg.), 7.4V: |
0.08 |
| Torque (kg-cm), 6.0V: |
11.8 |
| Torque (kg-cm), 6.0V: |
11.8 |
| Torque (kg-cm), 7.4V: |
14.3 |
| Dimensions (mm): |
39.5 x 20.0 x 30.5 |
| Weight (g): |
53.0 |
| Spline: |
25 |
|
