XR10 Pro Stock Spec ESC (1S) (New)

7 users are watching this auction.

## Auction Rules & Policies ##

***** Automatic Bid Extension (Anti-Sniping) *****
-	Extension Rule: Any bid placed within the final 5 minutes of an auction will automatically extend the closing time by an additional 5 minutes.
-	Example: If the auction is scheduled to end at 8:00 PM and a bid is placed at 7:58 PM, the new end time will be 8:05 PM.
-	Maximum Extension: Up to 30 minutes total.

***** Bidding Transparency (Difference from eBay) *****
-	No Proxy Bidding: We do not use "hidden" or "maximum" automatic bidding.
-	Direct Bidding: The amount you bid becomes the current price immediately.
-	Example: If you enter a bid for $200.00, the current bid will instantly jump to $200.00.

***** Payment Terms *****
-	Deadline: Payment must be completed within 5 days of the auction's end.
-	Penalties: Failure to pay will result in the cancellation of your winning bid, and a 30-day suspension from participating in future auctions.

More Images Click

Motors / ESC > ESC

Maker

Hobby Wing

Item Code

30112751

Name

XR10 Pro Stock Spec ESC (1S)

Condition

New

Buy it now

$119.99

Technical Data

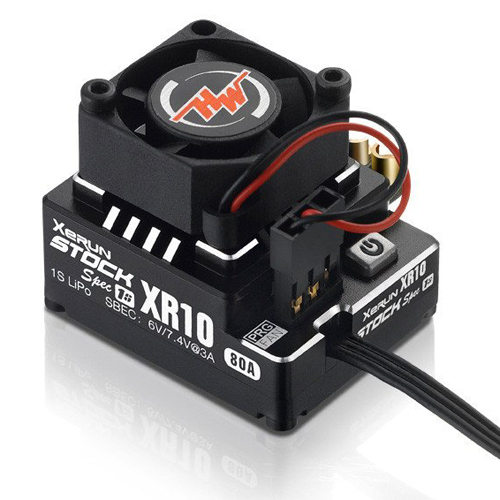

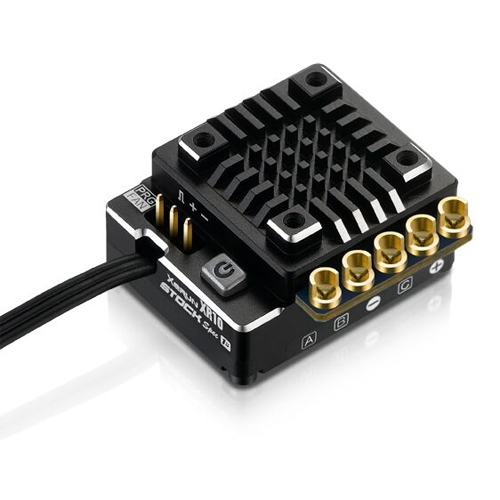

XR10 PRO Stock Spec 1S Sensored Brushless ESC
The XR10 PRO Stock Spec 1S ESC is very light at only 28.5g and features the super internal BEC with a maximum output of 6A and adjustable voltages between 6V and 7.4V. This will allow the use of a variety of servos without the use of an external a receiver pack. The adjustable brake and PWM frequencies allow you to fine tune your ESC to suit your driving style and track conditions and is adjustable with the optional programmer card or the WiFi express module.

Description

Current Continuous: 80A

Burst: 380A

Battery: 3-4S NiMH, 1S LiPo

Built-in BEC: 6V/7.4V Adjustable, Continuous Current of 3A (Switch-mode)

Motor Supported: Sensored and sensorless brushless motors

Suitable Motor: 1S LiPo, T>= 10.5T

Application: STOCK class:1/10, 1/12 1S application

Cooling Fan: Powered by the stable BEC voltage of 6V/7.4V (20x20x8mm)

Wires: 14AWG-200mm

Size: 31.6 x 25.8 x 16.2mm

Weight: 23.5g
