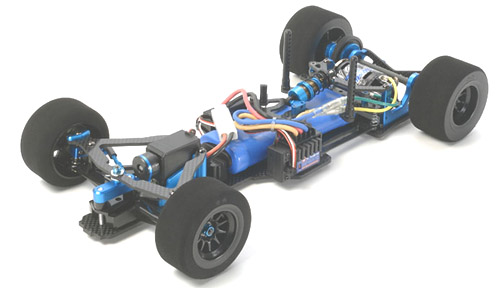

This is the new TRF101 chassis kit designed for the ultimate Formula One R/C racing enthusiast. The data collected from TRF team member experience has provided this enhanced F1 chassis the best possible performance potential.

Based on the F104 Ver.II chassis, it has a longitudinal battery position, and features a carbon lower deck and lower brace. The rear suspension features a center pivot ball and L/R side links with pitch and roll dampers. Small adjustments can be made to the suspension with the use of different viscosities of oil and spring hardness.

The front suspension features a new one-piece carbon upper arm design which helps heighten cornering performance. A longitudinally-mounted positioned servo (must use low profile servo) enables precise steering feel, while the pivot-ball link rear suspension features 3 side link attachment positions for increased setting positions. Components such as integrated differential housing and carbon rear shaft, a wide aluminum motor mount and differential joints positioned closer to the chassis center were designed with feedback from the TRF (Tamiya Racing Factory) team

Set contents:

• 3mmThick Carbon Lower Deck
• 3mmThick Carbon Lower Brace
• 3mmThick Carbon Body Mount Plate
• 2.5mm Thick Carbon Front Upper Arm
• 2mm Thick Carbon Motor Mount Rear Plate
• Battery Plate
• Aluminum Motor Mount
• Aluminum Diff Housing A
• Aluminum Clamp Type Wheel Hub (L)
• Aluminum Suspension Mount
• Aluminum King Pin Mount
• Aluminum Servo Mount
• Carbon Rear Shaft integrated with Diff Housing B
• TRF Damper (HL Cylinder + Titanium Coated Shaft)
• High-Efficiency Roll Damper
• Hi-Torque Servo Saver
• Aluminum Horn for Hi-Torque Servo Saver
• Adjustable Metal Steering Uprights
• Aluminum Finned Motor Spacer
• Aluminum Turnbuckles
• 04 Module Spur Gear (96T)
• 04 Module Hard Coated Aluminum Pinion Gear (24T)
• Fluorine Sealed Ball Bearings
• Tungsten Carbide Diff Balls
• Titanium Coated King Pins

Specification

• Scale : 1/10
• Construction type : assembly kit
• Terrain use : on-road
• Drive-train : 2WD
• Drive type : pinion to spur gear
• Drive line : solid axle
• Differential type : ball pressure plate
• Suspension : front kingpin coil spring independent suspension/solid axle rear
• Steering mechanism : direct servo
• Shock damper : oil-filled damper
• Shock damper material : aluminum
• Tire type : not included
• Tire tread : n/a
• Body material : not included
• Chassis material : carbon fiber plate
• Electronic Speed Control (ESC) : not included
• ESC model : n/a
• LED Light buckets : no
• LED lights : no
• Motor : not included
• Bearings : shielded ball bearing
• Adjustable camber : yes
• Adjustable toe angles : front only
• Adjustable ground clearance : yes
• Adjustable gear ratio : yes
• Adjustable wheelbase : fixed
• Adjustable track width : fixed
• Adjustable shock angle : yes
• Special feature 1 : Features newly-designed rear carbon shaft, stoppers, motor mount, links & main chassis
• Special feature 2 : Uses aluminum HL roll friction damper and TRF damper for pitch and roll
• Special feature 3 : Rear suspension links may be positioned in 3 settings
• Special feature 4 : Carbon fiber front upper A-arm
• Special feature 5 : Adjustable aluminum front steering uprights
• Special feature 6 : New Aluminum diff housing and left hub carrier
• Special feature 7 : Low-profile servo and standard size servo may be used
• Special feature 8 : 1.5 and 2.5 camber angle adjustment
• Special feature 9 : Aluminum servo horn
• Special feature 10 : Carbon axle
• Requires A : 2-channel radio gear
• Requires B : 7.2 battery & charger
• Requires C : polycarbonate paint
• Requires D : wheels, tires, body set, motor, esc
