EXO-SIX Chassis Conversion For EVO6
More Images Click
Car Kits
>
Conversion Kits
Maker:
Exotek
View more
Part Number:
1539
Our Price:
$144.95
Quantity:
Out of stock
Free
Shipping !!
Technical Data

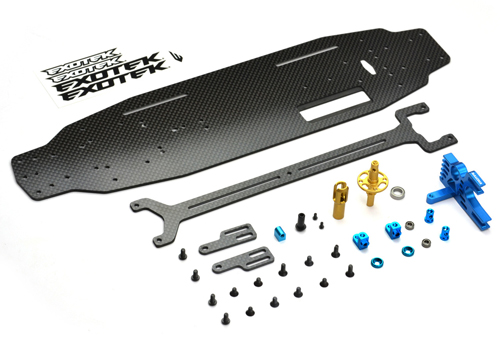

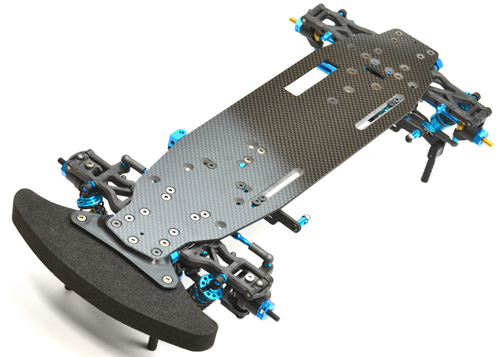

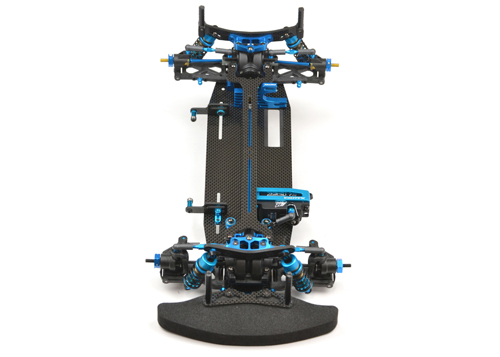

EXO-SIX chassis conversion
Download instructions here.
From the creators of the first narrow lipo chassis for modern r/c touring cars!

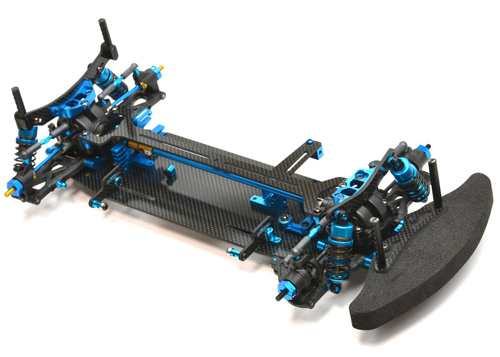

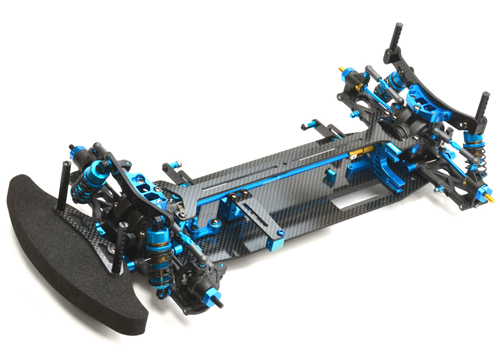

Premium "inline motor" lipo conversion for the Tamiya EVO6. This will be the car to have in the competitive stock touring and VTA classes!
Also compatible with the TB04 (v1 and v2) if this conversion is combined with
#1538 EXOTEK EXO-SIX/TB04 PARTS PACK.
This conversion will be a "stocker" thanks to key features such as

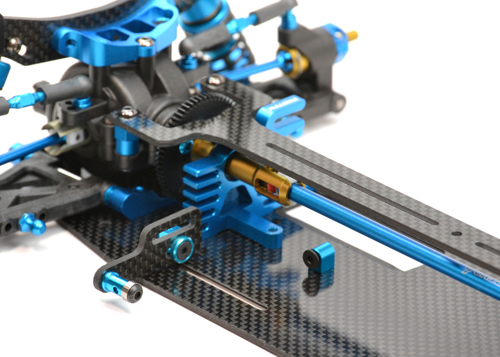

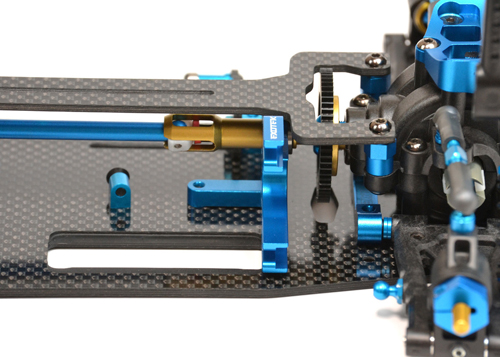

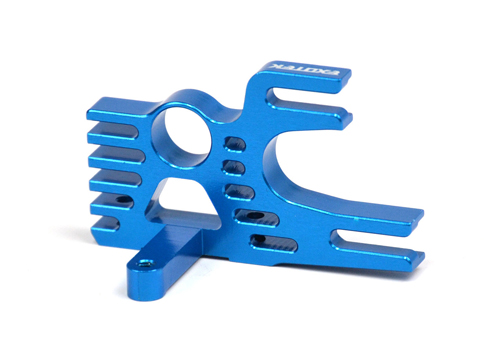

- New inline motor mount plate eliminates 1 of the 3 EVO6 gearboxes for improved top speed and motor efficiency and reduced weight.
- Motor plate with centrally mounted and triangulated base insures solid motor mounting and superb gear mesh while independent of the top plate to reduce tweak and provide better top plate flex traits.
- Stiffer than the stock chassis. Well suited for higher grip, bigger event, track conditions.
- 2.25mm thick USA made premium QUASI weave chassis and top plate for superb flex traits for rubber tire racing.
- Ultra narrow chassis layout for reduced chassis scrub. Only 86mm wide!
- Motor placement is positioned on the left side of the chassis to induce better on power stability. Torque steer? What is that!
- The motor position has been moved further back to improve high speed steering but also low speed stability.
- Slotted motor mount allows quicker and easier motor install and removal and easy pinion changes.

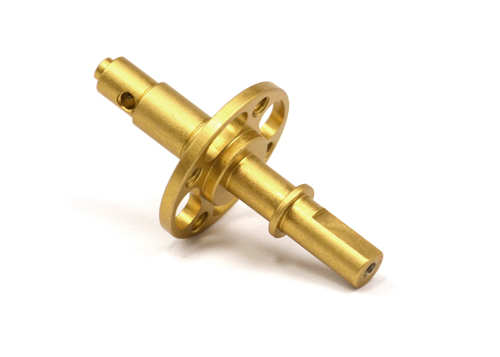

- New one piece, hard anodized, spur mount/ input shaft eliminates the play and vibration of the stock unit. No loose pinned spur gear or e-clips!
- New hard anodized center shaft drive cup uses a Tamiya cvd puck (TRF417 V5 Swing Shaft Cap #51536) for reduced wear and quieter drive line.

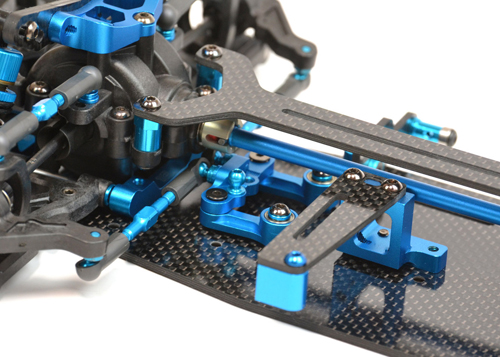

- Lipo cradle system with adjustable sliding holders (forward or back or in or out) for preferred weight balance.
- Battery holders accepts full 7.4v lipo packs or 7.4v shorty style packs.
- Battery holders uses strapping tape.
- The outside of the holders uses micro bearings to hold the battery in- this allows the chassis to flex laterally naturally without becoming tweaked by the battery. As the chassis flexes the bearings can roll against the battery instead of getting caught on the battery like standard cups.
REQUIRED
Tamiya EVO6
OR Tamiya TB04 & Exotek
#1538 EXO-SIX/TB04 Parts Pack
TRF417 V5 Swing Shaft Cap #51536
Battery strapping tape
Compatiblity
TB04 Pro Chassis Kit - TB04
,
TB EVO.6 Chassis Kit - TB EVO 6
,
TB04 PRO II Chassis Kit - TB04
,
TB Evo.6 MS Chassis Kit - TB EVO6
