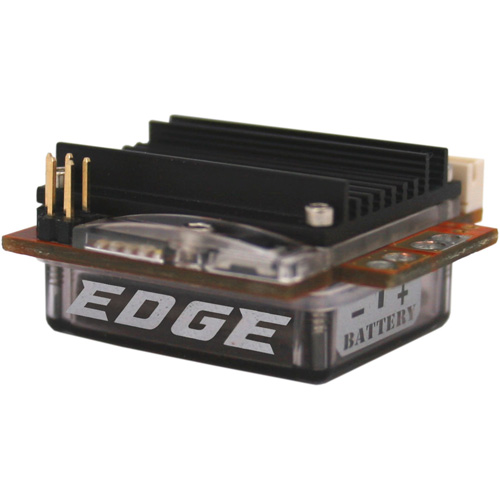

| Novak EDGE 2S Brushless ESC Tamiya/Bullet |
|
|
|
|
More Images Click
|
|
| Technical Data |
|
|
Has small footprint, Great for F1 chassis
Ideal for all types of racing, including 2WD Short Course, Off-Road On-Road and Sportsman classes
12 adjus parameters
Voltage cut-off circuitry for LiPo and LiFe batteries
NovaBrakes offer smooth controlled braking under any condition
Compatible with all ROAR legal sensored 540 motors 10.5 turns and higher and all 380-size sensored motors
Meets ROAR Sportsman Class guidelines
One touch programming interface with five colored status LEDs
On board Hall sensor test checks operation of motor sensors
Thermal overload protection
120 day limited warranty through Novak ning at date of purchase

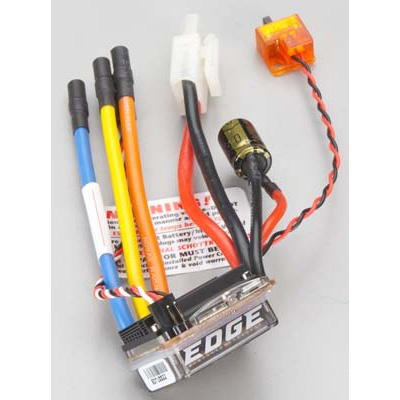

Include: Novak Edge 2S Brushless Sensored ESC with Tamiya Type Battery Connector and Instructions
Design: Sensor based

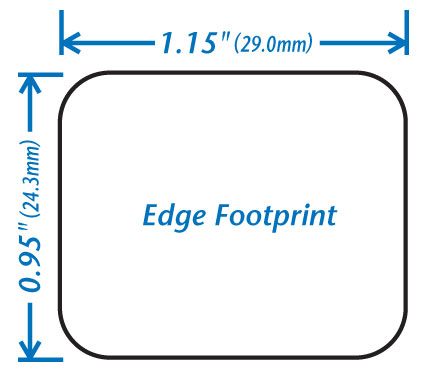

Size: 1.15 x 0.95 x 0.66" (29.0 x 24.3 x 16.8mm)
Weight: 0.69oz (19.5g) without wires
Input Voltage: 2S LiPo/LiFe cells or 4-7 NiMH cells (1.2V/cell)
Motor Limit: 540 (10.5T and higher) sensored brushless motor, all 380 sensored brushless motors
On-Resistance: 0.00057 ohms @25 trans. temp
BEC: 6.0V DC/2.0 amps
Status LEDs: Five
Voltage Cut-Offs: 6.25V (LiPo), 4.75V (LiFe)
Power Wires: 14G Super-Flex Copper-Strand Silicone Wire |
|
| Compatiblity |
|
|
Ferrari F60 (F104)
,
F104 PRO w/Body - F104
,
F103 / F103 GT
,
3RACING F109 F1-09 1/10 RC Formula 1 EP Car
,
F104X1 / F104W-GP
,
3RACING Sakura FGX 1/10 Formula 1 EP Car
,
HPI Racing F10
,
1/10 F104 Version II Chassis Kit
,
1/10 Scale RC High Performance Racing Car F113
,
F104V.2 Pro Chassis Kit (F104V.2 Dark Titanium w/Body)
,
1/10 TRF101 Chassis Kit
,
F104V.2 Pro Chassis Kit - F104V.2 Black Special
,
TRF101W Chassis Kit
|
